Product Details:
|
| Luminance(nits): | 500cd/㎡ | Viewing Angle: | H 178|V 178° |
|---|---|---|---|
| Display Colors: | 8Bit,16.7M | Response Time: | ＜＝6ms |
| Life(hrs): | ＞60,000(hrs) | Product Name: | 46 Inch 8mm Bezel BOE LCD Video Walls Display |
| Highlight: | 8mm Bezel LCD Video Wall Display,46 Inch BOE LCD Video Walls,8mm Bezel LCD Video Walls |
||

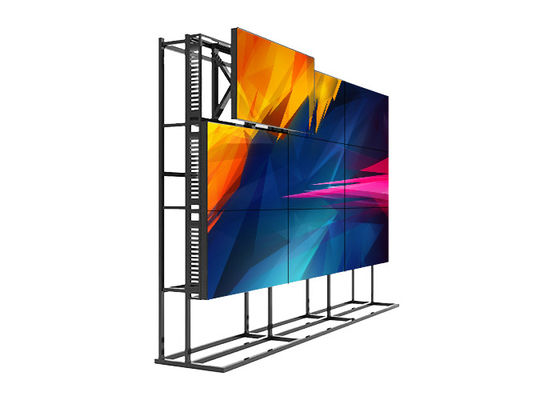

46 inch 8mm bezel BOE LCD video walls display
key features:
1, Ultra narrow frame design, the narrowest bezel is 0.88mm and the bezel can be optional.
2, Wall mounted,floor standing,floor standing cabinets and front push hydraulic Pop out optional.
3, The Front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interference;
4, Interfaces: 2xHDMI input,DP loop in,DP loop out,DVI input, VGA input,CVBS loop,USB,Switch,Power port;
5, Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
6, Working Temperature: 0°℃~50°℃.Working Humidity: 20%-80%;
7, Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop,restaurant;
8, Video wall screen with 1080P HDMI input daisy chain controller board;
9, HDMI splitter to combine the screens to a big wall;
10, Quality SPCC video wall racks for 55”lcd videowall with complete accessories.
11, 46 inch 8mm bezel BOE LCD video walls display
Installation methods for 46 inch 8mm bezel BOE LCD video walls display:
Technology specification :
| 40" BOE 8mm bezel | 500nits brightness,WLED Backlit,with 1080P HDMI input |
| System controller | 1 in 16 output HDMI splitter |
| Bracket | POP out bracket for 46" lcd video wall |
| Standard Accessories | English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector |
| Packing | 4/5 screens in 1 wooden case |
| Panel Specifications | |
| LCD Technology | Original BOE DID LCD |
| Active Screen Diagonal | 46" |
| Panel Dimension(WxH) | 1002.28*558.72 |
| Total Bezel Width | 8mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920*1080 |
| Backight System | WLED |
| Luminance(nits) | 500cd/㎡ |
| Contrast | 1500:1(typ.) |
| Viewing Angle | H 178|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | ＜＝6ms |
| Life(hrs) | ＞60,000(hrs) |
| MTBF | ＞100,000h |
| Surface | Anti-glare |
| Prodcut name | 46 inch 8mm bezel BOE LCD video walls display |
Our cases for LCD video walls display:
