Product Details:
|
| Input Interface: | HDMI X16 | Resolution: | Max Support 1920X1080P@60fps |
|---|---|---|---|
| Output Interface: | Built-in Audio X 1 | Video Code: | EVC /H.265 Or H.264 /AVC |
| Code Rate Control: | 16Kb/s~12Mb/s | Frame Rate: | 30 Frame |
| Audio Code: | AAC/MP3 Optional | ||
| Highlight: | 16 Channel HDMI Video Encoder,3U Rack HDMI Video Encoder,H.265 Digital TV Encoder |
||
16 Channel HDMI Video Encoder

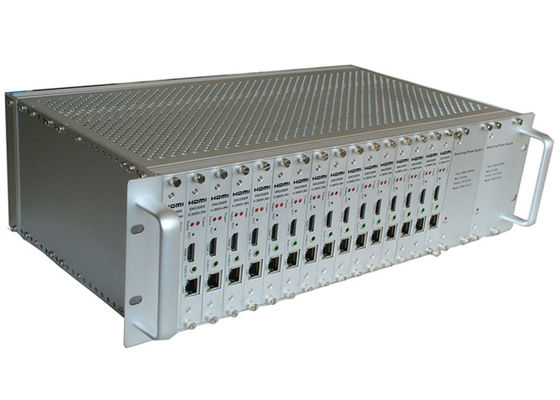

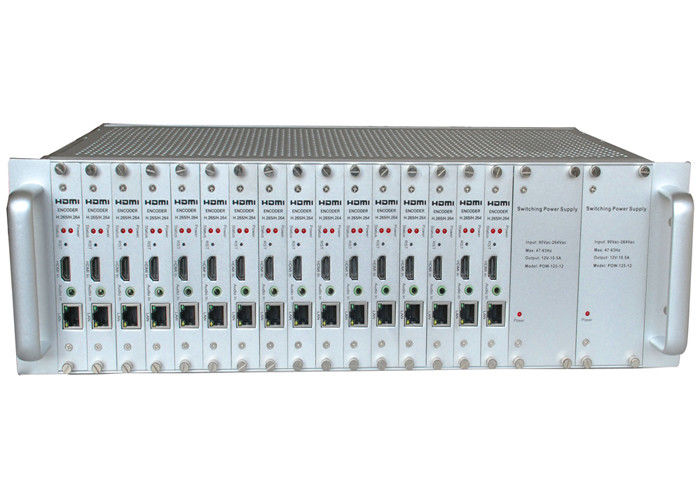

16 Channels HDMI Video Encoder -3U Rack
Overview:
The 16 channels HEVC H.265 /H.264 HDMI video encoder is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 16 channels HDMI and 16 channels stereo audio(3.5mm) input supporting HEVC /H.265 or H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and two video streaming output simultaneously each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS. Also there are 16 channels SDI loop out for local display. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
Features:
··· Support HEVC /H.265 or H.264 /AVC baseline /main /high profile encoding
··· Support MJPEG/JPEG Baseline
··· Audio coding support MPEG1 Audio Layer2
··· CBR/VBR/ABR code rate controlling , 16kbit/s-40Mbit/s
··· Support Network interface full-duplex mode 1000M
··· Support 1 channel HDMI input, also supports converting HDMI to VGA input
··· Support up to 720P, 1080P HD video input
··· Support image parameter settings
··· Support HDCP protocol and HD blue-ray
··· Support HTTP UTP RTSP RTMP ONVIF protocol
··· The WEB operating interface, configuration interface in Chinese and English are optional.
··· Authority management for WEB operating interface.
··· Support the double stream output
··· The main stream and the second stream can be transferred by different networking protocol
··· Support the setting for stream resolution.
··· Supports MP3 and AAC audio format selection
··· Support switching mono and stereo for audio output stream.
··· Support GOP frame rate settings
··· Support a click to restore the default configuration
··· Support decoding the set-top box
··· Low-power design
··· 3U high-grade chassis, with main power automatic switching function, which ensure the stability of the system.
Parameters :
|
Model |
WL-16HDMI |
|
|
Video |
Input interface |
HDMI x16 |
|
Resolution |
Max support 1920X1080P@60fps |
|
|
Output interface |
built-in audio X 1 |
|
|
Video code |
EVC /H.265 Or H.264 /AVC |
|
|
Code Rate control |
16Kb/s~12Mb/s |
|
|
Code Rate |
CBR/VBR 16Kbps-12Mbps adjustable |
|
|
Audio |
Frame rate |
30 frame |
|
Audio Code |
AAC/MP3 Optional |
|
|
Sampling rate |
uto |
|
|
Bit-rate Option |
32k,44.1K,48K,64K,96K,128K,160K,192K,384K |
|
|
Sampling Accuracy |
24 Bit |
|
|
Audio Data-rate |
64Kb/s to 384Kb/s |
|
|
Network |
Interface |
RJ45X16 10M/1000M Ethernet port |
|
Protocol |
HTTP, UDP/RTP, RTSP, RTMP, ONVIF, HLS, FLV |
|
|
Rate |
TS standard stream/ dual-stream |
|
|
Management |
Web opreation,remote upgrade |
|
|
Firmware Update |
Enable by uploading files to dashboard |
|
|
General |
Power |
AC 110V~220V |
|
Consumption |
5W/Channel |
|
|
Temperature |
0~ 45℃(for working),-20~60℃(for storing) |
|
|
Humidity |
＜90％,non-condensing |
|
|
Size |
83*300*130mm |
|
|
Weight |
8kg |
|
【Application】
IPTV
Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
NVR (Net Video Recorder)
Teaching / Campus Broadcast
Hotel TV System
Video Conference
Digital Signage
Recording System (Replace Video Capture Card)
