Product Details:
|
| Video Input: | HDMI*1 | Input Resolution: | 3840×2160@30HZ\2560×1600\2560×1400\2048×1536\2048×1080\1920 ×1400\1920×1200\ 1920× 1080\1600x1200\1600x900\1400x1050\1440x900\ 1360x768\1280x720\1280x800\1280x768\1024x768\1024x567\960x540\850 X480\800x600\720×576\720×540\720×480\720×404\704×576\640× 480\6 |
|---|---|---|---|
| Audio Input: | HDMI Built-in Audio*1; 1 Analog Audio*1 | Video Coding: | H.264 Baseline Profile H.264 Main Profile H.264 High Profile |
| Output Resolution: | 3840×2160@30HZ\2560×1600\2560×1400\2048×1536\2048×1080\1920 ×1400\1920×1200\ 1920× 1080\1600x1200\1600x900\1400x1050\1440x900\ 1360x768\1280x720\1280x800\1280x768\1024x768\1024x567\960x540\850x480\800x600\720×576\720×540\720×480\720×404\704×576\640× 480\64 | Video Code Rate: | CBR/VBR,16Kbps-12Mbps Adjustable |
| Video Frame Rate: | 25/30 Frame | Power Supply: | 12V/DC 1A |
| Power Consumption: | <7.5W | ||
| Highlight: | H.264 HDMI Video Encoder,7.5W HDMI Video Encoder,H.264 HDMI Encoder |
||
H.264 HDMI Video Encoder
H.264 HDMI Encoder
Introduce:

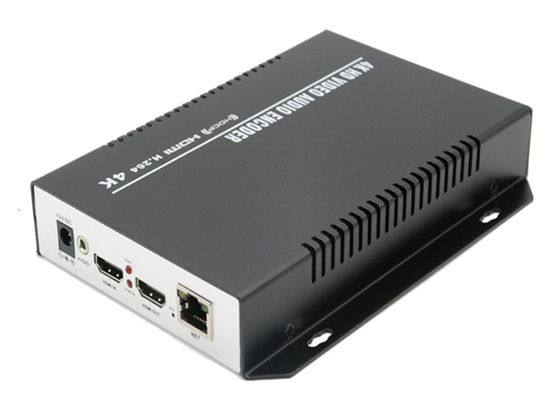

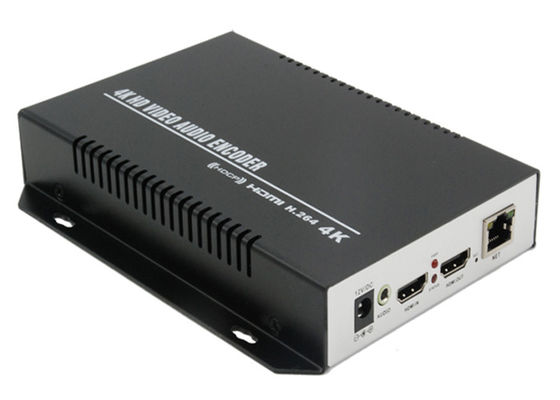

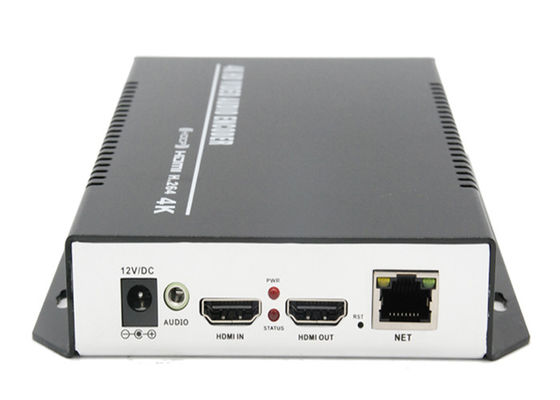

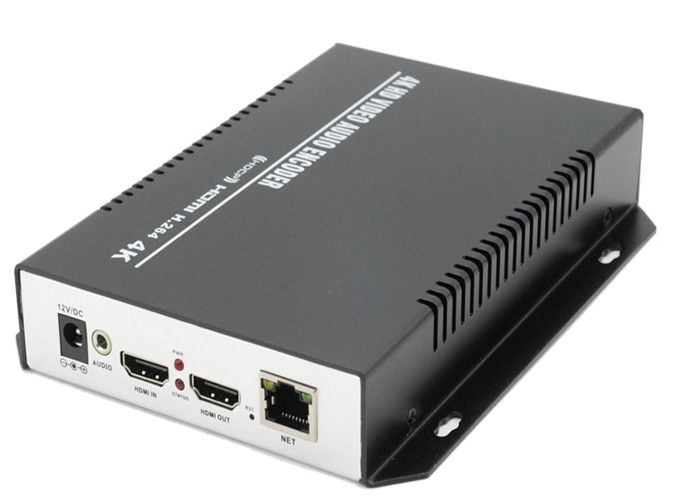

The H.264 HDMI 4K video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI input supporting H.264/AVC high profile /main profile /baseline profile coding format and two video streaming output, which is streaming by HTTP,RTSP, UDP /RTP, RTMP, ONVIF, FLV. HDMI max resolution is 3840×2160@30fps, 1080p@60fps, and output stream resolution can up to 3840×2160@30fps for the mainstream and 2nd stream, etc., Its high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc. Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.
Product parameters :
| Model No. | WL-4KHD-E | |
|
Video and audio input |
Video input | HDMI*1 |
|
Input resolution |
3840×2160@30HZ2560×16002560×14002048×15362048×10801920 ×14001920×1200 1920× 10801600x12001600x9001400x10501440x900 1360x7681280x7201280x8001280x7681024x7681024x567960x540850 x480800x600720×576720×540720×480720×404704×576640× 480640×360480×270auto |
|
| Audio input | HDMI built-in audio*1; 1 analog audio*1 | |
|
Video and audio coding parameters |
Video coding |
H.264 Baseline Profile H.264 Main Profile H.264 High Profile |
|
Output resolution |
3840×2160@30HZ2560×16002560×14002048×15362048×10801920 ×14001920×1200 1920× 10801600x12001600x9001400x10501440x900 1360x7681280x7201280x8001280x7681024x7681024x567960x540850 |
|
| x480800x600720×576720×540720×480720×404704×576640× 480640×360480×270auto | ||
|
Video code rate |
CBR/VBR,16Kbps-12Mbps Adjustable |
|
|
Video frame rate |
25/30 frame | |
|
Subtitle overlay |
Chinese, English, picture | |
| Audio coding | AAC/MP3 | |
| Audio code rate | 64Kb/s~384Kb/s | |
| Sampling Rate | 32000,44100,48000 and so on | |
|
Network parameters |
Network Interface |
10M/1000M adaptive Ethernet port, RJ45 |
|
Network protocol |
HTTP, RTSP, RTMP, UDP, Multicast, Unicast, FLV, HLS | |
| Stream type | TS,ES | |
|
Interface Protocol |
ONVIF | |
|
Configuration management |
WEB configuration, remote upgrade | |
|
Universal |
power supply | 12V/DC 1A |
|
Power consumption |
<7.5W | |
|
Operating temperature |
-20℃~＋60℃ | |
|
Working humidity |
＜90％ Non-condensing | |
|
Size (length X width X height) |
16.8cm×13(10.8)cm×2.9cm | |
| weight | 0.3kg |
Features:
*** Support HDMI max resolution is 3840×2160@30fps, 1080p@60fps and so on
*** Supports 1 channel HDMI local loop output
*** Support external analog audio input
*** Support for ONVIF protocol and NVR recording
*** Support H.264 BP/MP/HP
*** Support MP3/ AAC / G.711 Advanced Audio Coding format quality
*** Audio support left and right channels, support volume adjustment
*** CBR / VBR rate: 16Kbps ~ 12Mbps
*** 1000M network interface uses full duplex mode
*** Support HTTP, RTSP, RTMP, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols(RTMP supports input of
*** user name and password function
*** Output video stream format: TS/VES/AES stream, etc.
*** WEB operation interface, Chinese and English configuration interface is optional, password can be changed
****** Support network remote management and upgrade.
*** Supports mainstream and multi-protocol sub-stream output
****** Support output resolution setting independently
*** Support LAN, WAN
*** Support Chinese, English, picture OSD, font size is adjustable, can be set to any position on the screen.
*** Support DHCP to obtain IP automatically
*** Support one-key restore
Diagram :
