Product Details:
|
| Maximum Level: | +18dBu | THD + Noise: | 0.003%@4dBu |
|---|---|---|---|
| Dynamic Range: | 110 DB | Background Noise (A-weighted): | -91 Db |
| Common Mode Rejection Ratio @60Hz: | 80dB | Product Name: | Dante Network Studio Monitor Audio Digital Volume Controller Dsp |
| Highlight: | DC5V 1A HDMI Switch 4 In 1 Out,FCC HDMI Switch 4 In 1 Out,DC5V 1A HDMI Splitter 4in 1out |
||
Description:
dante network studio monitor audio digital volume controller dsp includes Dante Updater. Dante Updater connects
to a library of firmware updates from manufacturers of Dante-enabled products and makes it easy to keep your products up-to-date.
Devices are automatically discovered and correlated with the proper firmware for error-free deployment of updates.
With Dante Updater, you can quickly and safely take advantage of all the latest features and capabilities of Dante as
well as the manufacturers' product updates..
Specifications:
|
Item
|
Specifications |
| Max Input Level | 18dBu |
| Max Output Level | 18dBu |
| Default Output Level | 0dBu |
| THD+N | <0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
| Frequency Response | 20Hz-20kHz, +/-0.2dB |
| In To Out dynamic range | 110dB (Unrecorded right) |
| S/N | -110dB (Unrecorded right) |
| ADC Dynamic Range | CS5361 114dB |
| DAC Dynamic Range | CS4382A 114dB |
| DSP | 400Mhzfloating - point SHARC ADSP-21488 |
| Sampling Frequency | 48K |
| QE | 24Bit |
| Storage | 32 |
| Control Mode | 100M Ethernet |
| Language | English |
| Noise Gate | Yes |
| Feedback | Yes |
| Signal Generator | Yes |
| Pressure Limiter | Independent 12 channel |
| Delay | Output 1-4 218ms Output 5-8 148ms |
| PEQ Low Shelf High Shelf |
Independent 16-band |
| High Pass/Low Pass Bessel Butterworth Link-Riley |
Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
| Product name | Dante Network Studio Monitor Audio Digital Volume Controller Dsp |
Typical System Application:
Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.
It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,
it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will
conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made
on the mixed signal via the auto mixer of main processor so that more microphones can be connected
to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.

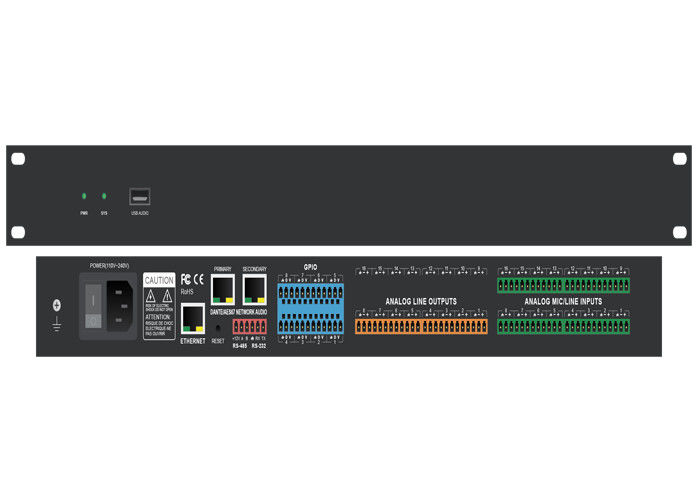

Dante Network Studio Monitor Audio Digital Volume Controller Dsp
