Product Details:
|
| Input Ports: | 16 × HDMI (Female Type),1x RS232 | Output Ports: | 1 × HDMI (Female Type), |
|---|---|---|---|
| Audio Output: | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 | Input Resolution: | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60; |
| Output Resolution: | 1080p,1080i,720p,1024x768,1360x768 | ESD Protection: | ±8kV (Air-gap Discharge), ±4kV (Contact Discharge) |
| Power Supply: | 12V/5A DC (US/EU Standards, CE/FCC/UL Certified) | Dimensions: | 440mm(W)×200mm(D)×45 Mm(H) |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F | Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Highlight: | 16x1 HDMI MultiViewer,RS232 HDMI Multiviewer,16x1 Quad Screen Multiviewer |
||
Quad RS232 16x1 HDMI MultiViewer Seamless Switcher ESD Protection
16x1 HDMI Multi-Viewer with Seamless Switcher
1. Introduction
This product is a high performance 16 by 1 Multi-Viewer wit seamless switcher. It supports sixteen High definition input source display on one screen. As a switcher, it can also seamlessly switch the sixteen HD input freely.
2. Features
①1× 16×1 HDMI Multi-Viewer
② 1× User Manual
③1× RS-232 Cable
④2× Mounting ears
⑤16 x DVI to HDMI cable

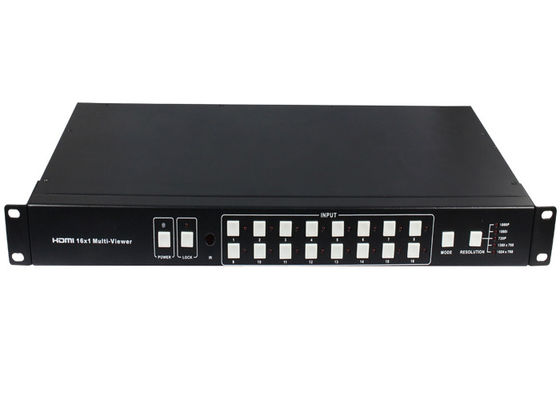

3. Pictures for 16x1 HDMI Multi-Viewer with Seamless Switcher.
4. Specifications
| Technical | |
| Video Bandwidth | 2.25Gbps |
| Input Ports | 16 × HDMI (Female type),1x RS232 |
| Output Ports | 1 × HDMI (Female type), |
| Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, | |
| Input Resolution | 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, |
| 1024x768@60,1280x720@60,1920x1080@60; | |
| Output Resolution | 1080p,1080i,720p,1024x768,1360x768 |
| ESD Protection | ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Power Supply | 12V/5A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 440mm(W)×200mm(D)×45 mm(H) |
| Weight | 1800g |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption | 24W |
5. Operation Controls and Functions
| Number | Name | Function description | ||||
| 1 | POWER | Press this button to power the device on/off. The | ||||
| LED will illuminate green when the power is on, | ||||||
| red when it is in 'Standby' mode. | ||||||
| 2 | Press this button to lock all the buttons on the panel, | |||||
| LOCK | press again to unlock. The red LED will illuminate | |||||
| when the button is locked. On the contrary, turn dark | ||||||
| when unlock. | ||||||
| 3 | IR receiver window | Receive the IR from the remote controller. | ||||
| 4 | HDMI input selection | Press to select the input from 1 to 16. | ||||
| button area | ||||||
| 5 | MODE | Press the button to select display mode. | ||||
| 6 | RESOLUTION | Press the button to select the output resolution. | ||||
| NO. | RESOLUTION | |||||
| 1 | 1080P, Main image audio | |||||
| 2 | 1080I, Main image audio | |||||
| 3 | 720P, Main image audio | |||||
| 4 | 1360x768, Main image audio | |||||
| 5 | 1024x768, Main image audio | |||||

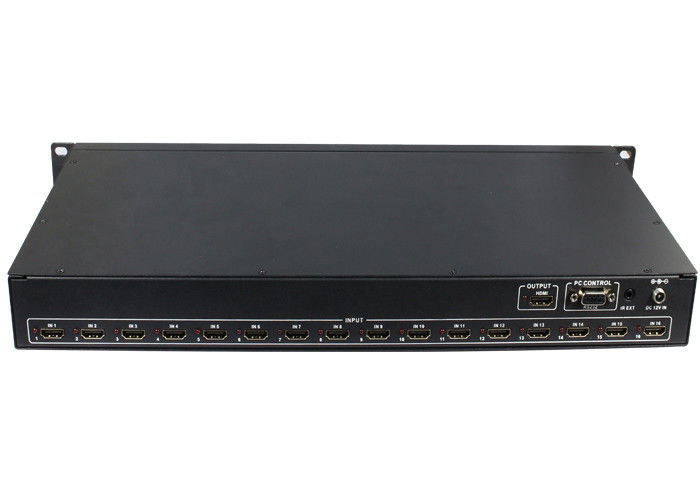

5.2 Rear Panel
4/8
6. Detail description of display mode
The 16x1 multi-viewer have 4 display modes.
MODE1:The 16x1 multi-viewer will separate display the sixteen HD input, and now it is a seamless switcher.
Input
MODE1-16×1 Seamless Switcher
MODE2: The 16x1 multi-viewer divides the four HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.
IN9 IN13
MODE2-4×1 Multi-Viewer
5/8
MODE3: The 16x1 multi-viewer divides the nine HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.
MODE3-9×1 Multi-Viewer
MODE4: The 16x1 multi-viewer divides the sixteen HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.
MODE4-16×1 Multi-Viewer
