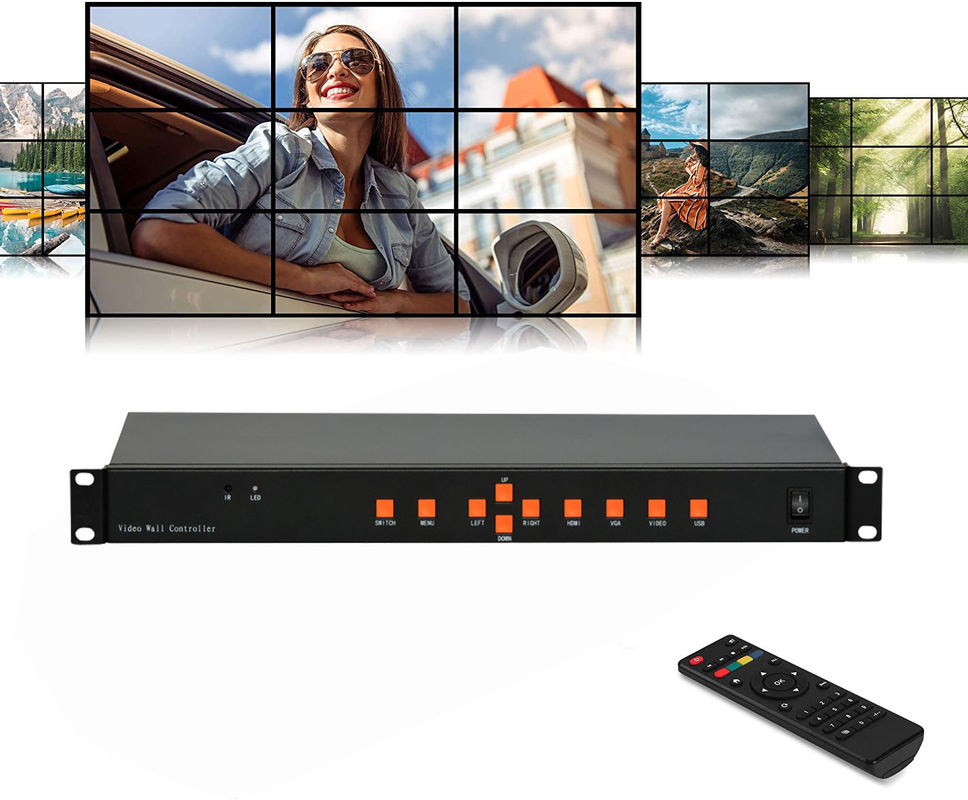

9CH LCD Video Wall Controller

9 Channels LCD Video Wall Controller 3x3 2x4 4x2 HDMI DVI VGA USB Video Processor With RS232 Control For 9 TV Splicing

1. Product introduction:
1.1 We offer you a new9 Channels LCD Video Wall Controller 3x3 2x4 4x2 HDMI DVI VGA USB!
You can use any TV or configure it as a 2x1, 2x2, 2x3, 3x2, 2x2, 1x2, 4x2 or 2x4 video wall! As long
as it has an HDMI input, you can shoot 9 TVs and install them in a 3x3 2x3, 3x2, 2x1, 1x2, 4x2 or 2x4 setting!
1.2 The controller splicer is unique among display wall processors. It is based on a customized high-performance
architecture with faster update speed, more display flexibility, robustness and security. All inputs are guaranteed
to be displayed in real time under all conditions without dropping frames.
1.3 This 9 Channels LCD Video Wall Controller 3x3 2x4 4x2 HDMI DVI VGA USB has 1 HDMI input and 9 HDMI outputs.
1 video source (Blu-ray, cable box, Directv, PC, etc.) will be required to divide the screen into 9 different parts to display
9 different displays (TV, projector, etc.), it will support HDMI, DVI or VGA Input, all HDMI outputs support full 1080P!
1.4 The built-in scrolling subtitle function can be used to set the subtitle's scroll position, scroll speed, font size, text color
and background color through the built-in control software through the RS-232 communication interface.
1.5 Dedicated to LCD TV, ultra-narrow LCD screen, high-definition screen splicing processor for projector.
The splicer supports 9 channels of HDM signal output, and can be connected to LCD TV or other display devices,
and can be remotely operated.

2. Features:
1. Control method: infrared remote control;
2. Stitching ratio: simple four stitching;
3. Power consumption: 50w;
4. Power: DC12V-3A;
5. Product size (length * width * height): 210x160x45mm / 8.3x6.3x1.8inch;
6. Product weight: 1.2kg / 2.6lbs;
7. Warranty period: 2 years;
8. HDMI output: 1024 * 768 @ 60hz, 720P @ 60Hz, 1080P @ 60Hz;
9. Resolution: 800 * 600 to 1920 * 1080 @ 60Hz;
10. Video: RM, RMVB, AVI, WMV, MOV, MP4, FLV, MPG, DAT, MPEG, etc., resolution up to 1080P;
11. Audio: MP3, WMA, FLAC, etc.;
12. Picture: JPG, BMP, PNG;
13. Controller: remote control, button, RS232;
14. Interface: HDMI / DVI / VGA/USB;

3. Specification of the 9 Channels LCD Video Wall Controller 3x3 2x4 4x2 HDMI DVI VGA USB:


4. Using Picture of the 9 Channels LCD Video Wall Controller 3x3 2x4 4x2 HDMI DVI VGA USB :
