40x40 Modular HDMI Video Wall Processor with 4K60 4:4:4 and 16-Window Display for Video Wall Matrix Controller Systems

The 40x40 HDMI video wall processor is designed for installations requiring a large number of video sources and display connections.

Key capabilities include:

• 40 HDMI input channels in the specified configuration.
• 40 HDMI output channels in the specified configuration.
• Modular plug-in input and output cards.
• Four HDMI channels per compatible card.
• Centralized management of multiple video sources.
• Flexible video wall and matrix output configurations.
• Multiple independently managed display groups.

With the appropriate cards installed, the processor can manage a large video wall alongside auxiliary displays within the same system. The exact input and output card configuration should be confirmed according to project requirements.

The upgraded VINCAN modular video wall controller supports 4K@60Hz 4:4:4 on compatible HDMI input and output cards. Each compatible HDMI card provides four channels, with 4K60 support on every channel.

This allows the system to handle high-resolution HDMI sources such as:

• Computer workstations.
• Video management systems.
• Industrial monitoring interfaces.
• Presentation systems.
• Professional AV signal sources.

4:4:4 chroma sampling helps preserve fine text and image details, making the processor suitable for control rooms displaying maps, dashboards, spreadsheets, and other detailed visual information.

The VINCAN 40x40 modular video wall processor supports flexible multi-window layouts through compatible video wall output cards. Under supported 2K operating conditions, the system provides up to 16 windows/layers within the applicable processing configuration.

Supported functions include:

• Free window positioning.
• Window resizing and scaling.
• Window movement and stretching.
• Overlapping display layers.
• Input source cropping.
• Multiple display groups.
• Video wall bezel compensation.

The processor enables operators to arrange video sources according to their monitoring or presentation requirements.

Unlike a basic HDMI matrix switcher, the VINCAN 40x40 processor combines video wall composition and matrix signal routing within one modular platform. With compatible output cards, it supports simultaneous video wall and matrix operation.

For example, a control center can assign selected displays to a multi-window monitoring wall while using other compatible matrix outputs for independent source selection. This architecture helps AV system integrators design systems that combine centralized video management with flexible display control.

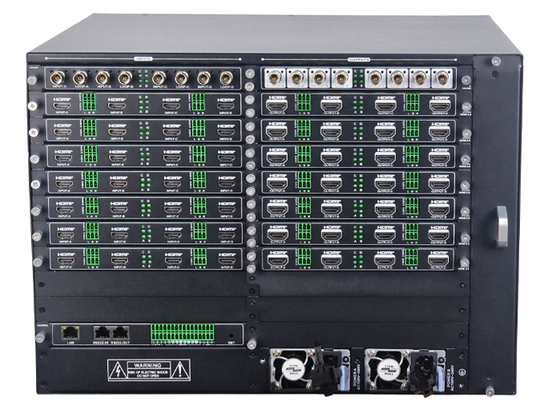

The processor uses interchangeable input and output cards, allowing the system configuration to be adapted to the installation.

Available compatible interfaces include:

• 4K60 HDMI input cards.
• 4K60 HDMI video wall output cards.
• HDMI matrix output cards.
• Optional SDI input cards.
• Optional SDI matrix output cards.
• Optional HDMI preview cards.

The modular design allows system integrators to select card types according to the required signal sources, output functions, and display groups. Card compatibility and available processing functions should be verified for the final configuration.

The VINCAN modular video wall platform supports optional 12G-SDI cards for professional video signal integration. This is useful for broadcast facilities, production environments, and monitoring systems using SDI-based equipment. SDI connectivity is optional and depends on the installed input and output cards.

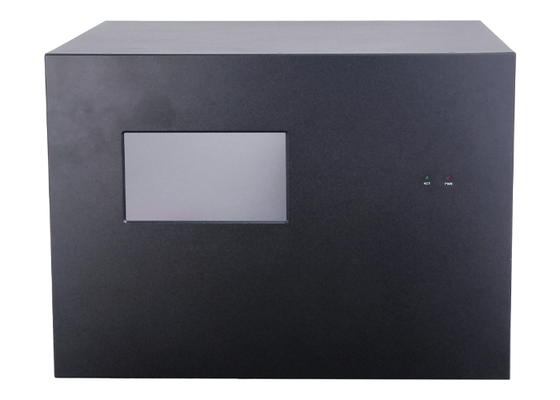

The integrated touchscreen provides convenient local control and system monitoring.

Operators can access functions including:

• Input signal switching.
• Display preset saving and recall.
• Preset cycling configuration.
• Preset cycling start and stop.
• Network IP address information.
• Signal status monitoring.
• System version information.

The touchscreen simplifies routine operation and on-site system maintenance.

The 40x40 video wall controller supports multiple control methods for professional AV system integration.

Supported interfaces and methods include:

• Web browser control.
• LAN command control.
• RS-232 serial commands.
• Front-panel touchscreen.
• Dedicated client software.
• Android application.

The processor also provides external device control interfaces, including configurable RS-232/RS-485 ports, IR ports, and GPIO connections. These options allow integrators to incorporate the video wall processor into compatible centralized AV control systems.

The processor supports multiple independently managed display groups. Each group can have its own display configuration and operational presets. The system supports up to 256 presets per display group, allowing operators to save frequently used layouts and recall them when needed.

Additional functions include:

• Bezel compensation.
• Adjustable output brightness.
• Configurable scrolling text overlays.
• Input source OSD text.
• Signal status monitoring.
• Configuration import and export.
• Preset cycling.

These functions help simplify day-to-day operation in control rooms and monitoring centers.

The VINCAN 40x40 modular video wall processor uses a dedicated FPGA hardware architecture without an embedded operating system. The system is designed for professional video signal processing, flexible source management, and continuous monitoring applications. Additional platform features include adjustable cooling fan speeds, real-time status monitoring, and dual power supply architecture.
