Product Overview
The VINCAN 16x16 Modular HDMI Video Wall Processor is a professional FPGA-based video wall controller designed for centralized AV signal management, multi-window video processing, and flexible matrix switching.
Featuring 16 HDMI inputs and 16 HDMI outputs in the standard configuration shown, this modular video wall matrix processor provides a practical solution for command centers, security control rooms, broadcast facilities, industrial monitoring systems, and large-scale AV installations.
The processor supports 4K@60Hz 4:4:4 HDMI input and output through compatible four-channel I/O cards, up to 16 windows at 2K resolution under supported configurations, optional 12G-SDI connectivity, and front-panel touchscreen operation.
The 16x16 model shares the same video processing and window/layer capabilities as the smaller 8x8 configuration. Its primary advantage is the increased number of input and output channels, allowing more AV devices and display connections to be managed within one chassis.
Combining video wall processing, matrix switching, display presets, and multiple control methods, the VINCAN 16x16 video wall processor provides a flexible hardware platform for professional AV system integrators.
Key Features
1. 16 HDMI Inputs and 16 HDMI Outputs
The 16x16 HDMI video wall processor provides centralized signal management for professional multi-screen display systems.
- 16 HDMI input channels.
- 16 HDMI output channels.
- Four HDMI channels per compatible I/O card.
- Modular input and output card design.
- Flexible source routing and display group configuration.
- Suitable for projects requiring multiple source and display connections.
The modular architecture helps system integrators configure a video wall solution based on actual project requirements.
2. 4K60 4:4:4 HDMI Input and Output
The upgraded processor supports 4K@60Hz 4:4:4 HDMI signals on both compatible input and output cards. Key benefits include:
- High-resolution video processing.
- Clear display of computer graphics and fine details.
- Support for professional HDMI signal sources.
- Four-channel 4K60 HDMI I/O card architecture.
- Flexible integration with 4K display systems.
This capability is particularly valuable in control rooms where operators need to view detailed dashboards, monitoring interfaces, technical drawings, and other high-resolution content.
3. Multi-Window Video Wall Processing
The VINCAN modular video wall processor supports flexible window management for LCD and LED video wall applications.
- Up to 16 windows at 2K resolution under supported output card configurations.
- Free window positioning and resizing.
- Window scaling, stretching, and movement.
- Overlapping windows and multiple display layers.
- Multiple independent display groups.
- LCD bezel compensation.
The maximum window count and layer allocation depend on the selected output card and operating resolution. The 16x16 and 8x8 models use the same compatible output card processing specifications.
4. Integrated Video Wall and Matrix Switching
The VINCAN 16x16 modular processor combines video wall processing and matrix switching functions within a single hardware platform. Depending on the installed I/O cards, the system supports:
- Multi-window video wall layouts.
- HDMI signal routing.
- Independent display group management.
- Source selection for compatible outputs.
- Preset-based display configuration.
- Centralized control of multiple AV sources.
For example, a security control room may use a group of screens for its main video wall while assigning other compatible outputs to separate monitoring displays. This integrated architecture helps simplify signal management in complex AV installations.

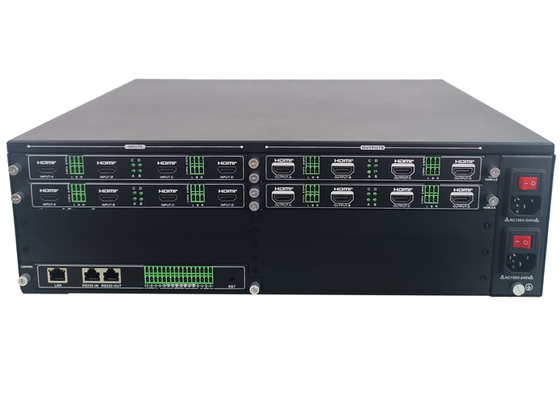

5. Modular Four-Channel I/O Cards
The processor uses modular plug-in cards, with four channels per compatible HDMI input or output card. The 16x16 HDMI configuration consists of four HDMI input cards and four HDMI output cards. Compatible card options include:
- 4K60 HDMI input cards.
- 4K60 HDMI video wall output cards.
- HDMI matrix output cards.
- Optional 12G-SDI input cards.
- Optional 12G-SDI matrix output cards.
- Optional HDMI preview cards.
Available functions depend on the installed card configuration.
6. Optional 12G-SDI Signal Integration
For professional broadcast and video production environments, the modular processor supports optional 12G-SDI signal cards. Compatible SDI cards allow integrators to design solutions for projects involving professional SDI sources and HDMI-based display systems. Applications include:
- Broadcast monitoring.
- Production control rooms.
- Professional video signal management.
- SDI and HDMI system integration.
12G-SDI interfaces are optional and are not included in the standard HDMI-only configuration.

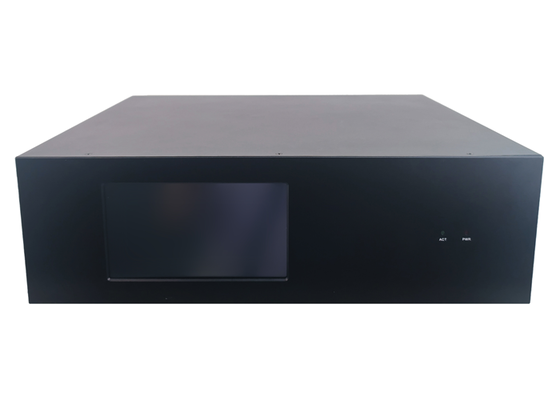

7. Front-Panel Touchscreen Control
The integrated front-panel touchscreen provides convenient local access to device functions. Operators can use the touchscreen to:
- Select and switch input sources.
- Save and recall display presets.
- Configure preset cycling.
- View signal status.
- Check network information.
- Access system information.
The touchscreen is particularly useful for equipment-room operation and on-site maintenance.
8. Web-Based and Remote Control
The video wall processor supports multiple control methods for professional AV installations. Supported methods include:
- Front-panel touchscreen.
- Web browser interface.
- LAN / TCP/IP commands.
- RS-232 serial control.
- Dedicated control software.
- Android application.
These options allow integrators to select suitable local or remote control methods for different project environments.
9. Display Presets and Scene Management
The processor supports up to 256 display presets per video wall group. Operators can create predefined layouts and recall them when required. Preset cycling is also supported, making the processor suitable for monitoring environments where display content needs to change according to different operational tasks. Additional functions include:
- Independent display group management.
- Configurable scrolling text overlays.
- Adjustable output brightness.
- Signal status monitoring.
- Supported system configuration import and export.
10. FPGA-Based Hardware Architecture
The VINCAN 16x16 video wall processor uses a dedicated FPGA hardware processing architecture without an embedded operating system. This architecture is designed for professional video signal processing and centralized display management. It is suitable for AV environments requiring continuous operation, including security monitoring centers, command rooms, industrial facilities, and broadcast installations.
Frequently Asked Questions
Q1: What is a 16x16 HDMI video wall processor?
A 16x16 HDMI video wall processor is a video processing system with 16 HDMI inputs and 16 HDMI outputs. It manages multiple video sources and display connections while supporting video wall layouts and signal routing through compatible processing cards.
Q2: Does the VINCAN 16x16 processor support 4K60 input and output?
Yes. Compatible HDMI input and output cards support 4K@60Hz 4:4:4 video signals.
Q3: How many windows can the processor display?
The processor supports up to 16 windows at 2K resolution under supported configurations. Actual window and layer capacity depends on the installed output cards and operating resolution.
Q4: What is the difference between the 8x8 and 16x16 models?
Both models share the same compatible video processing card capabilities and window/layer specifications. The main difference is the input and output configuration. The 8x8 model provides eight input and eight output channels, while the 16x16 model provides sixteen input and sixteen output channels.
Q5: Can the processor work as both a video wall controller and an HDMI matrix switcher?
Yes. The modular platform supports video wall processing and matrix switching functions with compatible input and output cards.
Q6: Does the processor support 12G-SDI?
Yes. Optional compatible 12G-SDI input and matrix output cards are available for professional video applications.
Q7: Can the processor be controlled through a web browser?
Yes. The processor supports web-based management as well as LAN, RS-232, dedicated software, Android application, and front-panel touchscreen control.
Q8: Can VINCAN provide customized configurations?
Yes. VINCAN supports OEM/ODM services and project-based configuration assistance. Customers can discuss their input signal types, output requirements, video wall layout, and control integration needs with our technical team.
