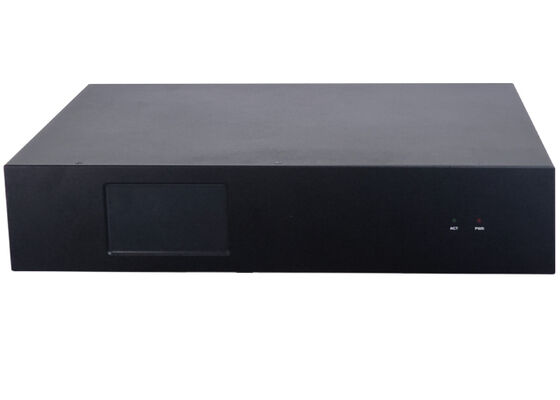

8x8 Modular HDMI Video Wall Processor 4K60 4:4:4 with 16 Windows for Video Wall Controller

The processor supports high-resolution HDMI signal processing through compatible 4K60 input and output cards.

• Supports 4K@60Hz 4:4:4 HDMI input and output.
• Four HDMI channels per compatible I/O card.
• Supports high-resolution video sources and professional display systems.
• Suitable for applications requiring clear images, detailed graphics, and readable text.
• Flexible input-to-output signal routing.

The modular video wall controller provides flexible window management for displaying multiple video sources across LCD or LED video walls.

• Supports up to 16 windows at 2K resolution under supported configurations.
• Freely position and resize display windows.
• Supports overlapping windows and multiple display layers.
• Flexible window movement, scaling, and stretching.
• Supports multiple independent display groups.
• Bezel compensation for LCD video wall installations.

Window capacity depends on the installed output card, resolution, and display configuration.

Unlike conventional video wall processors dedicated only to screen splicing, this modular platform combines video wall processing and matrix switching.

• Video wall and matrix functions in one chassis.
• Flexible signal routing between compatible inputs and outputs.
• Independent display group management.
• Convenient source switching and display layout adjustment.
• Suitable for projects requiring both multi-window video walls and independently routed displays.

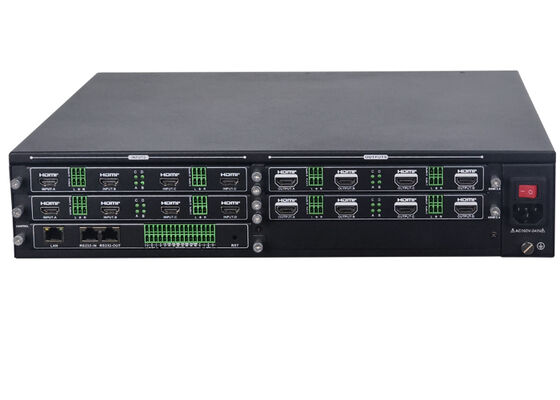

The 8x8 chassis provides two input card slots and two output card slots. Each compatible HDMI input or output card provides four channels, allowing an 8-input and 8-output configuration. The modular architecture simplifies signal interface selection and provides configuration flexibility for different AV projects.

The processor supports compatible 12G-SDI cards for professional video applications.

• Optional four-channel 12G-SDI input card.
• Optional 12G-SDI matrix output card.
• Supports professional SDI signal integration.
• Suitable for broadcast facilities, production environments, and professional monitoring systems.

SDI functions depend on the selected card configuration.

The 8x8 modular video wall processor features a 4.3-inch resistive touchscreen for convenient local operation. Operators can use the touchscreen to:

• Switch video sources.
• Save and recall display presets.
• Configure preset cycling.
• View device and signal status.
• Check network information.
• Access system information.

The processor provides flexible control options for professional AV integration. Supported control methods include:

• Front-panel touchscreen.
• Web-based control interface.
• LAN / TCP/IP commands.
• RS-232 serial control.
• Dedicated client software.
• Android application.

The web interface allows operators to manage supported functions from computers, tablets, and smartphones.

The processor supports up to 256 presets per display group, allowing users to save and recall frequently used display layouts. Additional functions include:

• Preset cycling.
• Multiple display group management.
• Configurable scrolling text overlays.
• Adjustable output brightness.
• Real-time system status monitoring.
• Import and export of supported system configurations.

The processor uses a dedicated FPGA hardware processing architecture without an embedded operating system. This architecture is designed for professional AV installations requiring continuous signal processing, flexible display management, and centralized control.
