Programmable AV Control Processor with 8 RS-232 Ports, 8 IR Channels, and 16 Simultaneous Clients for Centralized Automation

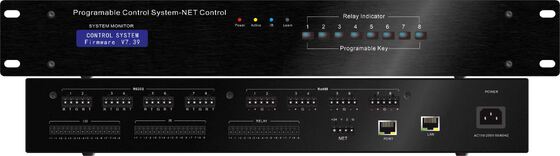

The VINCAN CR-PGMIII is a network-based programmable AV control processor designed to provide centralized control of audiovisual equipment, lighting, air conditioning, motorized curtains, power management devices and environmental sensors.

It integrates RS-232, RS-422/485, infrared, relay, I/O and TCP/IP control into one platform, making it suitable for meeting rooms, conference centers, command centers, classrooms, exhibition halls, museums and other professional AV installations.

Users can create customized graphical control interfaces for tablets, smartphones, PCs and wired touch panels. The system supports iOS, Android, HarmonyOS, Kylin and Windows control terminals.

• 8 programmable RS-232 control ports
• 8 programmable RS-422/485 control ports
• 8 infrared control channels with IR learning
• 8 programmable digital I/O channels
• 8 low-voltage relay control ports
• 2 RJ45 network communication interfaces
• Supports TCP, UDP, HTTP and TCP Server control
• Supports up to 16 simultaneous control clients
• Supports bidirectional communication and real-time device status feedback
• Supports scheduled control and automatic event execution
• Supports camera tracking applications
• Supports Modbus and 26 CRC-8, CRC-16 and CRC-32 validation methods
• Stores up to 7,000 control instructions
• No-script graphical programming simplifies system configuration
• Supports customized control interfaces for tablets, smartphones, PCs and wired touch panels
• Supports expansion modules for DMX512, lighting control, voice control, serial distribution and additional I/O or IR ports

The CR-PGMIII programmable AV control processor enables system integrators to manage multiple third-party devices through a unified control interface.

It can control HDMI matrix switchers, video wall processors, projectors, displays, audio processors, amplifiers, cameras, lighting systems, motorized curtains, air-conditioning systems, power controllers and other network or serial devices.

The processor can receive status feedback from connected devices and display the current operating state on the user interface. It supports active data reporting and query-based reporting for sensors and controlled equipment.

The CR-PGMIII uses graphical programming tools with drag-and-drop interface design. Integrators can create customized buttons, pages, commands, triggers and automated control sequences without writing complex scripts.

The system supports logical operations, loop calculations, protocol conversion, transparent data transmission, scheduled execution, network triggering and serial data triggering.

A single interface design can be deployed across multiple control platforms, helping integrators deliver a consistent operating experience on tablets, smartphones, computers and touch panels.

• Corporate meeting rooms
• Conference and training centers
• Command and control rooms
• Educational classrooms
• Auditoriums and lecture halls
• Exhibition halls and museums
• Smart buildings
• Multimedia showrooms
• Government facilities
• Commercial AV automation systems
