Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control

Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control
Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control

Large Image :  Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: NSDesignStudio
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 days
Payment Terms: T/T , PayPal
Supply Ability: 100 pcs per week

Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control

Description
Model: NSDesignStudio Product Type: Programmable AV Automation Controller
Processor: 32-bit Embedded Processor, Up To 533 MHz System Memory: 8 MB
Flash Memory: 16 MB Network Protocols: IPv4, DHCP, ARP, ICMP, IGMP, UDP And TCP
Highlight:

programmable AV automation controller with web remote

,

AV automation controller with touch panel

,

programmable control platform with web management

Product Overview

The NSDesignStudio Programmable AV Automation Controller combines professional AV device control, customizable touch-panel interfaces, browser-based operation, remote engineering, and intelligent power management in one integrated platform.

Designed for system integrators and commercial AV projects, the system enables centralized control of displays, projectors, video processors, matrix switchers, audio systems, PTZ cameras, lighting, motorized curtains, environmental equipment, access-control devices, and other third-party systems.

Unlike the other control processors in this product range, NSDesignStudio places greater emphasis on the software and management layer of AV automation. Engineers can design custom user interfaces, configure device commands, create control logic, manage video wall sources and outputs, assign user permissions, and upload or download projects through one visual design environment.

The controller supports local network operation as well as remote programming, maintenance, upgrades, and project transfer over Ethernet or the Internet. Its HTML web mode allows compatible devices to access the control environment through a browser, either through a cloud server over a public network or through a locally deployed web server.

NSDesignStudio also supports iPad, iPhone, Android, Windows, touch-panel, and web-based control. A single programmed project can serve multiple control terminals, with up to 16 devices connected simultaneously according to the hardware manual. Different terminals may use different interfaces to suit operators, administrators, technicians, or room users.

Through its combination of programmable hardware, visual interface design, web-based remote management, multi-platform control, and automated power operation, NSDesignStudio is especially suitable for projects that require more than basic room control.


Core Product Advantages

Web-Based Remote Management

NSDesignStudio supports browser-based system access through either a cloud server or a local web server.

Authorized users can perform functions such as:

  • Interface access
  • Device control
  • Project editing
  • Project saving
  • Remote programming
  • Remote maintenance
  • Remote upgrading
  • Project upload and download

The platform supports remote browser access through public 4G/5G networks as well as local web deployment within a LAN.


Custom Touch-Panel Interface Design

The NSDesignStudio software allows system integrators to build custom graphical control interfaces according to the requirements of each room, customer, or application.

Its design environment includes:

  • Rectangles and graphical backgrounds
  • Multi-state buttons
  • Text and input controls
  • Sliders
  • Data containers
  • Video wall controls
  • Signal-source controls
  • Table controls
  • Reusable custom components
  • Multiple pages for different operating scenarios

The interface editor also provides alignment, grouping, locking, layering, rotation, font, transparency, border, background, and appearance settings.


Event-Driven Button Control

Buttons can be configured with different normal, pressed, and hover states. Supported user actions include:

  • Press
  • Release
  • Double-click
  • Long press
  • Slide

Each action can be assigned to:

  • Switch pages
  • Hide controls
  • Display controls
  • Send device commands

This makes it possible to create simplified user interfaces as well as more advanced control pages for technical staff.


Multi-Platform Control

One control project can support multiple operating platforms, including:

  • iPad
  • iPhone
  • Android tablet
  • Android smartphone
  • Windows computer
  • Dedicated touch panel
  • Browser-based web terminal

The hardware manual states that up to 16 control devices can be connected simultaneously, and each device may use a different user interface.


No-Code Visual Programming

The programming platform is designed to reduce dependence on traditional computer programming languages.

Engineers can configure control pages and functions visually, while the software can automatically generate 3D-style buttons and support transparent PNG, WMF, ICO, and GIF image assets. This helps reduce design time and simplifies later maintenance or interface modification.


Comprehensive AV Device Control

The programmable control host supports multiple types of third-party equipment through:

  • RS232
  • RS485/RS422
  • Infrared
  • Relay
  • Digital I/O
  • Ethernet
  • TCP Server
  • UDP
  • IP-based device control

According to the hardware manual, the platform provides eight programmable RS232 interfaces, eight RS485 interfaces, eight infrared ports, eight relay ports, and eight digital I/O ports.


Advanced Network Integration

The integrated TCP/IP protocol stack supports:

  • IPv4
  • DHCP
  • ARP
  • ICMP
  • IGMP
  • UDP
  • TCP
  • Domain-name resolution
  • Cloud-server access
  • TCP Server operation

The customizable background server can receive commands from network devices, work with interconnected central controllers, and integrate with compatible third-party control software.


Automated Power Management

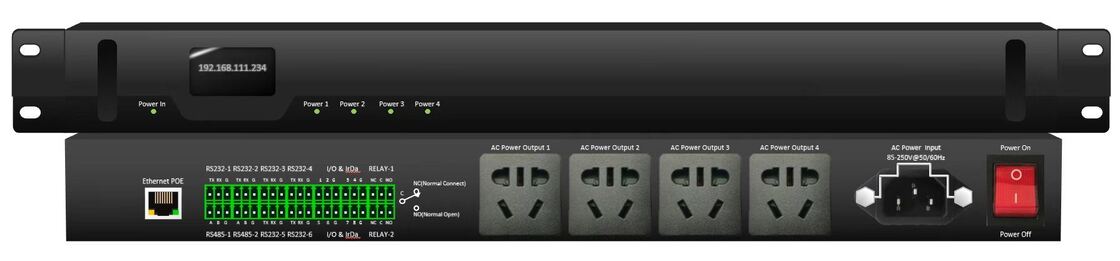

The product image shows four independently managed AC power outputs with corresponding front-panel power-status indicators.

This allows connected AV devices to be incorporated into system startup and shutdown sequences, helping coordinate:

  • Display power
  • Projector power
  • Audio equipment power
  • Peripheral device power
  • Scheduled system shutdown
  • One-touch room startup

This power-control capability gives NSDesignStudio a clearer all-in-one automation positioning than the other programmable control processors in the product range.


Complex Automation and Trigger Logic

The platform supports combined command sequences consisting of multiple actions. Delay values can be inserted between actions, and combined commands can be nested to create more advanced automation workflows.

Trigger-based functions can respond to:

  • RS232 data
  • RS485 data
  • Digital I/O status
  • Network commands
  • External sensors
  • User-interface actions

For example, a single scene command can power on the display, lower the projection screen, select an AV source, adjust the audio system, set the lighting level, and activate a video-conferencing preset.


Remote Engineering and Maintenance

System integrators can modify projects remotely through Ethernet or Internet connections rather than visiting every site.

Supported remote workflows include:

  • Uploading new programs
  • Downloading existing projects
  • Updating interfaces
  • Changing control commands
  • Performing remote maintenance
  • Upgrading system programs
  • Troubleshooting network-connected equipment




Technical Specifications

Specification Details
Model NSDesignStudio
Product Type Programmable AV Automation Controller
System Architecture Programmable hardware controller with visual design and management software
Processor 32-bit embedded processor, up to 533 MHz
Processing Architecture Three embedded processing units operating in parallel
System Memory 8 MB
Flash Memory 16 MB
Instruction Storage Up to 3,000 control instructions
Control Command Capacity 256 MB
RS232 8 programmable channels
RS485/RS422 8 programmable channels
Infrared Control 8 programmable IR transmission ports
IR Learning Built-in hardware infrared learning
Digital I/O 8 programmable input/output channels
Relay Control 8 low-voltage relay channels
AC Power Management 4 switched AC power outputs shown in the supplied product image
Network Interfaces 2 network control interfaces
Network Capacity Up to 256 network devices connected in parallel
Ethernet 10/100 Mbps adaptive
Network Modes TCP Server and UDP
Network Protocols IPv4, DHCP, ARP, ICMP, IGMP, UDP and TCP
Web Management HTML web mode through cloud or local web server
Cloud Access Supported
Remote Programming Supported
Remote Maintenance Supported
Remote Upgrade Supported
Camera Tracking Supported
Touch-Panel Control Supported
Maximum Simultaneous Control Terminals Up to 16
User Platforms iOS, Android, Windows, touch panel and browser
Interface Languages Simplified Chinese, Traditional Chinese and English
Power Output +24 V DC auxiliary output
Main Power Supply 100–240 VAC, 50/60 Hz
Maximum Host Power 150 W
Operating and Storage Temperature −20°C to +70°C
Operating and Storage Humidity 10%–90%
Dimensions 485 × 218 × 66 mm
Weight 3.8 kg
Installation Standard 19-inch rack, 1.5U
MTBF 50,000 hours




Software and User-Interface Functions

Project Management

NSDesignStudio supports:

  • Creating new projects
  • Opening local projects
  • Opening online projects
  • Uploading projects
  • Downloading projects
  • Managing recently used projects
  • Switching interface languages

Its main configuration toolbar includes interface editing, output-node configuration, signal-source configuration, agent configuration, central-control configuration, user configuration, upload, and download functions.


Interface Customization

System integrators can create different pages for different rooms, operating modes, or user roles.

Possible pages include:

  • Welcome page
  • Meeting-control page
  • Source-selection page
  • Audio-control page
  • Camera-control page
  • Video-wall page
  • Lighting-control page
  • Power-management page
  • System-status page
  • Technical-maintenance page

The platform supports global page backgrounds, solid or gradient fills, custom images, reusable components, antialiasing, transparency, borders, rounded corners, and graphical layering.


Video Wall and Source Management

Unlike a basic room-control interface, NSDesignStudio includes dedicated configuration areas for:

  • Output nodes
  • Signal sources
  • Video wall controls
  • Source controls
  • Input groups
  • Forwarding nodes
  • Agent configuration

This makes it suitable for AV systems that combine room automation with distributed video processing and video-wall management. The software manual identifies it as the use and control software for AQS-series distributed video-processing nodes.


User and Permission Configuration

Different interface pages and control functions can be created for:

  • End users
  • Meeting-room administrators
  • Teachers
  • Operators
  • System technicians
  • Maintenance engineers

This helps prevent unauthorized users from accessing advanced system settings while maintaining a simple daily operating interface.


Typical Applications

Enterprise Conference Rooms

NSDesignStudio can provide one-touch meeting-room operation for:

  • Display and projector control
  • Source switching
  • Audio volume
  • PTZ camera presets
  • Video conferencing
  • Lighting scenes
  • Curtain control
  • Equipment power management

A “Start Meeting” button can execute multiple coordinated commands, while an “End Meeting” button can shut down equipment in the correct sequence.


Multi-Room Smart Offices

The browser-based management architecture is suitable for organizations operating several meeting rooms or collaboration spaces.

Facility and AV teams can remotely:

  • Check room systems
  • Update control interfaces
  • Change device commands
  • Maintain room presets
  • Upload revised projects
  • Access systems without travelling to each room

Command and Control Centers

The controller can integrate:

  • Video walls
  • Distributed AV nodes
  • Matrix switchers
  • Operator displays
  • PTZ cameras
  • Audio systems
  • Access-control signals
  • Power-management devices

Custom interfaces can be designed for operators, supervisors, and maintenance staff, with different pages and permissions for each role.


Smart Classrooms and Training Centers

Teachers or trainers can control:

  • Interactive displays
  • Projectors
  • Document cameras
  • Computers
  • Audio systems
  • Recording equipment
  • Lighting
  • Power sequencing

The interface can be simplified for everyday teaching while keeping engineering functions on a protected maintenance page.


Auditoriums and Multipurpose Halls

The automation platform can coordinate:

  • Projection systems
  • Stage displays
  • Audio processors
  • Lighting scenes
  • Motorized screens
  • Curtain systems
  • Source equipment
  • Equipment power

Preset operating modes can be created for presentations, ceremonies, training sessions, performances, and video conferences.


Museums and Exhibition Spaces

NSDesignStudio can be used to control:

  • Multimedia exhibits
  • Digital signage
  • Interactive screens
  • Lighting scenes
  • Scheduled media playback
  • Environmental sensors
  • Equipment power
  • Visitor-triggered content

Browser-based maintenance allows project content and control interfaces to be updated remotely.


Hotels and Conference Centers

The platform is suitable for:

  • Boardrooms
  • Banquet halls
  • VIP meeting rooms
  • Conference centers
  • Training rooms
  • Multipurpose event spaces

Separate interfaces can be created for guests, hotel employees, event operators, and AV technicians.


Distributed AV and Video Wall Projects

Because NSDesignStudio includes video-wall controls, source configuration, output-node management, and distributed node support, it is particularly suitable for projects combining AV automation with networked video distribution.

Typical deployments include:

  • Security control rooms
  • Traffic management centers
  • Emergency operation centers
  • Corporate experience centers
  • Exhibition halls
  • Campus monitoring rooms

Why Choose NSDesignStudio?

The NSDesignStudio solution is not positioned as another conventional central control processor. Its main value is the combination of:

  • Programmable control hardware
  • Visual user-interface design
  • Distributed video-node management
  • Web-based remote access
  • Cloud project transfer
  • Multi-platform touch control
  • Automated equipment power management
  • Remote engineering and maintenance

This makes it especially suitable for system integrators that need to deliver customized user experiences and maintain multiple AV systems efficiently after installation.



Programmable AV Automation Controller With Web-Based Remote Management And Touch Panel Control

Contact Details
Shenzhen Winlink Technology Co., Limited

Contact Person: Swing Jiang

Tel: 86-18617193360

Send your inquiry directly to us (0 / 3000)
