Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible

Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible
Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible

Large Image :  Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL88
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package for Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Contact Now

Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible

Description
Product Name: Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible Protocol: SNMP, RS232, UDP
Transmission Distance: Transmit Audio, Video, Control Signals Over Fiber Optic Up To 20km. Power Supply: 110-220V PSU, Power Redundancy Available
Dimension: 481x331x226 Mm, 6U And Racked By Standard Rack
Highlight:

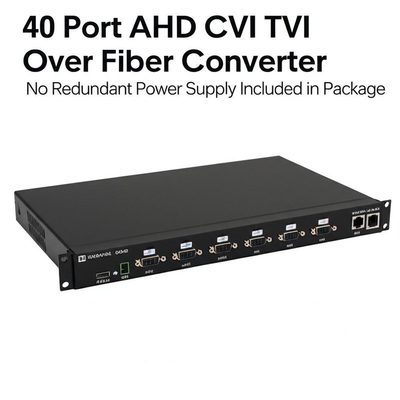

40 port AHD CVI TVI converter

,

fiber KVM converter no power supply

,

AHD CVI TVI fiber converter

Description:

Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible is designed with single channel to transmit UHD@60 Video + Audio + USB-HID + RS232/485 + IR
over fiber optic up to 20 km, with original image quality and nearly zero latency. It would be configured as transmitter of
a all-in-one Visualized & Distributed Fiber KVM and Video Wall Control System or a KVM Extender or a KVM Matrix.







Specification:



  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC),

  • Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.

  • Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible;

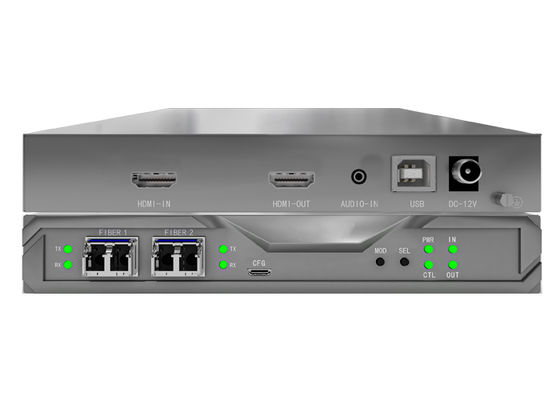

Video Port HDMI INx1, HDMI LOOP OUT x1
Audio Port 3.5 mm Analog INx1, Phoenix INx1
Control Port RS232 x1, RS485 x1, IR/IO x2, USB2.0 x2
Communication Port Fiber SFP x2
Resolution 3840x2160@60 4:4:4 and downward compatibility
Image Processing Advanced FPGA
Protocol HDCP, HDMI2.0, HDMI 1.4 compatible with DVI 1.0
Bandwidth up to 12 GB per channel
Transmission Distance up to 20 km over fiber optic
Audio Control audio matrix switching, audio mixing, embed and de-embed feature
Power Supply 12V 2.6A Adapter, available to make power redundancy





Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible 0

Enterprise-Grade Fiber KVM Matrix | Latency <16ms | 288+ Port Node | Video Wall Compatible







Tag:

Optic Transmitter And Receiver Node,

Node Kvm Transmitter And Receiver,

17 Slots Fiber Kvm Transmitter
