Product Details:
|
| Video Input: | HDMI2.0 X1: 4096x2160@60Hz, Backward Compatible | Video Output: | HDMI2.0 X1: 4096x2160@60Hz, Backward Compatible |
|---|---|---|---|
| Video Loop Out: | And HDMI Output Multiplexing: Input Mode Do Loop Out, Support Hard Loop Out | USB: | All USB Devices |
| Integrated Dialing: | Top: RX Output Bottom: TX Input | Product Name: | Av Access Best 4k Kvm Over Ip Extend |
1. Product overview
Dual stream series av access best 4k kvm over ip extender is a FPGA-based architecture, lossless quality,
sub-frame delay distributed seat all-in-one machine. EXQ.S codec technology with extreme image quality
and standard H.264/H.265 codec technology are embedded with their own privacy protocol to ensure that
signals are protected during signal transmission. Converged communication, cross-region optical fiber transmission,
multi-level interconnection, cross-switch, cross-segment can achieve stable signal transmission.
2. Technical specifications
| project | parameter |
| video input | HDMI2.0 x1: 4096x2160@60Hz, backward compatible |
| video output | HDMI2.0 x1: 4096x2160@60Hz, backward compatible |
| Video loop out | and HDMI output multiplexing: input mode do loop out, support hard loop out |
| audio input |
HDMI embedded audio Single-ended stereo x1: 3.5 Phoenix terminal x3 |
| audio output |
HDMI embedded audio Single-ended stereo x1: 3.5 Phoenix terminal x3 |
| serial port | RS-232 x1 /RS-485 x1: 3.5 Phoenix terminal x3 |
| relay | 24V weak current relay x1: 3.5 Phoenix terminal x2 |
| I/O | 5V x 4: 3.5 Phoenix terminal x5 |
| infrared | and I/O multiplexing |
| USB |
USB2.0 host port x1: red USB2.0 Host Port x2: Black USB2.0 transparent transmission dedicated host port x1: green |
| network |
1000M RJ45 x1 1G SFP x1 |
| power supply |
POE:802.3at DC12V / 3A |
| Video coding performance |
EXQ.S:4096x2160@60Hz x1 H.265:4096x2160@60Hz x1 + 2048x1080@60Hz x1 + 1024x540@30Hz x1 JPEG:1024x540@30Hz x1 |
|
Video decoding performance
|
EXQ.S:4096x2160@60Hz x1 / 2048x1080@60Hz x4 H.265:4096x2160@60Hz x1 / 2048x1080@60Hz x4 |
| audio codec | 48K sampling, PCM, G.711, AAC |
| USB | all USB devices |
| KVM |
Visual OSD support Support Rights Management Support 1 keyboard and mouse cross-system Support for large screen monitoring and operation Support inter-agent collaboration |
| liquid crystal |

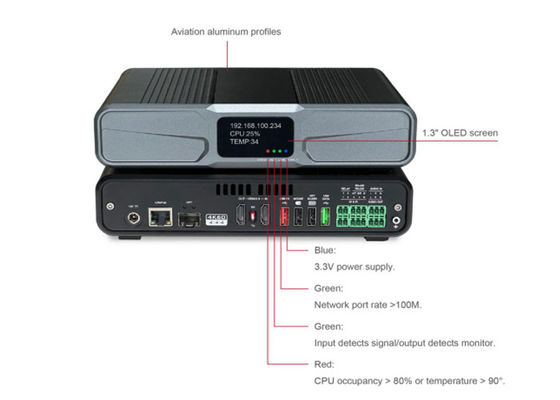

white OLED Support displaying IP, input signals, device status, etc. |
| Integrated dialing |
Top: RX output Bottom: TX input |
| network hot standby | optical-electrical |
| POE/DC power supply hot standby | support |
| Product name | av access best 4k kvm over ip extender |
3. wiring instructions for av access best 4k kvm over ip extender:
