Product Details:
|
| Optical Fiber Type: | Single-Mode | Signal Transmission: | Optical Fiber |
|---|---|---|---|
| Resolution Support: | 4K | Interface Bandwidth: | 18Gbps |
| Interface: | HDMI-A Interface | Support Protocol: | HDMI2.0 |

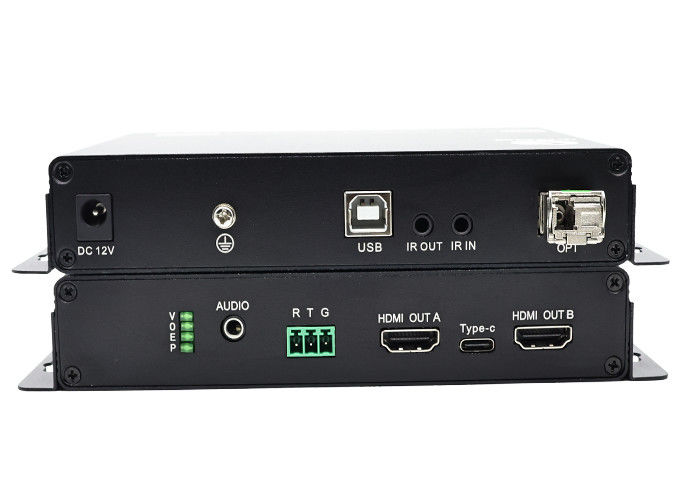

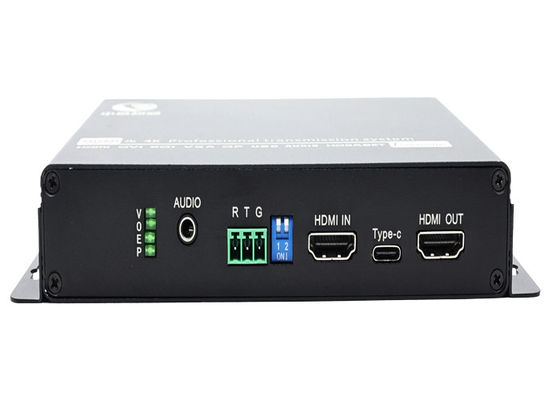

| Product Name: | 4K HDMI Fiber Optic Extender | Audio Interface System: | 3.5mm Stereo Audio Socket |
| Highlight: | LC RS232 Fiber Optic Extender,4K60Hz Fiber Optic Extender,3.5mm Stereo Audio Fiber Optic Extender |
||
This professional HDMI over fiber extender is an ideal solution for industries requiring stable, high-resolution video transmission, including broadcast media, corporate video conferencing, medical diagnostics, education livestreaming, and 24/7 surveillance systems. With full HDMI 2.0 support and resolutions up to 4K@60Hz, this HDMI 4K extender ensures ultra-low latency and uncompressed image quality over LC single-mode fiber. Built for long-distance runs up to 10KM, this HDMI extender 4K 60Hz delivers consistent and real-time performance, making it the go-to choice for AV engineers looking for a robust and future-ready 2.0 HDMI extender for demanding environments.
| Video | Supported Protocol | HDMI 2.0b |
| Video Bandwidth | 18Gbps | |
| HDCP | HDCP 2.2 | |
| Interface Bandwidth | 18Gbps | |
| Color Depth | RGB4:4:4 8-bit downward compatible | |
| Video Color Space | RGB4:4:4, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Interface | HDMI-A interface | |
| Impedance | 100Ω | |
| Suggested Maximum HDMI Cable Input/Output Distance | Less than 10M. When the resolution is above 1920×1080@60Hz,it can reach 30M when using a cable with equalization. | |
| Audio | Audio Mode | Stereo |
| Audio Interface | 3.5mm stereo audio socket | |
| Audio Signal Type | Audio embedding and de-embedding | |
| RS232 | Interface | Phoenix Terminal |
| Signal Direction | Bidirectional Transmission | |
| Baud Rate | Default 38400bps, can be manually selected from 600-115200bps | |
| IR | IR Frequency | 38KHz |
| Optical Fiber | Optical Fiber Interface | LC Interface |
| Optical Fiber Type | Single -Mode | |
| Wavelength | TX1330/RX1270nm；TX1270nm/RX1330nm | |
| Interface Bandwidth | 10G | |
| Suggested Maximum Transmission Distance | Single-Mode Optical Fiber:10km | |
| Other | Power Supply | Single -circuit:DC 12V/1A |
| Maximum Power Consumption | Without KVM:max 4W;With KVM:max 6W | |
| Operating Temperature | 0°~40°C/32°F~104°F | |
| Humidity | 20~90% RH(No Condensation) | |
| Storage Temperature | -20°~60°C/-4°F~104°F | |
| Operating Time | 7*24 hours |
Engineered for demanding AV environments, this HDMI extender 4K 60Hz over fiber provides reliable and lossless 4K video and audio transmission across long distances. Its robust performance makes it ideal for professional applications where clarity, stability, and control are critical.
Typical Use Cases Include:
