Product Details:
|
| HDCP Compliance: | HDCP2.2 | Video Bandwidth: | 18Gbps |
|---|---|---|---|
| Video Resolution: | Up To 4K 2K@60Hz With 24bit | Power Supply: | PoC (Power Over Cable) |
| Color Space: | RGB/YCBCR4:4:4 | Audio Formats: | LPCM 7.1CH, Dolby True HD, And DTS-HD Master |
| Video Resolution Supported: | 4K@60Hz, 4:4:4, HDR10 Supported | Interface Types: | HDMI, USB, RS-232, IR, RJ45 |
| Highlight: | PoC HDBaseT Extender,HDBaseT Extender over LAN,LAN HDBaseT Extender |
||

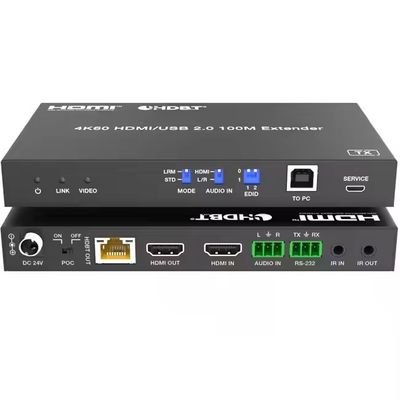

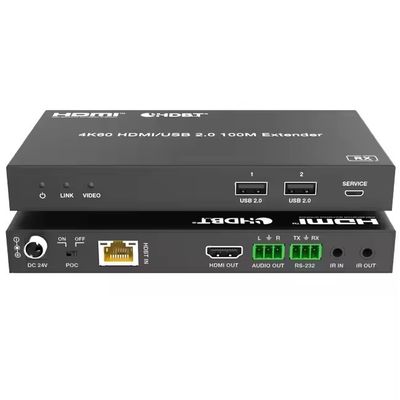

The 4K60 USB 2.0 HDBaseT Extender is a versatile solution designed to transmit HDMI high-definition signals, bidirectional IR control signals, bidirectional RS-232 control signals, and USB 2.0 signals over a single CAT6 cable. In HBT mode, it extends signals up to 100m, while in LRM mode, it reaches distances up to 150m. Supporting video resolutions up to 4K2K@60Hz (4:4:4), this HDBaseT with USB extender ensures exceptional image quality.
The transmitter and the receiver supports audio de-embedding, with audio pass-through available when no video signal is present. By converting HDMI signals to standard HDBaseT, this HDBaseT USB extender facilitates seamless transmission over LAN cables. Its bidirectional IR passthrough function allows for effortless remote control of source or display devices. Additionally, the extender supports EDID management (COPY TV/Built-in) and includes a POC function with a POC control switch.
USB 2.0 + HDBaseT Integration: Extend HDMI, USB 2.0 (keyboard/mouse/peripherals), IR, and RS-232 signals simultaneously .
4K@60Hz HDMI over CAT6: Support 4K2K@60Hz 4:4:4 chroma, HDR, and EDID management (TV Copy/Built-in modes).
Bi-Directional Control: Remotely operate source/display devices via IR/RS-232 passthrough.
Audio Flexibility: Transmitter embeds audio; receiver de-embeds analog/digital audio (supports pass-through without video).
PoC (Power over Cable): Simplify installations with PoC switch support, reducing external power needs.
Enterprise-Grade Reliability: Built for video conferencing, broadcast studios, digital signage, and KVM systems.
| Interface Types | HDMI, USB, RS-232, IR, RJ45 |
| USB Support | USB 2.0/3.0(2xUSB-A ports) |
| HDMI Compliance | HDMI 2.0b |
| Video Resolution | Up To 4K 2K@60Hz With 24bit |
| Audio Formats | LPCM 7.1CH, Dolby True HD, And DTS-HD Master |
| HDCP Compliance | HDCP2.2 |
| Model | HDBaseT-100U |
| Video Resolution Supported | 4K@60Hz, 4:4:4, HDR10 supported |
| Video Bandwidth | 18Gbps |
| Color Space | RGB/YCBCR4:4:4 |
| Product name | USB 2.0 HDBaseT Extender |
The USB 2.0 HDBaseT Extender (100m) enables long-distance transmission of USB signals over CAT5e/CAT6 cables, supporting high-speed data transfer (up to 480 Mbps). It ensures low latency and stable performance, making it ideal for various professional and industrial applications.
