Product Details:
|
| HDCP Compliance: | HDCP2.2 | Power Supply: | DC 12V 2A |
|---|---|---|---|
| Compatibility: | HDMI 2.0 | HDMI Resolution: | 1080P/1080i/720P/576P |
| Video Bandwidth: | 18Gbps | Product Category: | 4K HDMI KVM Extender |
| Video Resolution: | 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4 | Product Name: | 4K HDMI KVM HDBaseT Extender |
| Highlight: | USB HDMI KVM Extender,4K60 HDMI KVM Extender,USB KVM HDMI KVM Extender |
||

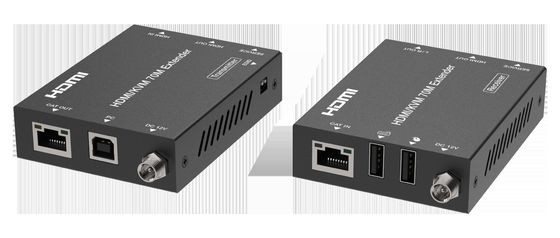

4K60 HDMI KVM Extender - 4K@60Hz over Cat6 up to 70m w/ USB & IR
Elevate professional AV systems with this 4K60 HDMI KVM Extender, delivering uncompressed 4K@60Hz (4:4:4) video, USB KVM functionality, and bi-directional IR control up to 70m/230ft via a single Cat6/6A/7 cable. Engineered for mission-critical environments like control rooms, medical imaging, and digital signage, this HDMI over Cat6 Extender ensures zero-latency signal integrity and plug-and-play simplicity.
☆ HDMI2.0b and HDCP 2.2 compliant
☆ this KVM Extender supports 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
☆ The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG
☆ Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)
☆ Support 3.5mm analog audio de-embedding, audio is output through the L/R OUT port of the receiver
☆ EDID copy pass-through function between the source device and display device
☆ Support bi-directional POC (Power over Cable) function
☆ With USB KVM pass-through function, USB1.1 compliant, support remote-control by keyboard and mouse
☆ Compact design for easy and flexible installation
| Video Bandwidth | 18Gbps |
| HDMI Resolution | 1080P/1080i/720P/576P |
| L/R Audio Formats | PCM 2.0 |
| Product Name | 4K Ultra HD HDMI HDBaseT Extender Video Transmitter Receiver with 100m Range |
| Product Category | HDMI HDBaseT KVM Extender |
| Video Resolution | 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4 |
| Compatibility | HDMI 2.0 |
| Power Supply | DC 12V 2A |
| Transmission Distance | 4K--70m, 1080P--70m(Cat 6 cable) |
|
HDCP Compliance |
HDCP2.2 |
|
HDR |
HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+) |
This 4K HDMI KVM Extender is engineered for mission-critical environments requiring ultra-HD video transmission and remote USB/IR control over 70m Cat6/7 cable. Optimized for seamless integration, it delivers 4K@60Hz (4:4:4) clarity and responsive KVM functionality across key scenarios:
Control Rooms: Manage remote PCs/displays via USB KVM Extender with HDMI over Cat6 stability for 24/7 operations.
Digital Signage: Distribute 4K@60Hz content across malls/airports using HDBaseT Extender technology (HDCP 2.2 compliant).
Healthcare: Stream 4K medical imaging (endoscopy/surgical displays) with USB 2.0 KVM control for peripherals.
Security & Surveillance: Extend zero-latency video feeds (4K IP cameras) and enable remote PTZ control via RS-232/IR.
Broadcast Studios: Transmit live 4K HDR feeds with uncompressed HDMI over Cat6 and sync USB production tools.
