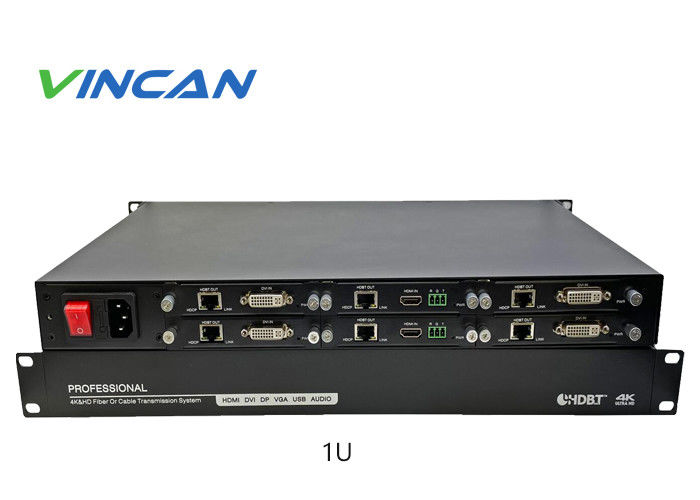

Product Description:
The rack-mounted HDBaseT extender is a professional-grade device designed to extend HDMI signals over long distances using HDBaseT technology. By transmitting uncompressed high-definition video, audio, Ethernet, USB, and control signals over a single Cat5e/6/7 network cable, this HDMI Extender Kit supports distances up to 100 meters (328 feet). This extender maintains 4K@60Hz HDR video quality, ensuring crisp and vibrant images.
Features:
☆ HDCP 2.2 / 1.x and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution is up to 4k2k@60Hz YUV 4:4:4 High bit rate audio transmission via HDMI
☆ The maximum transmission distance is 328ft / 100 meters via a single CAT6/6a cable
☆ Support PoC (Power over Cable) function
☆ Support ARC (Audio Return Channel) function
☆ Support bi-directional IR, RS-232 and LAN signal pass-through transmission
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Compact design for easy and flexible installation.
Technical Parameters:
| HDCP version |
HDCP2.2 |
| Compatibility |
HDMI 2.0 |
| Video Interface |
HDMI |
| Power adapter format |
Input AC (50Hz.60Hz) 100-240V |
| Video Resolution |
4K@60Hz |
| HDMI resolution |
1080P/1080i/720P/576P |
| Transmission distance |
4K@60Hz:70m,1080P@60Hz:100m |
| Power Supply |
DC 12V 2A |
| Product Name |
rack-mounted HDBaseT extender |
Applications:
The Winlink WL-HB06-1U HDMI HDBaseT Extender is a versatile and reliable solution for extending HDMI signals over long distances. With its HDBaseT technology, this extender can transmit high-quality audio and video signals up to 4K@60Hz resolution with HDCP2.2 compliance.
Designed as a wallplate HDBaseT transmitter, the WL-HB01S HDBaseT Wall Plate Transmitter is perfect for various product application occasions and scenarios:
1. Home Entertainment Systems
2. Conference Rooms
3. Retail Displays
4. Education Environments
5. Event Venues
