Product Details:
|
| Video Bandwidth: | 18Gbps | Transmission Distance: | 4K:70m 1080P:100m |
|---|---|---|---|
| HDMI Resolution: | 1080P/1080i/720P/576P | Power Supply: | DC 12V 2A |
| L/R Audio Formats: | PCM 2.0 | HDCP Compliance: | HDCP2.2 |
| Compatibility: | HDMI 2.0, | Video Resolution: | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 |
| Highlight: | 4K HDMI HDBaseT Extender,100m HDMI HDBaseT Extender |
||
4K HDBaseT Extender Wall Plate Kit - HDMI over HDBaseT up to 100m, 4K@60Hz HDR
Elevate your AV systems with this 4K HDBaseT Extender Kit, combining a wall plate transmitter and receiver to deliver uncompressed 4K@60Hz (4:4:4 HDR10) video, multi-channel audio, and control signals over CAT6/7 cables up to 100m/328ft. Engineered for commercial and residential use, this HDMI Extender over HDBaseT supports HDCP 2.2 and HDMI 2.0b, ensuring flawless transmission for gaming, streaming, and professional presentations.
☆ HDCP 2.2 / 1.x and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution is up to 4k2k@60Hz YUV 4:4:4 High bit rate audio transmission via HDMI
☆ The maximum transmission distance is 328ft / 100 meters via a single CAT6/6a cable
☆ Support PoC (Power over Cable) function
☆ Support ARC (Audio Return Channel) function
☆ Support bi-directional IR, RS-232 and LAN signal pass-through transmission
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Compact design for easy and flexible installation.
| HDCP version | HDCP2.2 |
| Compatibility | HDMI 2.0 |
| Video Interface | HDMI |
| Power adapter format | Input AC (50Hz.60Hz) 100-240V |
| Video Resolution | 4K@60Hz |
| HDMI resolution | 1080P/1080i/720P/576P |
| Transmission distance | 4K@60Hz:70m,1080P@60Hz:100m |
| Power Supply | DC 12V 2A |
| Product Name | 4k HDMI HDBaeT Extender |

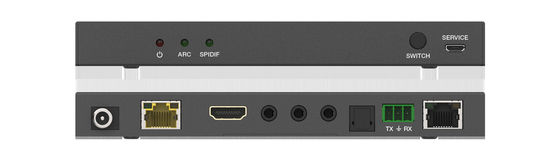

The Winlink WL-HB100S HDMI HDBaseT Extender is a versatile and reliable solution for extending HDMI signals over long distances. With its HDBaseT technology, this extender can transmit high-quality audio and video signals up to 4K@60Hz resolution with HDCP2.2 compliance.
Designed as a wallplate HDBaseT transmitter, the WL-HB01S is perfect for various product application occasions and scenarios:
Home Theater: Transmit 4K HDR from gaming consoles/Blu-ray players via 4K HDBaseT Extender (HDMI Extender Kit) with zero latency.
