HDbaset HDMI Extender Over Single 70m CAT6 With IR Support POC, RS232 4k 60hz

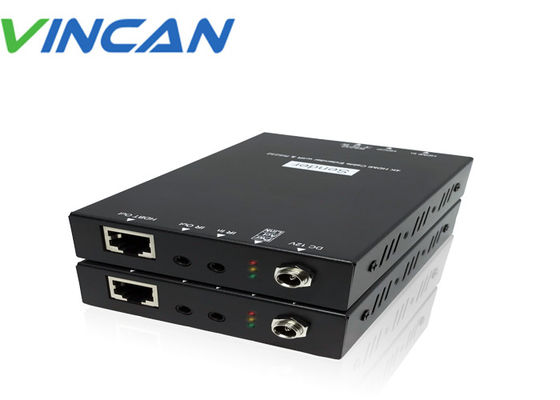

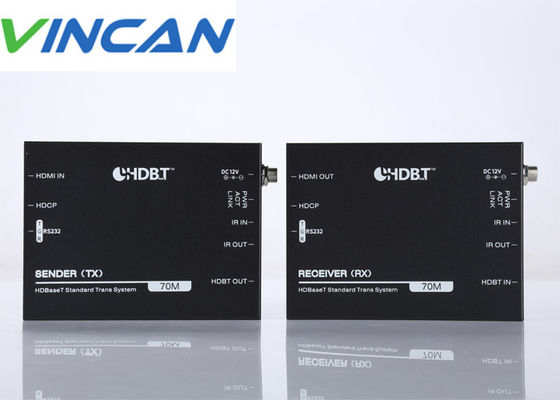

Large Image : HDbaset HDMI Extender Over Single 70m CAT6 With IR Support POC, RS232 4k 60hz

Product Details:

Place of Origin:	China Mainland
Brand Name:	Winlink
Certification:	CE FCC Rohs
Model Number:	WL-HB70S

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	Stantard export package
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 pcs per week

Contact Now

HDbaset HDMI Extender Over Single 70m CAT6 With IR Support POC, RS232 4k 60hz

Description

HDMI Resolution:	1080P/1080i/720P/576P	HDCP Version:	HDCP1.4
Power Supply:	DC 12V 2A	Transmission Distance:	70m
Compatibility:	HDMI 2.0	Video Resolution:	4K@60Hz
Video Interface:	HDMI	Product Name:	HDMI HDBaseT Extender
Highlight:	IR Support HDMI Extender , 70m HDMI Extender , 4k 60hz HDMI Extender

Product Description:

HDBaseT HDMI 70m Extender is a high-definition signal transmission device based on HDBaseT technology. It can transmit HDMI signals up to 70 meters through a CAT5e/6/7 network cable. HDMI HDBaseT Extender is an efficient, stable and economical HDMI transmission solution that supports 4K@30Hz, 1080P@60Hz, IR control, and PoC single-ended power supply. The HDMI HDBaset extender is widely used in home theaters, conference systems, security monitoring, digital signage, education systems and other scenarios that require long-distance high-definition transmission.

Features:

Long-Distance HDMI Transmission:HDMI over HDBaseT supports up to 70m (1080P) or 40m (4K UHD) over a CAT6 cable.
High-Resolution Support: Compatible with 4K@30Hz, 1080P@60Hz, 3D, Deep Color.
Zero Latency, Uncompressed Transmission: Utilizes HDBaseT technology for lossless video transmission, ideal for high-quality video applications.
Audio and Video Synchronized Transmission: Supports Dolby TrueHD, DTS-HD Master Audio, and 7.1-channel audio.
Bi-Directional IR Remote Control: Enables IR signal pass-through for remote device control (e.g., TV, set-top box).
PoC (Power over Cable): Requires power only on one side, eliminating the need for additional power adapters.
EDID Pass-Through: Automatically adjusts to the best display resolution for optimal compatibility.
Interference Protection: Features ESD static protection, ensuring stable operation in complex environments.
Plug and Play: HDMI2.0 over HDBaseT extender no drivers required, easy installation and operation.

Technical Parameters:

Parameter	Description
Transmission Technology	HDBaseT 1.0
Transmission Distance	70m (1080P@60Hz, CAT6/6a/7); 40m (4K@30Hz)
Resolution Support	4K@30Hz, 1080P@60Hz, 720P, 3D
Audio Format	Dolby TrueHD, DTS-HD Master Audio, 7.1-channel
Interfaces	HDMI Input/Output; RJ45 (HDBaseT Transmission)
HDMI Version	HDMI 2.0 (Compatible with HDMI 2.0 but does not support 4K@60Hz)
HDCP Support	HDCP 1.4
IR Control	Bi-Directional IR (20~60kHz)
PoC Power Supply	Power required only on TX side (DC 12V/24V)
Product Name	HDMI HDBaseT Extender
Power Supply	12V/2A Adapter (TX side)
Operating Temperature	-10°C ~ 60°C

Applications:

The HDMI HDBaset extender is widely used in home theaters, conference systems, security monitoring, digital signage, education systems and other scenarios that require long-distance high-definition transmission.

Conference Rooms & Training Centers: Long-distance HDMI signal transmission to projectors and large displays.
Home Theater: Lossless high-definition signal transmission for connecting TVs and AV equipment.
Security Monitoring: Remote display of high-definition camera signals.
Digital Signage: 4K/1080P video broadcasting for shopping malls, exhibitions, and outdoor advertising.
Education & Lectures: HDMI signal extension for schools, multimedia classrooms, and lecture halls.
