Product Details:
|
| Product Name: | HDMI Optical Extender | Interface: | HDMI Port |
|---|---|---|---|
| Data Rate: | Up To 10.2Gbps | Resolution: | Up To 4K @ 60Hz, 1080p, HDR, 3D |
| Transmitted Distance: | 20KM | Interface Bandwidth: | 6.75Gbps |
| Optical Fiber Interface: | Single Channel: LC Port Rack: FC Optional | Fiber Type: | Single Mode/multi-mode |
| Highlight: | 10.2Gbps HDMI Optical Extender,High Resolution HDMI Optical Extender,Rack HDMI Optical Extender |
||

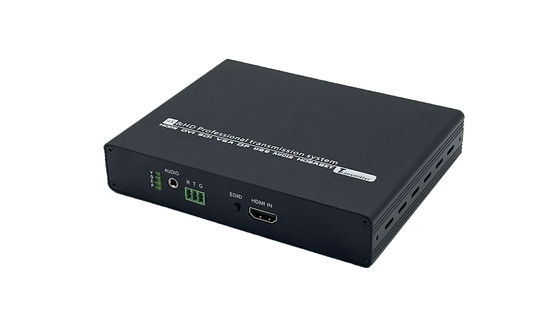

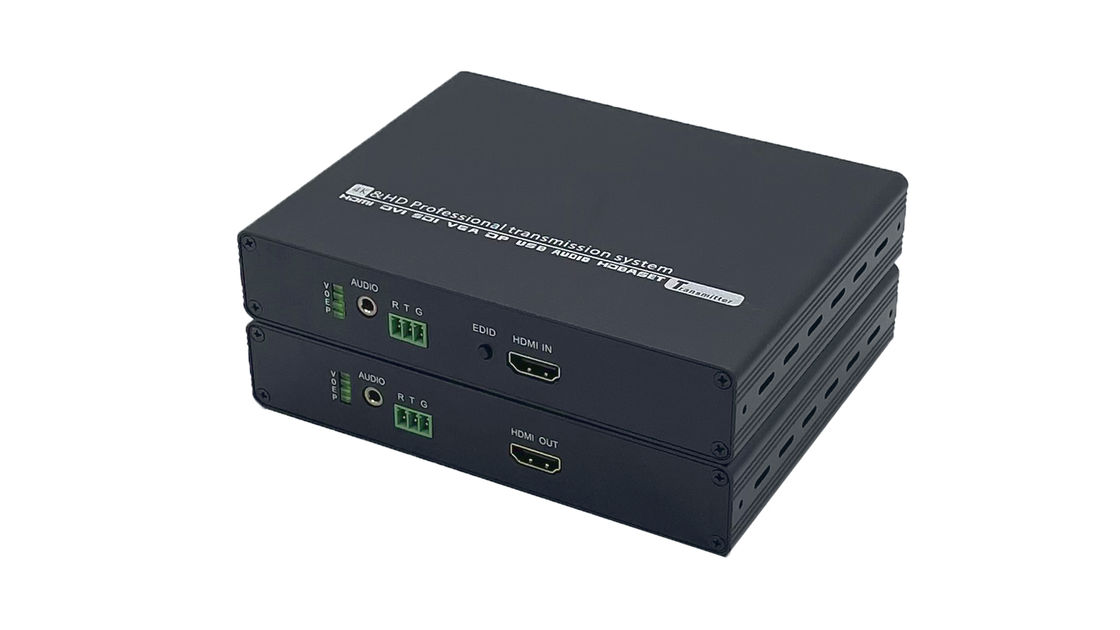

The 4K HDMI Extender over Optical Fiber is a high-performance device designed to transmit uncompressed HDMI signals over long distances using fiber optic technology. Ideal for complex application environments, this extender supports high-definition video, audio, serial data transmission, and more, ensuring seamless integration with various video equipment.
Uncompressed Transmission: Utilizes fiber optic cables to transmit uncompressed HDMI signals, ensuring high-quality, lossless video and audio over extended distances.
High-Resolution Support: Supports resolutions up to 4K at 30Hz, delivering clear and detailed visuals suitable for modern display technologies.
Advanced Video Processing: Equipped with a sophisticated FPGA video processing chip, the extender offers excellent image processing and transmission capabilities, resulting in smooth and stable signal delivery.
Comprehensive Functionality: Beyond video and audio, the extender supports serial data transmission, making it adaptable to a variety of complex application environments.
Broad Compatibility: The advanced interface processing chip ensures compatibility with a wide range of video equipment, enhancing flexibility and ease of integration.
Incorporating the 4K HDMI Extender over Optical Fiber into your setup provides a reliable, high-performance solution for extending HDMI signals, ensuring seamless integration with diverse video equipment and complex environments.
| Transmission Distance | 20KM, up to 80km |
| Interface | HDMI Port |
| Supports Digit Width | 10Bit |
| Bidirectional Transmission | 2 bidirectional /4 bidirectional /8 bidirectional |
| Built-in ESD Electrostatic Protection Circuit | Yes |
| Name | HDMI Optical Transceiver |
| Pixel Bandwidth | 300MHz, All Digital |
| Supports EDID Learning | Yes |
| Supports Multi-Channel Wavelength Division Multiplexing | Yes |
| Support Protocol | HDMI1.3 |
Home Theater Systems: optical hdmi extender can connect various HD video devices (such as Blu-ray players, game consoles, etc.) to TVs or projectors using HDMI optical transceivers to enjoy high-quality audio and video.
Commercial Displays: In shopping malls, exhibition halls, and other venues, businesses can utilize HDMI optical transceivers to set up high-definition large-screen display systems to attract customers' attention.
Conference Systems: In conference rooms, HDMI optical transceivers can be used to connect computers, projectors, and other equipment to achieve high-definition video conferencing and presentations.
Additionally, HDMI optical transceivers are also widely used in multimedia HD display systems, information release systems, traffic guidance systems, outdoor large-screen display systems, military command and exercise fields, and more.
In summary, the HDMI optical transceiver is a versatile and reliable device that enables high-quality HDMI signal transmission over long distances, making it an ideal choice for various applications that require high-resolution video and audio transmission.
