Product Details:
|
| Product Name: | HDMI Video Optical Extender | Size: | 16.9*11.1*2.5cm |
|---|---|---|---|
| Support Protocol: | HDMI1.3/HDMI Extender | Pixel Bandwidth: | 300MHz, All Digital |
| Interface: | HDMI-A Port | Input/output Level: | 1VP-P |
| Supports Digit Width: | 10Bit | Resolution: | Support 1920*1080@60Hz |
| Highlight: | 4K Fiber Optic Extender,20km Fiber Optic Extender,300MHz Fiber Optic Extender |
||

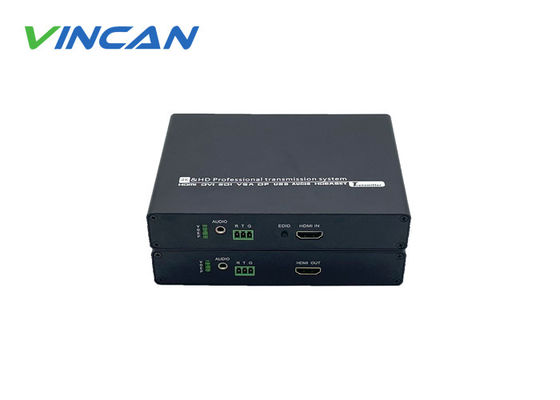

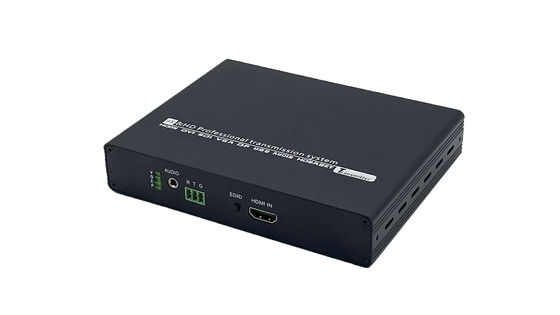

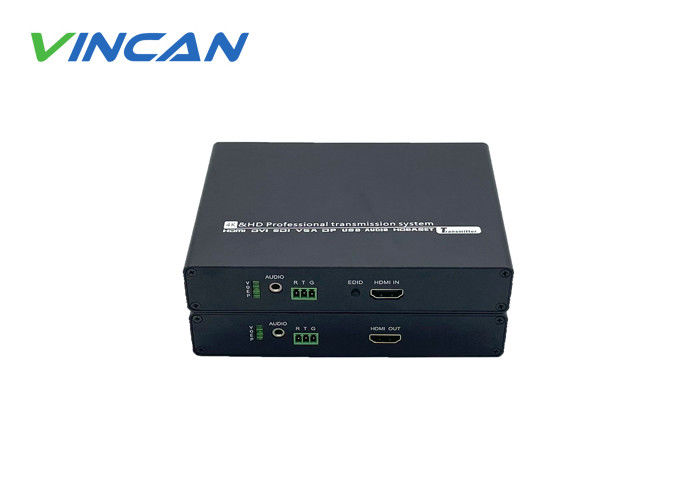

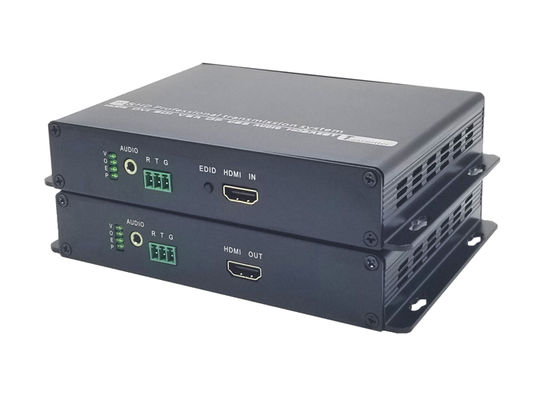

The HDMI HD Optical Terminal is a cutting-edge solution for long-distance, high-quality HDMI signal transmission. Designed to overcome the limitations of traditional HDMI cables, this HD optical terminal uses fiber optic technology to deliver crystal-clear 4K video and multi-channel audio over distances of up to 20 kilometers. Whether you're setting up a home theater, a professional broadcast studio, or a digital signage network, this HDMI HD optical terminal ensures reliable, interference-free signal transmission.
T
he Fiber Optic HDMI Extender, a revolutionary HDMI to HDMI extender adapter engineered for flawless 4K@60Hz HDR signal transmission over ultra-long 20km distances. This industrial-grade HDMI extender fiber system eliminates signal degradation
Product Features:
Technical Parameters:
| Video | Support protocol | HDMI1.3 |
| Pixel bandwidth | 300MHz, all digital | |
| Interface bandwidth | Total bandwidth 6.75Gbps | |
| Input/output level | 1VP-P | |
| Supports digit width | 10Bit | |
| Support resolution | VESA standard resolution; YUV format resolution | |
| Interface | HDMI-A port | |
| Impedance | 100Ω | |
| Recommend HDMI cable maximum input/output range | Less than 10M, at the resolution above 1920X1080@60Hz, using a balanced cable can be up to 30M | |
| Audio Frequency | Audio mode | Independent stereo |
| Interface | 3.5mm stereo audio socket | |
| Signal type | Forward stereo | |
| RS232 | Interface | Phoenix terminal |
| Signal direction | Forward transmission (optional two-way transmission) | |
| Baud rate | Adaptive, 4800-115200 | |

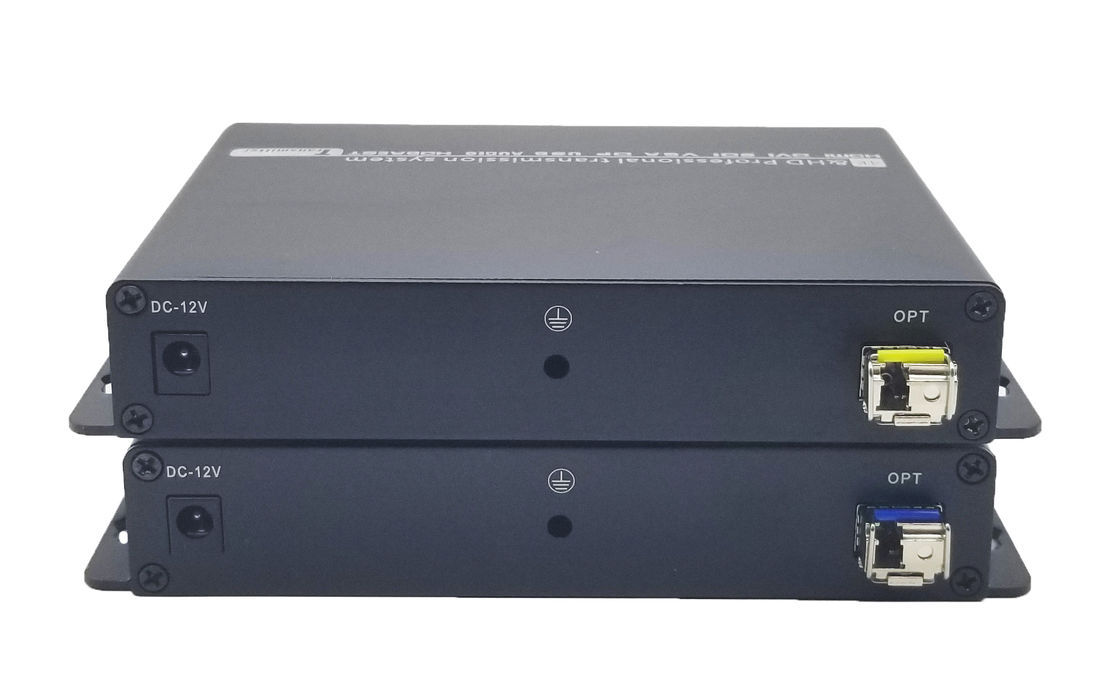

| Optical Fiber | Optical fiber interface | Single channel: LC port Rack: FC Optional |
| Fiber type | Single mode/multi-mode | |
| Wave length |
CWDM single-mode 1310nm/1470/1490/1510/1530/1550/1570/1590nm wavelength, multiplexer can through the above several kinds of modules connected to the corresponding wavelength division multiplexer and then transmitted through a single fiber |
|
| Interface bandwidth | 2.97Gbps | |
| Recommended maximum transmission distance | At 1920X1080@60, single-mode optical fiber: 10km | |
| Other | Power source | Single-channel: DC12V/1A (wide voltage 9V to 24V) Rack: 220V |
| ESD power protection | SMBJ14CA(Jiejie Micro) | |
| Maximum power consumption | Single channel: MAX 3W | |
| Working temperature | 0°~40°C/32°F~104°F | |
| Humidness | 20~90% RH(non-condensing) | |
| Storage temperature | -20°~60°C/-4°F~104°F | |
| Working hours | 7*24 hours |
Application and Scene:
The HDMI HD Optical Extenders widely used in exhibition, rail transit, radio and television, video conferencing, medical teaching, educational recording andbroadcasting, projection fusion and other industries with high video requirements.
Home Theater: Extend HDMI signals from Blu-ray players or gaming consoles to distant TVs or projectors.
Conference Rooms: Transmit high-quality video and audio for presentations and video conferencing.
Digital Signage: HD optical terminal deliver 4K content to displays in shopping malls, airports, and transportation hubs.
Broadcasting: this HDMI HD optical terminal ensure reliable signal transmission in live events and studio productions.
Security Monitoring: Transmit high-definition surveillance footage to control centers.
Industrial Control: This HDMI HD video optical terminal support remote monitoring and operation in industrial environments.
