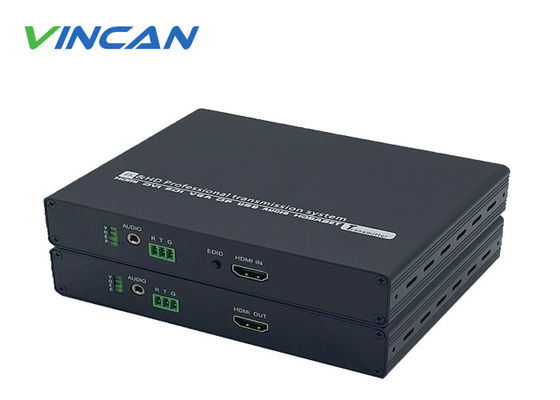

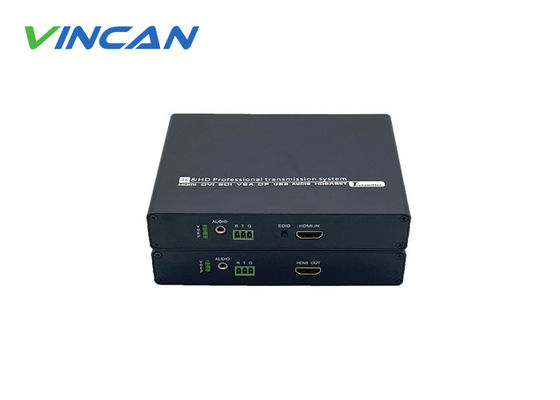

HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber

HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber
HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber
HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber

Large Image :  HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: OH0101B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pairs
Price: Negotiable
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pairs per week

HD HDMI Optical Terminal - Long-Distance HD HDMI Signal Transmission over Fiber

Description
Product Name: HDMI Video Optical Extender Interface: HDMI-A Port
Support Protocol: HDMI1.3/HDMI Extender Pixel Bandwidth: 300MHz, All Digital
Input/output Level: 1VP-P Interface Bandwidth: Total Bandwidth 6.75Gbps
Recommended Maximum Transmission Distance: At 1920X1080@60Hz Single-mode Optical Fiber: 10km
Highlight:

Fiber HDMI HD Optical Terminal

,

Long-Distance HDMI HD Optical Terminal

,

4K HDMI HD Optical Terminal

Product Description:

This HDMI fiber extender supports 1920X1080@60Hz  high-definition video and multi-channel audio transmission up to 20 kilometers! Designed to overcome the limitations of traditional HDMI cables, this HD optical terminal uses fiber optic technology to deliver crystal-clear 4K video and multi-channel audio . Whether it is a home theater, conference room or security monitoring, it can easily meet your needs. Fiber optic transmission is anti-interference, the signal is stable and has no delay, plug and play, and easy installation

This fiber optic HDMI extender also supports serial data transmission, audio transmission, and multi-signal compatibility, adapting to various complex environments such as broadcasting, medical imaging, security monitoring, and digital signage. The device integrates an advanced interface processing chip, ensuring compatibility with a wide range of HDMI video equipment on the market.



Product Features:

  • The transmission distance is 20KM, up to 80km; Supports multi-channel wavelength division multiplexing over fiber optic
  •  Support EDID learning, resolution up to 1920*1200@60Hz, backward compatible; Compatible I format
  • HDMI Extender over fiber optic support one independent forward analog stereo audio signal transmission
  •  Modular design, can mix a variety of video signals
  • HDMI Extender can install racks of 2/4 road/eight / 16 road, standard road u inch case 1/2 inch chassis / 4 u English case
  • Can increase the function of a KVM/usb/see /100/1000m network
  •  Bidirectional transmission: 2 bidirectional /4 bidirectional /8 bidirectional
  • HDMI to HDMI Extender support serial data bidirectional transmission, adaptive baud rate
  • Built-in ESD electrostatic protection circuit, can effectively prevent electrostatic damage



Technical Parameters:



Video Support protocol HDMI1.3
  Pixel bandw
idth
300MHz, all digital
  Interface bandwidth
  Input/output level 1VP-P
  Supports digit width 10Bit
  Support resolution VESA standard resolution; YUV format resolution
  Interface HDMI-A port
  Impedance 100Ω
  Recommend HDMI cable maximum input/output range Less than 10M, at the resolution above 1920X1080@60Hz, using a balanced cable can be up to 30M
Audio Frequency Audio mode Independent stereo
  Interface 3.5mm stereo audio socket
  Signal type Forward stereo
RS232 Interface Phoenix terminal
  Signal direction Forward transmission (optional two-way transmission)
  Baud rate Adaptive, 4800-115200
Optical Fiber Optical fiber interface Single channel: LC port Rack: FC Optional
  Fiber type Single mode/multi-mode
  Wave length

CWDM single-mode

1310nm/1470/1490/1510/1530/1550/1570/1590nm wavelength, multiplexer can through the above several kinds of modules connected to the corresponding wavelength division multiplexer and then transmitted through a single fiber

  Interface bandwidth 2.97Gbps
  Recommended maximum transmission distance At 1920X1080@60, single-mode optical fiber: 10km
Other Power source Single-channel: DC12V/1A (wide voltage 9V to 24V) Rack: 220V
  ESD power protection SMBJ14CA(Jiejie Micro)
  Maximum power consumption Single channel: MAX 3W
  Working temperature 0°~40°C/32°F~104°F
  Humidness 20~90% RH(non-condensing)
  Storage temperature -20°~60°C/-4°F~104°F
  Working hours 7*24 hours



Application and Scene:

The HDMI HD Optical Extenders suitable for home theater, conference room, digital signage, broadcasting, security monitoring and other scenarios. Whether it is long-distance transmission of high-definition video or ensuring stable signal without interference, this HDMI fiber optic extender is your ideal choice.

Home Theater: Extend HDMI signals from Blu-ray players or gaming consoles to distant TVs or projectors.

Conference Rooms: Transmit high-quality video and audio for presentations and video conferencing.

Digital Signage: HD optical terminal deliver 4K content to displays in shopping malls, airports, and transportation hubs.

Broadcasting: this HDMI HD optical terminal ensure reliable signal transmission in live events and studio productions.

Security Monitoring: Transmit high-definition surveillance footage to control centers.

Industrial Control: This HDMI HD video optical terminal support remote monitoring and operation in industrial environments.
