Product Details:
|
| Support Protocol: | DVI-D | Interface Bandwidth: | Bandwidth 6.75Gbps |
|---|---|---|---|
| Transmission Distance: | 20KM--80KM | Product Name: | DVI HD Optical Extender |
| Transmitter: | Input Port: 1 X DVI-D Output Port: 1 X FIBER | Interface: | 3.5mm Stereo Audio Socket |
| Transmission Type:: | Optical Fiber Transmission (single-mode Or Multi-mode) | 3.5mm Stereo Audio Socket: | The Resolution Is Less Than 5M, And The Resolution Above 1920X1080@60Hz Can Be Up To 30M When A Balanced Cable Is Used |
| Highlight: | High Performance Fiber Optic Extender,Low Latency Fiber Optic Extender,4K HD Fiber Optic Extender |
||

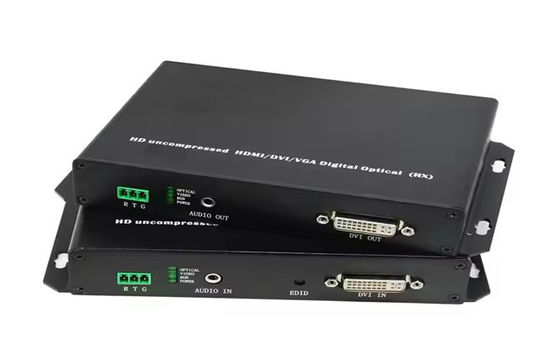

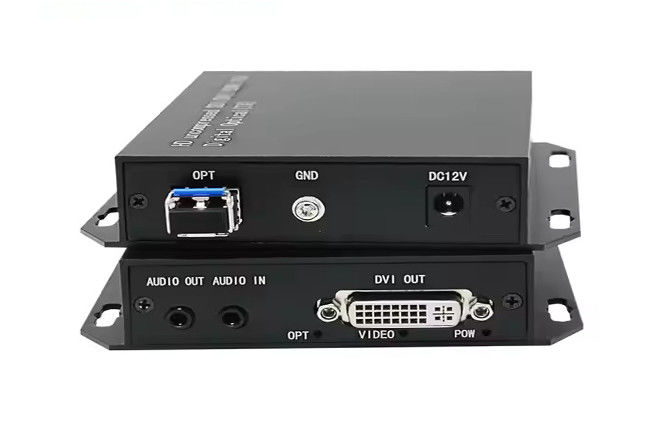

DVI HD Optical Extender – High-Performance Long-Distance DVI Over Fiber Solution
The DVI HD Optical Extender is a high-performance fiber optic DVI extender designed for long-distance, lossless video and audio transmission. Utilizing advanced optical fiber technology, this DVI extender over fiber supports distances up to 20KM, ensuring stable, interference-free, and high-quality digital video transmission. It is ideal for applications requiring crystal-clear 1080p video output, low-latency signal transmission, and professional-grade reliability.
✅ Long-Distance DVI Signal Transmission – Supports DVI over fiber up to 20KM, solving the limitations of traditional copper cables.
✅ High-Definition 1080p Video Output – Ensures lossless, high-quality digital video transmission with no compression or delay.
✅ Stable & Interference-Free Performance – Optical fiber transmission prevents signal degradation, electromagnetic interference (EMI), and radio frequency interference (RFI).
✅ Plug-and-Play Installation – The DVI to DVI fiber extender is easy to set up and supports seamless connectivity with DVI source devices and display screens.
✅ Broad Compatibility – Works with computers, media players, security cameras, projectors, LED walls, and medical imaging systems.
| Video | Support protocol | DVI-D |
| Pixel bandwidth | 300MHz, all digital | |
| Interface bandwidth | Total bandwidth 6.75Gbps | |
| Input/output level | 1VP-P | |
| Support resolution | VESA standard resolution; YUV format resolution | |
| Interface | 24+5 DVI-I interface | |
| Impedance | 100 Ω | |
| The maximum input/output distance of a DVI cable is recommended | The resolution is less than 5M, and the resolution above 1920X1080@60Hz can be up to 30M when a balanced cable is used | |
| Audio Frequency | Audio mode | Support for independent audio |
| Interface | 3.5mm stereo audio socket | |
| Signal type | Forward stereo | |
| RS232 | Interface | Phoenix terminal |
| Signal direction | Forward transmission (optional two-way transmission) | |
| Baud rate | Adaptive, up to 115200bps | |
| Optical Fiber | Optical fiber interface | Single channel: LC interface Rack type: (LC/FC/ST/SC) Optional |
| Fiber type | Single mode/multi-mode | |
| Wave length | Single mode 1310nm (forward data); Single mode 1310-155 (bidirectional data) | |
| Interface bandwidth | 2.97 Gbps | |
| Recommended maximum transmission distance | At 1920X1080@60,Single-mode fiber: 10km | |
| product name | DVI HD optical extender |
