Product Details:
|
| Transceiver Type: | MINI DVI | Bandwidth: | 10.2Gbps |
|---|---|---|---|
| Compatibility: | Universal | Transmission Distance: | 2KM |
| Colour: | Black | Resolution Support: | 4K |
| Application: | Video And Audio Transmission | Video Resolution: | 480i ~1080p50/60Hz, 1920x1200@60Hz |
| Highlight: | Audio Fiber Optic Extender,Video Fiber Optic Extender |
||

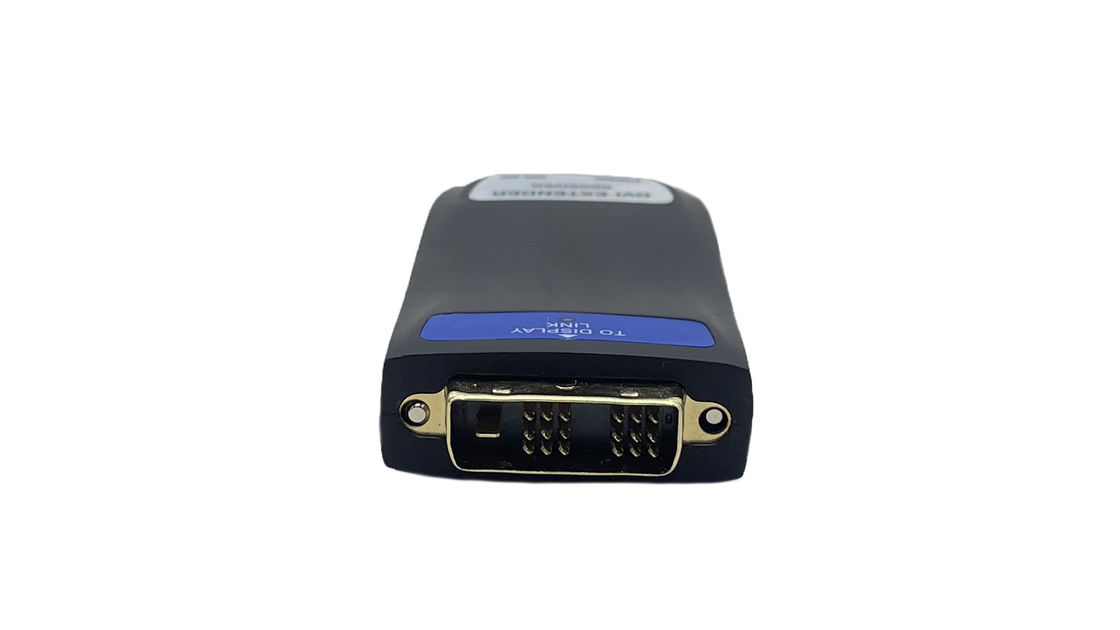

The MINI DVI Optical Fiber Transmitter is designed to provide high-performance, long-distance transmission of uncompressed DVI video signals over fiber optics. It supports resolutions up to 1080p for clear, high-quality video and ensures zero-latency transmission, making it suitable for live broadcasting, video conferencing, and security applications. This compact transmitter offers a simple plug-and-play solution for easy integration into any AV setup or broadcast environment, supporting both real-time video and HD video transport over fiber.
| Video | HDMI compatible | HDMI 1.3 |
| DVI compatible | DVI 1.0 | |
| Video bandwidth | 10.2Gbps | |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ backward compatible | |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Color depth | 8/10/12-bit (1080P60Hz) | |
| HDMI audio format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode optical fiber transmission | |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) | |

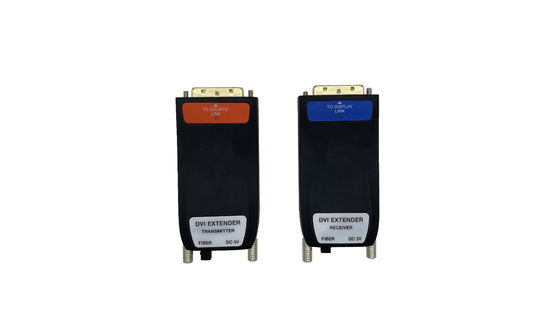

| Port | transmitter |
Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver |
Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
|
| Fuselage | shell | Zinc alloy shell |
| colour | Black | |
| dimension | Transmitter/receiver: 75.5mm(L)× 41mm(W)×16.5mm(H) | |
| weight | Transmitter: 113g, receiver: 111g | |
| Power source | DC 5V/1A | |
| Maximum power consumption | Transmitter: 2.74W (Max), receiver: 3.03W (Max) | |
| Operating temperature | 0-40℃ | |
| Relative humidity | -20-90%RH (non-condensing) | |
| Storage temperature | - 20-60℃ |
Broadcasting: Reliable high-definition video transmission for live events and media production.
AV Systems: Ideal for AV integration, conference rooms, and control centers.
Video Conferencing: Supports real-time video communication with high-quality video transport.
Security Monitoring: Transmits video signals over long distances for surveillance systems.
Educational Systems: Used for distance learning and training applications requiring high-quality video.
