Product Details:
|
| Long-Distance Transmission:: | Up To 20km Over Single-mode Fiber | Product Name: | 12G SDI Fiber Extender |
|---|---|---|---|
| Bandwidth: | 12Gbps | Storage Temperature: | -20°C To 70°C |
| Dimension: | 94.5*71*26mm | Transceiver Type: | 12G SDI |
| Resolution Support: | 4K | Color: | Black |
| Highlight: | 4K Optical Extender,12GSDI Optical Extender,Full Digital Optical Extender |
||

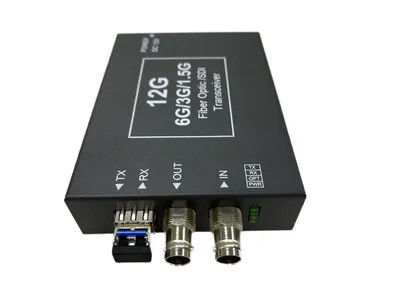

The 12G SDI Uncompressed 4K Fiber Extender provides reliable, long-distance, real-time video transmission for broadcast and professional AV applications. Designed to support 12G-SDI uncompressed 4K video, embedded audio, and bi-directional data, this 12G SDI fiber extender ensures lossless signal transport over fiber optics, up to 20 kilometers. With advanced FPGA video processing technology, the extender converts SDI video into optical signals, ensuring high-speed transmission with no frame loss or image degradation. The integrated clock recovery technology guarantees smooth and zero frame loss during long-distance transmission, ideal for critical applications like live broadcasting and professional AV setups.
| Category | Details |
|---|---|
| Interface Type | SDI input/output, LC fiber optic port |
| Supported Protocols | SMPTE 259M, 292M, 424M, 2082-1 |
| Resolution | Supports 720p, 1080i, 1080p, 4K, 8K |
| Transmission Distance | Up to 20 km over single-mode fiber |
| Video Format | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI |
| Audio Support | Embedded audio (4/8/16 channels) |
| Power Supply | DC 5V or AC 110-240V power adapter |
| Casing Material | Aluminum alloy, industrial-grade design |
| Operating Temperature | -20°C to 60°C |
| Latency | Less than 1 ms |
| Dimensions | Varies by model (portable or rack-mounted) |
The 12G SDI Uncompressed 4K Fiber Extender is widely used across various industries that demand high-quality, real-time video transport. Key applications include:
Broadcast Television: Provides 4K UHD video transport for remote production, live broadcasts, and mobile studios.
Medical Imaging: Essential for medical education, surgical procedures, and live video feeds where high clarity is critical.
Video Conferencing: Supports real-time 4K video conferencing, ensuring clear video and audio quality for corporate communications.
Education & Training: Perfect for live streaming, remote learning, and distance education that require high-definition video.
Surveillance Systems: Ideal for long-distance security camera feeds and surveillance networks that require 4K video resolution.
