Product Description:

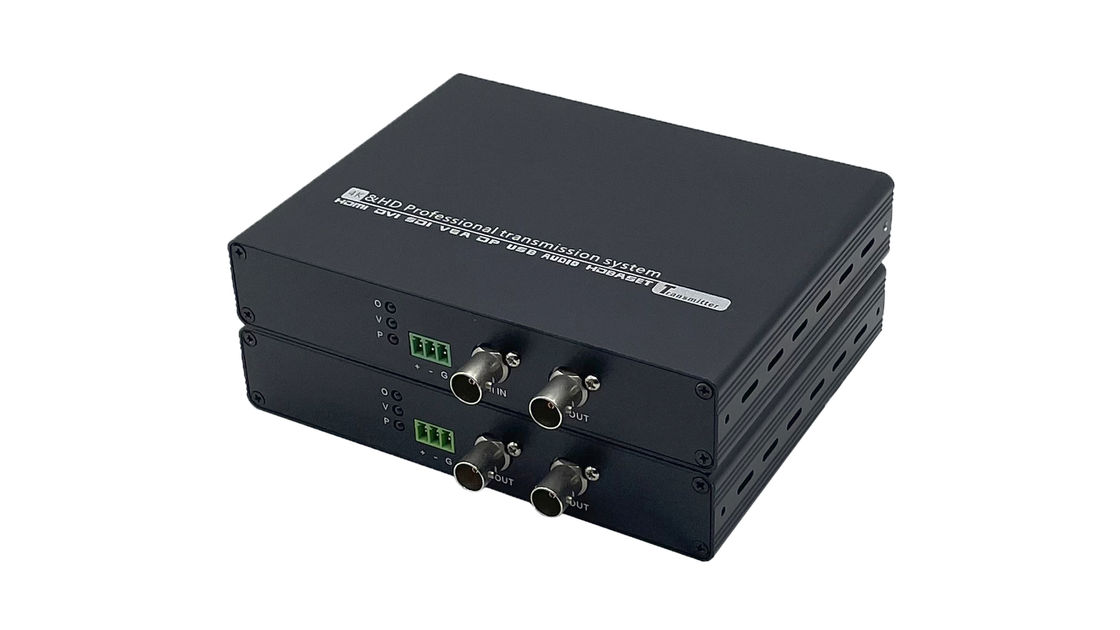

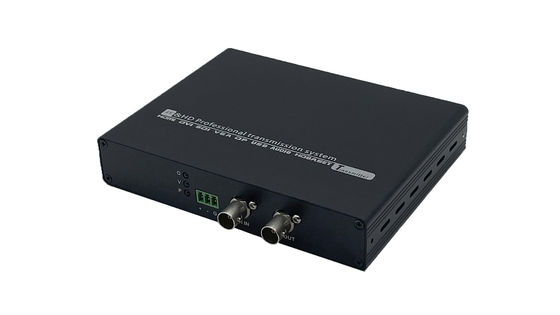

The 12G-SDI HD Video Optical Terminal is a high-performance device designed for transmitting high-definition video signals over long distances. It supports 12G-SDI resolution, enabling data rates up to 12 Gbps, which is essential for 4K video broadcasting and production. This terminal utilizes 12G-SDI SFP optical modules to ensure reliable performance in environments where signal integrity is critical. Additionally, it offers 12G-SDI to HDMI conversion capabilities, providing versatility in various professional video applications.
Features:
High-Speed Data Transmission: Supports data rates up to 12 Gbps, suitable for 4K video broadcasting and production.
Long-Distance Transmission: Utilizes fiber optic technology to transmit signals over extended distances, ensuring minimal signal loss.
Versatile Connectivity: Features 12G-SDI SFP optical modules for flexible integration into existing systems.
HDMI Conversion: Offers 12G-SDI to HDMI conversion, enabling compatibility with a wide range of display devices.
Technical Parameters:
| Signal Type |
12G-SDI (Serial Digital Interface) |
| Data Transmission Rate |
Up to 12 Gbps |
| Resolution Support |
4K (3840x2160) @ 60Hz |
| Transmission Distance |
Up to 300 meters (fiber transmission, depending on fiber type) |
| Fiber Type |
Single-mode or Multi-mode Fiber |
| Input Interface |
12G-SDI BNC Connector |
| Output Interface |
12G-SDI BNC Connector |
| Power Supply |
DC power, typically 12V-24V |
| Operating Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Durability |
Over 500 plug/unplug cycles |
| Dimensions |
Specific dimensions vary by model |
| Weight |
Specific weight varies by model |
| Compliance Standards |
RoHS, CE, FCC |
| Warranty |
1-year limited warranty |
12G SDI optical extender, 20KM, 12G SDI optical extender
Applications:
- Broadcast and Television: Essential for television stations and studios, allowing seamless transmission of live broadcasts and recorded content.
- Live Event Production: This 12G-SDI HD video optical terminal is perfect for concerts, sports events, and conferences, providing reliable video links for large-scale productions.
- Post-Production Studios: The HDMI extender is used in video editing and special effects studios to maintain high video quality during editing processes.
- Video Surveillance Systems: The 3G-SDI SFP Optical Module Ideal for high-definition surveillance setups, ensuring real-time transmission of video data.
- Data Centers and Control Rooms: Facilitates centralized management of high-definition video signals, enhancing data processing efficiency.
Incorporating the 12G-SDI HD Video Optical Terminal into your video transmission system enhances flexibility and performance, meeting the demanding requirements of modern broadcasting and production environments.
