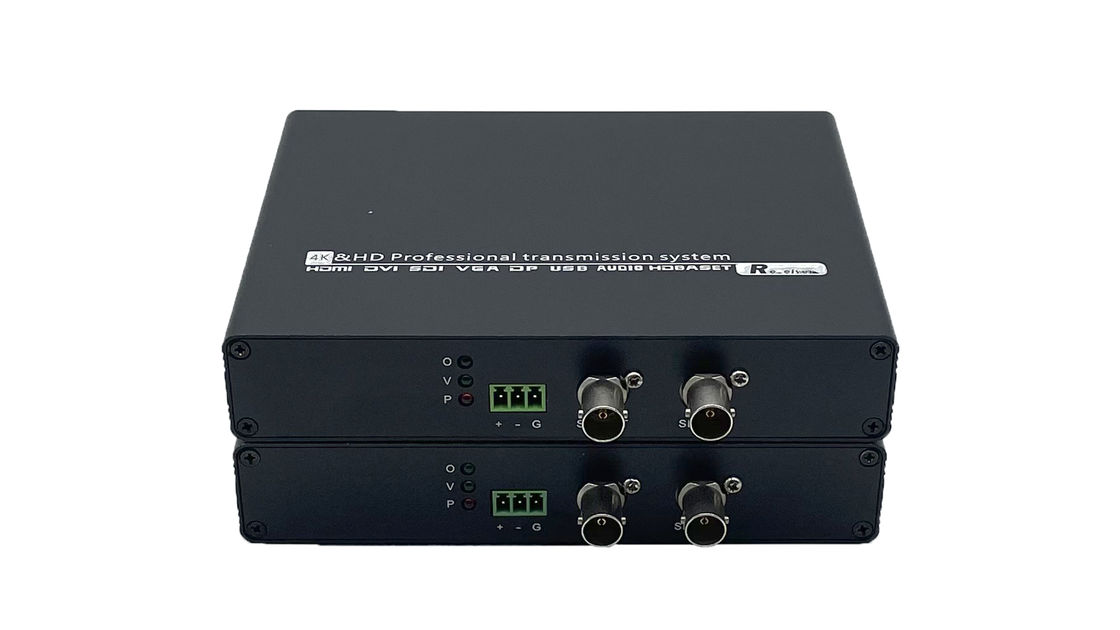

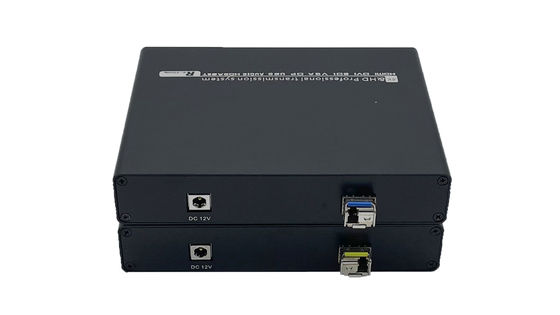

Name: 3G SDI Fiber Extender - HD Video Transmission with Long-Distance Support
Brand: Shenzhen Winlink Technology Co., Limited
SKU: OS0101-3G
Price: 175.00 USD
Availability: InStock

Place of Origin:

Mainland China

Brand Name:

SDI Fiber Optic Extender

Certification:

CE,FCC and RoHs

Model Number:

OS0101-3G

Minimum Order Quantity:

1pcs

Price:

Negotiable

Packaging Details:

Carton box and standard export package

Delivery Time:

2-3 days

Payment Terms:

T/T, Western Union, MoneyGram

Supply Ability:

1000 pcs per week

Signal Class:

3G/HG-SDI Signal

Signal Direction:

Reverse 485

Signal Amplitude:

800mV±10%

Video Interface:

75-5Ω BNC Connector

Support Resolution:

1080P60HZ/50HZ;

Cable Equalization:

250m @ 270Mbit/s, 140m @ 1.5Gbit/s,80m @ 2.97Gbit/s

Highlight:

High Speed SDI Fiber Extender

Plug and Play SDI Fiber Extender

Easy Setup SDI Fiber Extender

Broadcasting: SDI Fiber Optic Extender is widely used in television studios for transmitting HD video signals between cameras, switchers, and control rooms over long distances.

Live Events: Ideal for concerts, sports events, and conferences, allowing camera setups positioned far from production equipment while maintaining high-quality video.

Film Production: Facilitates connections between cameras and monitors or recorders, especially in remote or dynamic filming scenarios.

Post-Production Studios: SDI optical extender used in editing suites to connect video playback devices with editing systems, ensuring high-definition video quality.

Surveillance Systems: Employed in security applications to transmit high-quality video feeds from cameras to monitoring stations over significant distances.

AV Installations: Perfect for commercial AV setups in venues like theaters, auditoriums, and corporate spaces, ensuring reliable signal transmission for presentations and events.

These applications highlight the versatility and essential role of 3G SDI Fiber Optic Extender in the professional video industry.

Video	Signal standard	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
	Data rate	270Mbit/s - 1.48Gbit/s – 2.97Gbit/s
	Cable equalization	250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 2.97Gbit/s
	Signal amplitude	800mV±10%
	Quiver	>0.2UI
	Support resolution	1080P60HZ/50HZ;1080P30HZ/25HZ/24HZ;1080I60HZ/50HZ;720P60HZ/50HZ;576i;480i
	Video interface	75-5Ω BNC connector
	Impedance	75 ohm
RS485	Interface	3PIN Phoenix terminal
	Signal direction	Reverse 485
	Baud rate	Adaptive, up to 115200bps
