Product Details:
|
| Product Name: | HDMI Fiber Optic Extender | Resolution: | 1920X1080@60Hz |
|---|---|---|---|
| Pixel Bandwidth: | 300MHz, All Digital | Supports Digit Width: | 10Bit |
| Support Protocol: | HDMI1.3 | Optical Fiber Interface: | Optical Fiber Interface |
| Maximum Length:: | Up Fo 20km | Interface Bandwidth: | Total Bandwidth 6.75Gbps |
| Highlight: | Ultra-High-Speed HDMI Fiber Optic Extender,4K UHD HDMI Fiber Optic Extender,10Bit Digit HDMI Fiber Optic Extender |
||

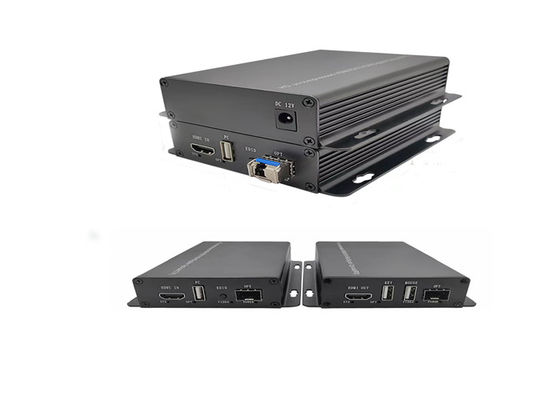

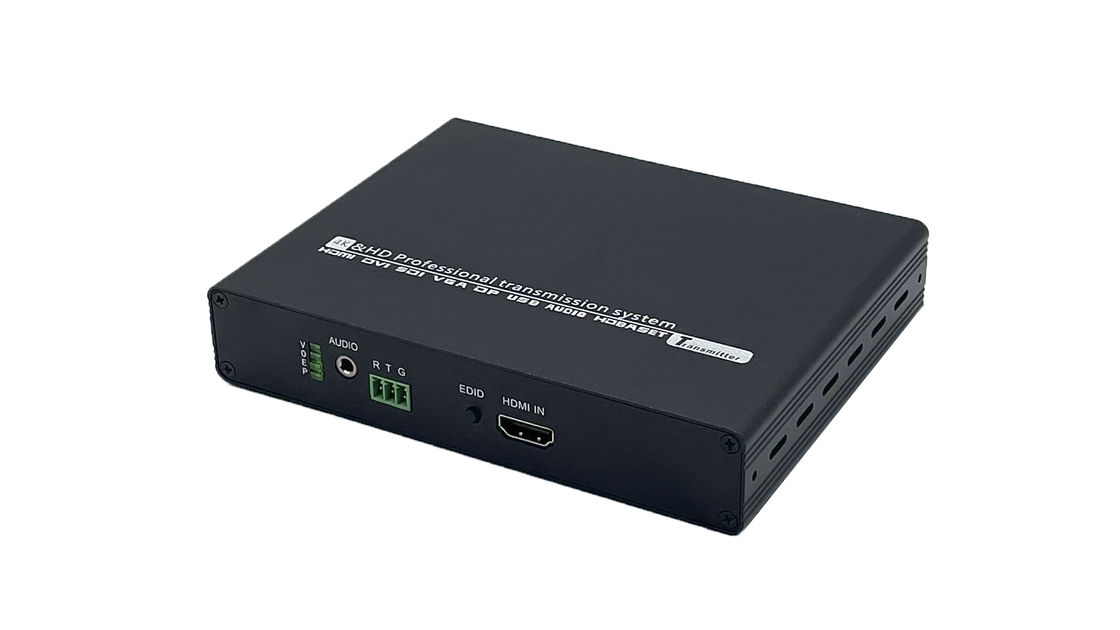

The HDMI Fiber Optic Extender is a high-performance HDMI extender over fiber, designed for long-distance HDMI signal transmission with superior stability and efficiency. Equipped with an advanced FPGA video processing chip, this 1080p HDMI fiber extender delivers smooth, lossless, and interference-free video and audio transmission, ensuring crystal-clear image quality over long distances.
This long-distance HDMI 1.3 extender supports seamless compatibility with a wide range of HDMI video equipment, making it ideal for broadcasting, video conferencing, security monitoring, and professional AV applications. The fiber optic audio video extender guarantees high-bandwidth, real-time signal transmission, offering a reliable and efficient HDMI signal extension solution for both commercial and industrial environments.
✅ HDMI Extender Over Fiber for long-distance, high-quality signal transmission
✅ 1080p HDMI Fiber Extender ensures lossless video and audio over optical fiber
✅ Long Distance HDMI 1.3 Extender with seamless device compatibility
✅ Fiber Optic Audio Video Extender for broadcasting, security, and digital signage
✅ Advanced FPGA Processing Chip for smooth and stable signal extension
| Video | Support protocol | HDMI1.3 /HDMI Fiber Cable Extender |
| Pixel bandwidth | 300MHz, all digital | |
| Interface bandwidth | Total bandwidth 6.75Gbps | |
| Supports digit width | 10Bit | |
| Support resolution | VESA standard resolution; YUV format resolution | |
| Interface | HDMI-A port | |
| Impedance | 100Ω | |
| Recommend HDMI cable maximum input/output range | Less than 10M, at the resolution above 1920X1080@60Hz, using a balanced cable can be up to 30M | |
| Audio Frequency | Audio mode | Independent stereo |
| Interface | 3.5mm stereo audio socket | |
| Signal type | Forward stereo | |
| RS232 | Interface | Phoenix terminal |
| Signal direction | Forward transmission (optional two-way transmission) | |
| Baud rate | Adaptive, 4800-115200 | |
| Optical Fiber | Optical fiber interface | Single channel: LC port Rack: FC Optional |
| Fiber type | Single mode/multi-mode | |
| Interface bandwidth | 2.97Gbps | |
| Recommended maximum transmission distance | At 1920X1080@60, single-mode optical fiber: 10km | |
| Other | Power source | Single-channel: DC12V/1A (wide voltage 9V to 24V) Rack: 220V |
| Maximum power consumption | Single channel: MAX 3W | |
| Working temperature | 0°~40°C/32°F~104°F | |
| Humidness | 20~90% RH(non-condensing) |
HDMI Fiber Cable Extender is widely used in exhibition, rail transit, radio and television, video conferencing, medical teaching, educational recording and broadcasting, projection fusion and other industries with high video requirements.
Home Theater Systems:HDMI Fiber Cable Extenders allow homeowners to position their media players, game consoles, and projectors far apart, ensuring high-quality audio and video without signal loss.
Educational Institutions: Classrooms and lecture halls can benefit from HDMI Fiber Cable Extenders, allowing instructors to connect devices to projectors or large displays, enhancing the learning experience.
Event Venues: For live events, conferences, and exhibitions, HDMI Fiber Cable Extender facilitate connections between multiple video sources and screens, ensuring high-quality broadcasts throughout the venue.
