Product Details:
|
| HDMI Compatible: | HDMI 1.3 | DVI Compatible: | DVI 1.0 |
|---|---|---|---|
| Transmission Distance: | 2KM | Product Name: | MINI DVI Optical Transceiver |
| Transmitter: | Input Port: 1 X DVI-D Output Port: 1 X FIBER | Receiver: | Input Port: 1 X FIBER1 X Micro USB Output Port: 1×DVI-D |
| Video Resolution: | 480i ~1080p50/60Hz, 1920x1200@60Hz | ||
| Highlight: | 10.2Gbps MINI DVI Optical Transceiver,HDMI 1.3 MINI DVI Optical Transceiver,2KM MINI DVI Optical Transceiver |
||

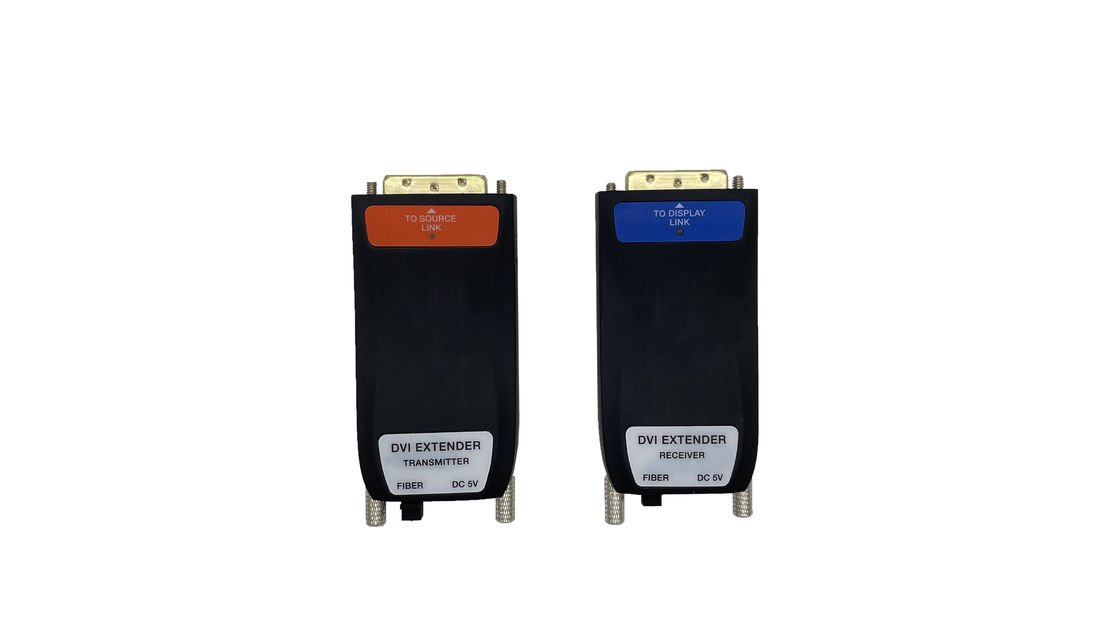

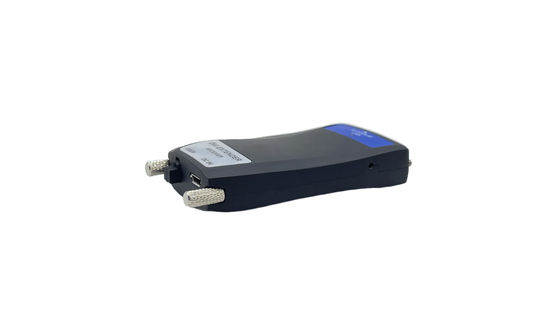

MINI DVI optical transceiver is a miniaturized device used to solve the problem of long-distance high-speed transmission of DVI/HDMI video images. MINI DVI optical fiber transmitter can support EDID learning, compatible with different display devices with different resolutions. DVI optical transmitter includes a signal transmitter and a receiver, using USB power supply, can be powered through the projector, display, video processing equipment USB interface, to solve the problem of on-site installation power supply. The device is transmitted through a single mode optical fiber, which can travel up to 2KM. The biggest feature of the product is small, easy to install, low heat.MINI DVI optical transceiver 2km signal extension with no delay, no compression and high quality.
| Video | HDMI compatible | HDMI 1.3/MINI DVI optical transceiver |
| DVI compatible | DVI 1.0 | |
| Video bandwidth | 10.2Gbps | |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ backward compatible | |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Color depth | 8/10/12-bit (1080P60Hz) | |
| HDMI audio format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode optical fiber transmission | |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) | |
| Port | transmitter |
Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver |
Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
|
| Fuselage | shell | Zinc alloy shell |
| colour | Black | |
| dimension | Transmitter/receiver: 75.5mm(L)× 41mm(W)×16.5mm(H) | |
| weight | Transmitter: 113g, receiver: 111g | |
| Power source | DC 5V/1A | |
| Maximum power consumption | Transmitter: 2.74W (Max), receiver: 3.03W (Max) | |
| Operating temperature | 0-40℃ | |
| Relative humidity | -20-90%RH (non-condensing) | |
| Storage temperature | - 20-60℃ |
The MINI DVI optical transceiver are widely used in stage rental, exhibition, foreign language travel, video conferencing, rail transit, radio and television and other different industries.
The MINI DVI optical transceiver ideal for connecting Mini DVI sources, such as laptops and computers, to projectors or large displays in conference rooms, auditoriums, and event spaces, ensuring high-quality video transmission over long distances.
Utilized in broadcasting environments where video signals need to be transmitted from cameras to mixing consoles or monitors over considerable distances without quality loss, enhancing live production capabilities.
The MINI DVI optical transceiver used in high-end home theaters to extend Mini DVI connections from media sources to projectors or large screens, ensuring that high-resolution content is displayed without degradation.
These applications showcase the versatility and effectiveness of Mini DVI optical transceivers across various sectors, emphasizing their importance in delivering high-quality video transmission in diverse environments.
