Product Details:
|
| Wall Modes: | 1x2, 1x3, 1x4 | Power Consumption: | 24watts(Maximun) |
|---|---|---|---|
| Working Time: | 365*7*24hrs | Input Video Signal: | 0.5-1.0 Volts P-p |
| Dimension: | 420x300x44mm | Input: | 1 X HDMI Type A Female |
| Control: | R , RS-232 , TCP/TP , Buttons | Hdmi Input: | HDMI 1.3, DVI 1.0, HDMI Embedded Audio |
| Highlight: | 1X3 Video wall Controller,4K60hz EDID Video Wall Controller,1X4 Video wall Controller |
||

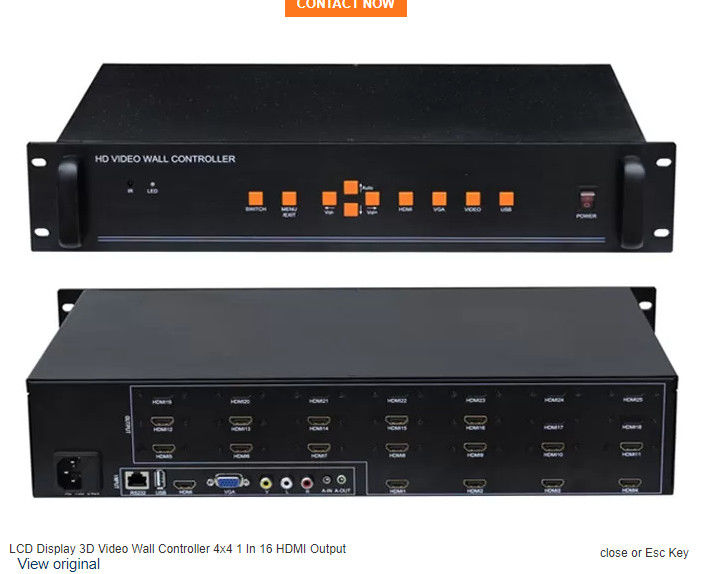

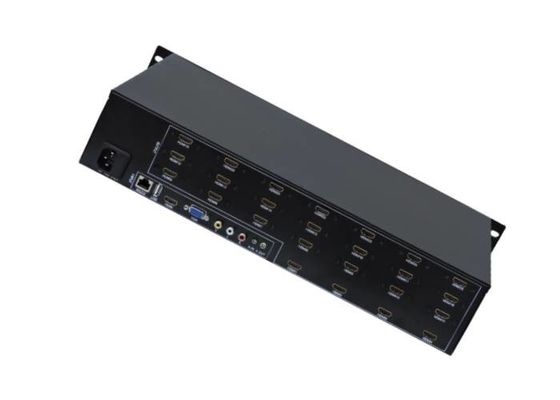

The HDMI Video Wall Controller is a revolutionary product that combines the latest technology with user-friendly design to provide an unparalleled viewing experience. This high-definition multimedia interface (HDMI) video wall processor is perfect for creating multi-screen display systems that offer high-quality resolution and compatibility with various devices.
The HDMI Video Wall Controller is a cutting-edge device that allows you to connect multiple HDMI sources to a single display. It is equipped with advanced technology that enables seamless switching between modes, making it easy to customize your viewing experience. With a compact and sleek design, this controller is perfect for both commercial and personal use.
| Description | HDMI 1080 P 4 Input 12 Output 3.5 U Casing Video Wall Controller 2x2 |
| Inputs (optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| System control software | CCS Client end,ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| Consumption | 12w per channel |
| Working temperature | "-20℃--60℃ |
| Working humidity | 5-95% |
| Serial port | RS-232, 9 pin, D-type connector |
| Chassis size | 1U/2U/3.5U/7U/15U standard rackmount chassis |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed | Self-adaptive 10M or 100M,Full duplex or half duplex |
TheHDMI Video Wall Controller is designed to support up to 10 display units, making it perfect for large-scale multi-screen display systems. With its advanced video processing technology, it can handle high-resolution videos and images, ensuring a high-quality and immersive viewing experience for the audience.
To enhance the user experience, the HDMI Video Wall Controller comes with a user-friendly multi-display management software. This software allows users to easily control and manage the displays, such as adjusting the display order, setting the resolution, and creating custom layouts. It also supports remote control, making it convenient for users to manage the displays from a distance.
The HDMI Video Wall Controller is not just a simple video wall controller, it is also a powerful matrix controller that allows users to switch between different input sources seamlessly. This is perfect for applications where multiple video sources need to be displayed on different screens simultaneously, such as in control rooms, conference rooms, and event venues.
