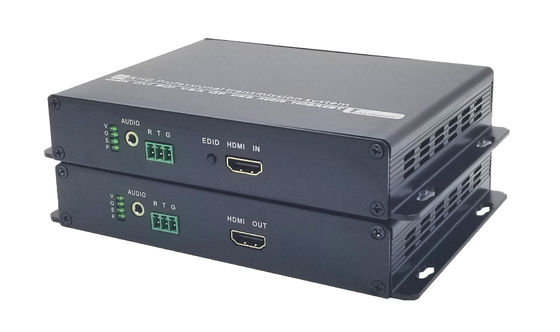

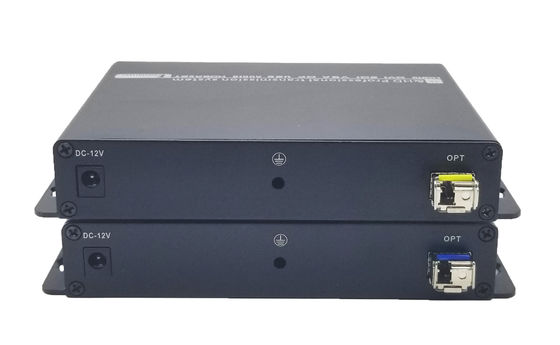

RS232 4k hdmi extender over fiber optic up to 20km length with separate audio port

Large Image : RS232 4k hdmi extender over fiber optic up to 20km length with separate audio port

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WL-HD201

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable

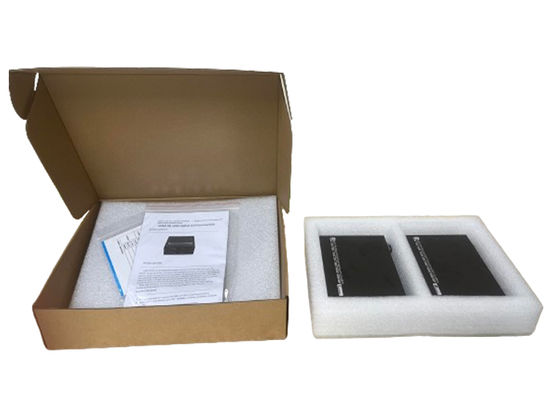

Packaging Details:	Carton box and standard export package for RS232 4k hdmi extender over fiber optic up to 20km length with separate audio port
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs per week

Contact Now

RS232 4k hdmi extender over fiber optic up to 20km length with separate audio port

Description

Interface Bandwidth:	Total Bandwidth Of 6.75 Gbps	Support Digital Bit Width:	10Bit
Impedance:	100Ω	Audio Mode:	Independent Stereo
Fiber Interface:	Single Route: LC Interface Rack Type: FC Optional	Fiber Type:	Single Mode / Multi Mode
Highlight:	16:9 LCD Video Wall Controller , 1920x1080 LCD Video Wall Controller

Product description:

HDMI The HD uncompressed optical terminal machine transmits HD video signals over long distances through optical fiber,

and supports serial port data transmission and audio functions, which can adapt to a variety of complex application environments.

The device uses advanced FPGA video processing chip, has excellent image processing and transmission capabilities,

make the signal transmission more smooth and stable, is a reliable, high performance, efficient HDMI signal extension mode.

The advanced interface processing chip used can be compatible with more video devices on the market.

Widely used in exhibition, rail transit, radio and television, video conference, medical teaching, education recording, projection

fusion and other high requirements for video industries.

Specification:

video frequency	Support agreement	HDMI 1.3
	Pixel bandwidth	300 MHz, full number
	Interface bandwidth	Total bandwidth of 6.75 Gbps
	Input output level	1VP-P
	Support digital bit width	10Bit
	Support resolution	VESA standard resolution; YUV format resolution
	joggle	The HDMI-A interface
	impedance	100Ω
	Recommended maximum input / output distance for HDMI cable	Less than 10M, up to 30M at a resolution above 1920X1080@60Hz
audio frequency	Audio mode	Independent stereo
	joggle	3.5mm stereo audio socket
	Signal type	Positive stereo
RS232	joggle	Phoenix terminal
	sense	Forward transport (optional bidirectional transfer)
	Baud rate	Adaptive, 4800-115200
fibre-optical	Fiber interface	Single route: LC interface rack type: FC optional
	Fiber type	Single mode / multi mode
	wavelength	CWDM single mode 1310nm / 1470 / 1490 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 NM can connect the corresponding wave division multiplexing device through the above modules and then transmit through an optical fiber
	Interface bandwidth	2.97Gbps
	The maximum transmission distance is recommended	At 1920X1080@60, Single-mode optical fiber: 10km
other	source	Single circuit: DC 12V / 1A (wide voltage 9V~24V) rack type: 220V
	ESD power protection	SMBJ14CA (Jiejie Micro)
	maximum power dissipation	Single route: MAX 3W
	working temperature	0°~40°C/32°F~104°F
	humidity	20 ~ 90% RH (no condensation))
	Storage temperature	-20°~60°C/-4°F~104°F
	operate time	7 * 24 Hours

RS232 4k hdmi extender over fiber optic up to 20km length with separate audio port 0
