1-ch 3g-sdi single mode fiber extender

Product Introduction

3G-SDI uncompressed video optical terminal is a professional real-time high-definition uncompressed

optical fiber transmission equipment that solves 1 channel of 3GSDI audio and video and

1 channel of two-way reverse data long-distance transmission, and supports ASI transmission.

Using the advanced FPGA video processing chip, the video is converted into light for long-distance transmission,

and the clock recovery technology is added, so that the digital video in the transmission process, no frame loss, no screen card.

It is widely used in radio and television, video conferencing, medical teaching, educational recording and broadcasting,

security monitoring and other industries with high video requirements.

Product Features:

1.Supports digital SDI HD uncompressed optical fiber long-distance transmission;

2.Support 3G/HD/SDSDI input adaptive;

3.Support resolution up to 1080P60HZ, backward compatible;

4.Removable SFP module LC optical port (Multiple FC optical ports);

5. Support standard 20KM module, optional 20/40/80KM transmission distance;

6. Supports the design of a plug-in chassis;

7.Supports the combination of rack and box;

8.Support multiplex administration;

9.Support electric plug;

10.Supports clock recovery;

11.Supports ASI-SDI;

13.Support OEM/ODM special function customization: audio/control data/switch/telephone/Ethernet;

14.1-ch 3g-sdi single mode fiber extender;

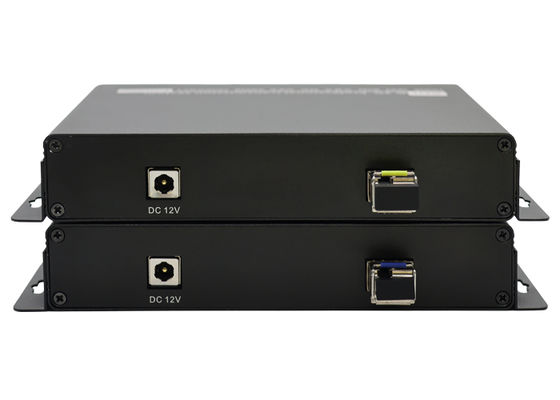

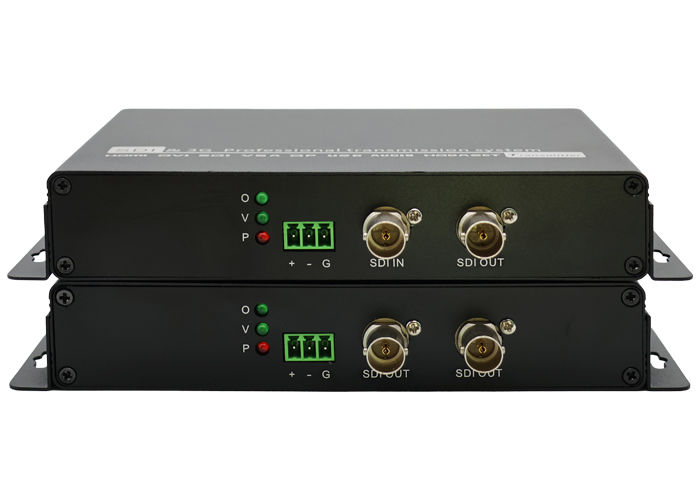

The pictures for 1-ch 3g-sdi single mode fiber extender:
