Product Details:
|
| Output Port: | DVI,HDMI | Video Amplifier Bandwidth: | 3.2G |
|---|---|---|---|
| Control Mode: | RS232,Remote,IP,button,IR | Max Resolution: | 1920*1080,1920*1080 Or 4K,3840*2160 |
| Supported Video Wall Configurations: | 2x2, 3x3, 4x4, 5x5, 6x6 | Maximum Video Resolution: | 4K |
| Output Signal Types: | HDMI, DVI, VGA, DisplayPort | Output Resolution: | 1920*1080P/60HZ |
| Highlight: | Versatile Modular Video Wall Controller |
||

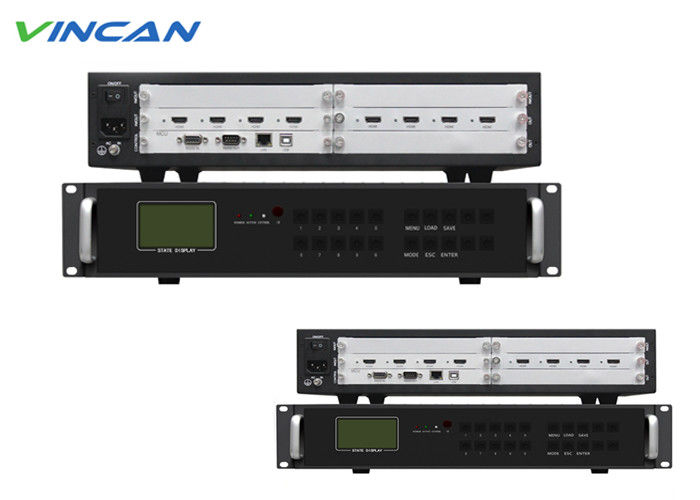

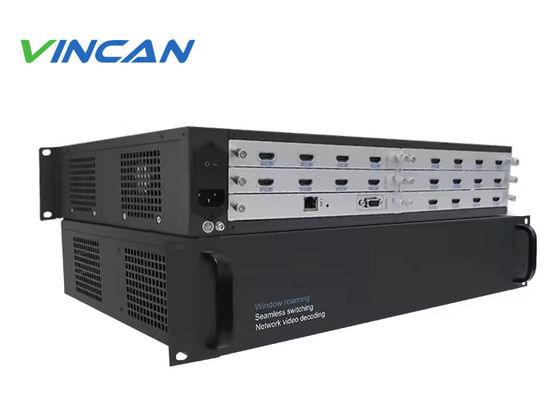

Modular Video Wall Controller is an advanced device used to manage and control large-scale video wall displays. A video wall is made up of multiple screens (such as LCD or LED panels) combined to create a large display system, widely used in commercial, educational, entertainment, and public information settings. Here’s a detailed explanation:
Modular Design: The term "modular" in a Modular Video Wall Controller refers to its design, which allows users to flexibly add or remove components as needed. This design makes it adaptable to various display requirements, accommodating different sizes and layouts according to specific user needs.
Video Signal Management: The controller is responsible for receiving, processing, and distributing multiple video signals to the various displays in the video wall. This means users can simultaneously showcase content from different sources, such as computers, cameras, or media players.

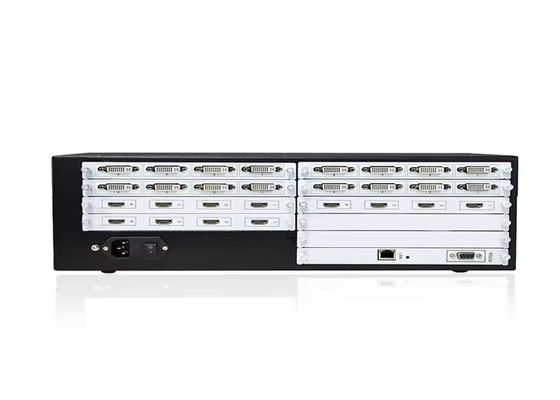

| Parameter | Specification |
|---|---|
| Input Interfaces | HDMI: 4 x HDMI 2.0 |
| DisplayPort: 2 x DisplayPort 1.4 | |
| VGA: 2 x VGA | |
| DVI: 2 x DVI-D | |
| Output Interfaces | HDMI: 8 x HDMI 2.0 (configurable) |
| DisplayPort: 4 x DisplayPort 1.4 (configurable) | |
| Ethernet: 1 x Ethernet port for network control | |
| Resolution Support | Maximum Input Resolution: Up to 8K (7680 x 4320) |
| Processing Capabilities | Video Processing: 10-bit color depth |
| Power Supply | Input Voltage: AC 100-240V, 50/60Hz |
| Dimensions | Chassis Size: 1U Rack-Mountable |
| Modularity | Expandability: Up to 16 modules in a single configuration |
Corporate Environments:The Modular Video Wall Controller is ideal for conference rooms and command centers, where it can display multiple video feeds for presentations, data analysis, and decision-making.
Public Venues: This Modular Video Wall Controller is perfect for shopping malls, airports, and public transportation hubs, where video walls can be used for advertising, information dissemination, and event promotion.
Entertainment Industry: Suitable for concerts, sporting events, and exhibitions, enhancing audience engagement with dynamic visual displays.
Educational Institutions: This Modular Video Wall Controller is used in classrooms and lecture halls for instructional purposes, live streaming, and collaborative learning experiences.
Security and Monitoring: In surveillance operations, the video wall controller allows for real-time monitoring of multiple camera feeds, ensuring effective security management.
