KVM over IP high-definition video optical fiber extender is an HDMI or DP, DVI, HDMI
KVM signal extender that is mainly IP-based and connected through optical fiber. Access
computer systems from remote USB consoles over the internal network using the
professional features of an over IP KVM solution. Supports the expansion function of 1Gbps
SFP optical fiber module. Through optical fiber connection, the transmission distance can be
extended up to 20 kilometers/40 kilometers or more. Supports independent high-definition
video signals such as HDMI or DP, DVI, HDMI, USB keyboard and mouse control signals,
USB2.0 devices (USB devices such as U disk, U KEY, printers, mobile hard disks), RS232
interface signals, LC optical fiber interface, iron Shell or aluminum alloy (two shells are
optional), the fiber optic extender integrated into the exquisite body adopts Gigabit digital
encoding technology to connect the local sending end of the device to the computer host's
HDMI or DP, DVI, HDMI and other video signals and USB keyboard Mouse signals, etc., are
connected through optical fiber jumpers to extend the multi-mode (300-500 meters)
single-mode receiving end to more than 20 kilometers.
Product features:
1.Using coding transmission technology, the image is clear and smooth with mall delay;
2.Support audio microphone signal transmission;
3.Supports USB keyboard, mouse, USB 2.0 devices (USB devices such as U disk, U KEY,
printer, mobile hard disk, etc.);
4.Single-mode single optical fiber signal interface transmission;
5.Support hot-swappable design;
6.Support high-definition video signal resolution display up to 3840*2160@30Hz;
7.Super 4 USB interface design to support the use of large-capacity USB devices.
8.10KM HDMI1.4 KVM USB fiber optic extender.
Specification:
| Specifications |
| Resolution |
3840*2160@30Hz；
1920*1080 .... common resolutions
|

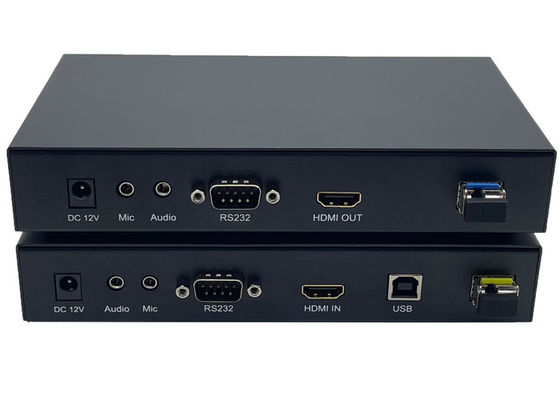

| Transmitter |
HDMI video interface *1
RS232 serial port *1 (optional function)
USB Type B port *1
Audio interface *1
Microphone interface *1
RJ45 network port *1
|
| Receiver |
HDMI video interface*1
RS232 serial port *1 (optional function)
USB Type A port *4
Audio interface *1
Microphone interface *1
RJ45 network port *1
|
| Transmission distance |
10KM |
| RS232 baud rate |
4800~115200bps |
| Device Case |
| Shell material |
Metal shell |
| Color |
Black |
| Dimension |
185mm[L]×105mm[W]×33mm[H] |
| Power supply |
Input:AC 100~240V 50/60Hz Output:DC 12V/2A (US/EU standard, CE/FCC/UL Certificate) |
| Operating temperature |
Recommended operating temperature:0~50°C |
| Storage temperature |
Storage temperature:-20~60°C |
| Relative humidity |
Humidity :0~90% RH, No condensation |
Connection topology diagram of 10KM HDMI1.4 KVM USB fiber optic extender :
