Product Details:
|
| Input Interface: | 1 - Ch HDMI1.4 ,1 - Ch DP1.2 | DP Input Resolution: | 3840x2160@60HZ |
|---|---|---|---|
| HDMI Input Resolution: | 3840x2160@30HZ | Color Depth: | 24bit, 16.77 Million Colors |
| Way To Control: | Chassis Buttons, Remote Control, RS232; | Input Voltage: | Small Chassis DC12V |
| Highlight: | DC12V Video Wall Splitter,RS232 Video Wall Splitter,CE Certified Video Wall Splitter |
||
Description:
This video wall controller lets you connect your HDMI video source to multiple HDMI displays,
with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller
as a video splitter to distribute the same HDMI signal to four displays or you can combine your
video source across four displays to create a 2x2 video wall.
The main function:
1.Supports True 4K at 60Hz,
2.Widely Compatible;
3.Easy Installation and Setup;
4.Applications 1:Create versatile 4K digital signage using multiple TVs;
5.Applications 2:allows you to combine four separate displays into one large format display;
6.4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output Video Wall Splitter.
Specification:
| name | 4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output Video Wall Splitter |
| input interface | 1-ch HDMI1.4 input ,1-ch DP1.2 input. |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |
| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output; 1 3.5mm audio left and right channel stereo, used to connect to stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power | |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| Package Size: | |
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |

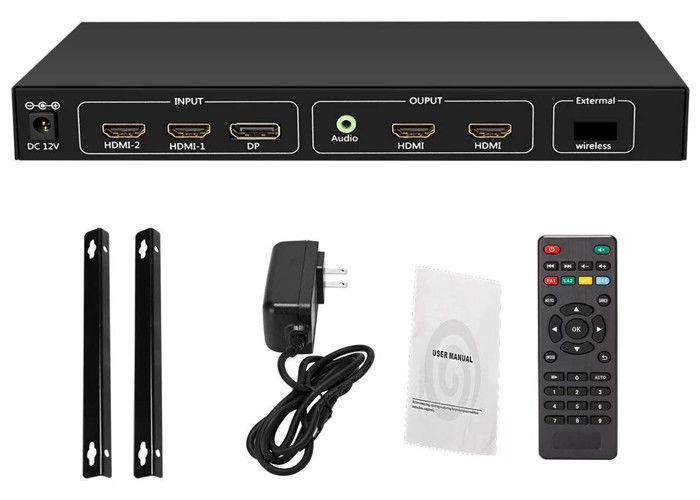

Related Pictures with 4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output Video Wall Splitter:
