Product Details:
|
| Input Interface: | 1 - Ch HDMI1.4 ,1 - Ch DP1.2 | DP Input Resolution: | 3840x2160@60HZ |
|---|---|---|---|
| HDMI Input Resolution: | 3840x2160@30HZ | Color Depth: | 24bit, 16.77 Million Colors |
| Way To Control: | Chassis Buttons, Remote Control, RS232; | Input Voltage: | Small Chassis DC12V |
| Highlight: | 1U Video Wall Controller,1ch Video Wall Controller,2U HDMI Video Wall Controller |
||
Description:
By cascading multiple multi-screen extender, it can support super-large-scale point-to-point stitching
or more screen stitching with super-large resolution without deformation or stretching.
For example, two sets of TK-M9 can form 3x6 point-to-point stitching, and the total resolution reaches 11520x3240.
The main function:
1. widely Input signal and resolution.
2. Any Stitching mode.
3. The machine includes output resolutions of 1024x768, 1280x720, 1280x800, 1600x900, 1920x1080, and 1920x1200.
4. Image 180 degree rotation function.
5. Edge masking function.
6. Infrared remote control, chassis buttons, serial port control.
7.Cascading to achieve super-resolution stitching.
8. 1 - ch 4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output video wall controller.
Specification:
| name | 1 - ch 4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output video wall controller |
| input interface | 1-ch HDMI1.4 input ,1-ch DP1.2 input. |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |
| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output; 1 3.5mm audio left and right channel stereo, used to connect to stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power | |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| Package Size: | |
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |

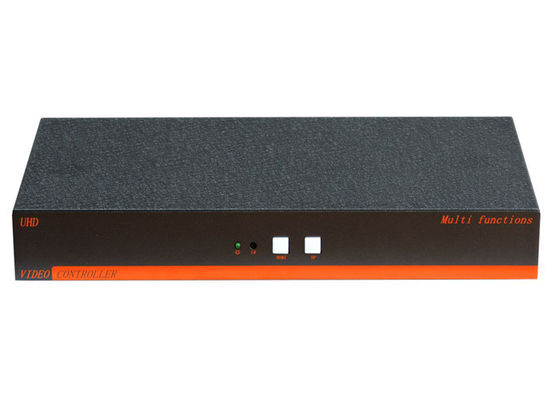

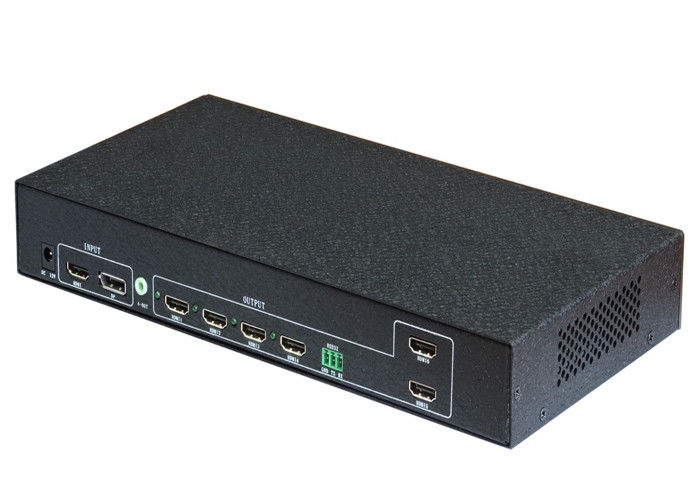

Related Pictures with 1 - ch 4K 60Hz HDMI 2.0 Video Input to 4 x 1080p Output video wall controller:
