1.Description:
This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD r
esolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal
to four displays or you can combine your video source across four displays to create a 2x2 video wall.
2.The main function:
1). MOSAIC CONFIG 2x3: 1X2,1X3,1X4,1X5,1X6,2X1,2X2,2X3,3X1,3X2,4X1,5X1,6X1.such as 1X2 mode,this is meaning line 1 and row 2.
2). MIRROR: That is the rotation of 180 degrees, a lot of LCD TV due to the narrow width of the border, a row when the wall is a row of flip upside down, through the mirror function can be individually set each screen is rotated 180 degrees.
3). INPUT SIGNAL INTERFACE: Support 1 USB, 1 HDMI, 1 VGA, 1 AV input, all inputs are embedded or bound to audio input, user can access all the signals or access to some of the signal.
4). OUT MODE: Can be set 1080P60, 720P60, 1024x768@60 three resolution output to adapt to different display devices.
5). SWITCH EASILY between multiple HDMI sources and outputs via remote control or push buttons on the unit. Supports advanced remote control options including RS232.
6). Seamless 2x3 HDMI Video Wall Controller 4K HDMI Multiviewer 1x3 1x2 2x3 2x2 2x1.
3.Specification:
| name |
Seamless 2x3 HDMI Video Wall Controller 4K HDMI Multiviewer 1x3 1x2 2x3 2x2 2x1 |
| input interface |
1-ch HDMI1.4 input ,1-ch DP1.2 input. |
| DP input resolution |
3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution |
Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |
| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output;
1 3.5mm audio left and right channel stereo, used to connect to stereo;
|
| output resolution |
1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth |
24bit, 16.77 million colors |
| way to control |
Chassis buttons, remote control, RS232; |
| Input voltage |
Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode |
Any mode within 16 stitching |
| Chassis size, weight, power |
| small case |
Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| Package Size: |
| |
| 1U chassis |
Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |
| |
| |

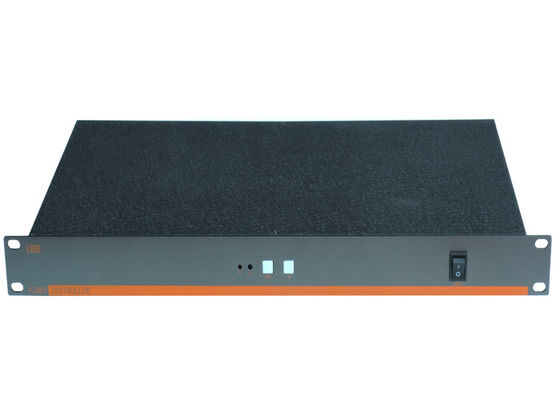

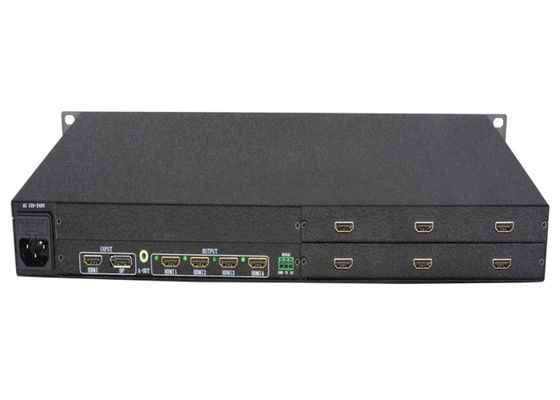

4.Related pictures with Seamless 2x3 HDMI Video Wall Controller 4K HDMI Multiviewer 1x3 1x2 2x3 2x2 2x1:
