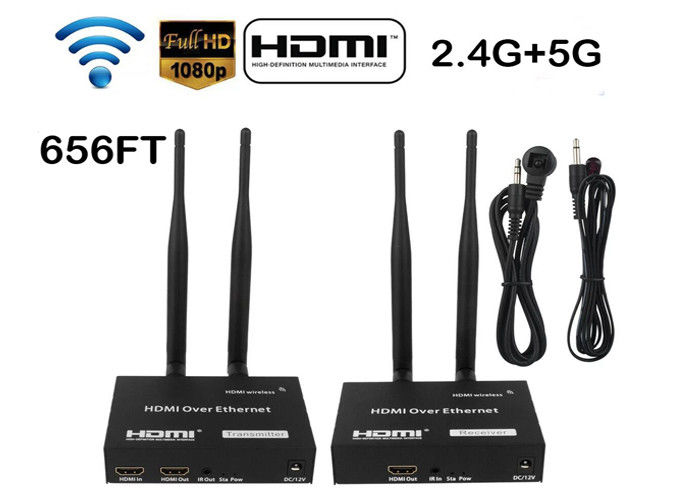

TV 660ft / 200m HDMI Wireless Transmitter And Receiver 1080P With IR Remote

1. Description:

This wireless HD adapter will give you a high-definition audio and video wireless transmission experience, which can remotely transmit HDMI high-definition audio and video content to high-definition display devices such as TVs/projectors. This product adopts standard Ethernet TCP/IP wireless transmission protocol, which has fast transmission speed and strong anti-interference ability. Support HDMI ring-out and infrared remote control remote expansion, especially suitable for meetings, training, education, home entertainment and other applications.

2. Features:

• The product consists of a transmitter and a receiver, which can transmit HDMI high-definition signals wirelessly from the transmitter to the receiver.
• The transmitter supports one HDMI ring to facilitate local source screen monitoring.
• HDMI resolution supports 480i/576i~1080P@50/60Hz, SVGA~WUXGA many common computer resolutions.
• Adopt international 2.4G/5G wireless dual-band transmission signal, the transmission speed is faster, and the anti-interference ability is stronger.
• Adopt external dual-gain antenna for ultra-long-distance transmission, and the transmission distance of open space can reach 200 meters (may be affected by the use environment).
• Support infrared remote control remote expansion, can control the source device remotely at the display end.
• Pure hardware mode, plug and play, connect to the computer to install drivers.
• Support web configuration interface, simple and easy to use.
• 660ft/200m HDMI Wireless Transmitter and Receiver 1080P Audio Video TV Receiver with IR Remote.

3. Specification:

• Support Agreement: HDMl 1.3; HDCP1.2.
• Pixel band charge: 165MHz, all digital.
• Interface bandwidth: total bandwidth 6.75Gbps.
• Maximum support resolution: 1920X1080P@60Hz.
• Interface: HDMl-A interface.
• Impedance: 100Ω.
• 660ft/200m HDMI Wireless Transmitter and Receiver 1080P Audio Video TV Receiver with IR Remote.
• Recommended HDMI maximum input: less than 5 meters, at 1920X1080P@60Hz.
• Interface: 3.5mm socket.
• Signal direction: one-way transmission.
• Signal type: digital signal.
• Input level cutting frequency: 20-60KHz.
• RF power: 13dbm.
• Wireless standard: 802.11ac.
• Signal direction: one direction.
• Wireless frequency: 2.4GHz/5GHz.
• Transmission distance: 200m.
• Power adapter: DC12V.

4. Package Include:

• 1 x HDMI extender transmitter
• 1 x HDMI extender receiver
• 2 x 2.4G/5G dual frequency antenna
• 2 x Power adapters
• 1 x Infrared transmitter
• 1 x Infrared receiver
• 1 x English Manual

5. Connection and diagram:
