Product Details:
|
| Video Standards: | HDMI 1.3; HDCP 1.2 | Video Compressed Format: | H.264 |
|---|---|---|---|
| Resolution: | Max: 1920X1080p@60Hz | Connector: | HDMI-A |
| WIFI Transmission Distance: | 200 M | Product Name: | 50 - 200 Meters 3D Full HD 1080P IR WIFI HDMI H.264 Wireless Extender |
| Highlight: | 50 Meters HDMI Wireless Extender,200 Meters HDMI Wireless Extender,CE H.264 HD Video Extender |
||

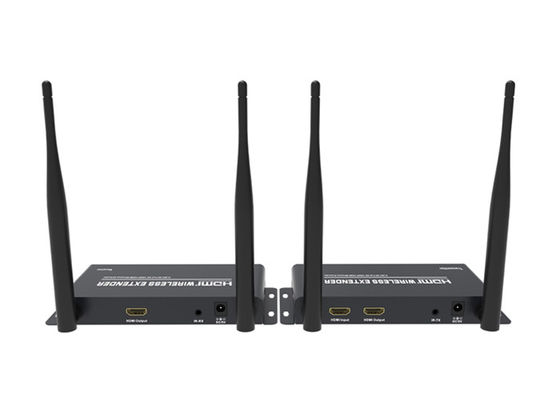

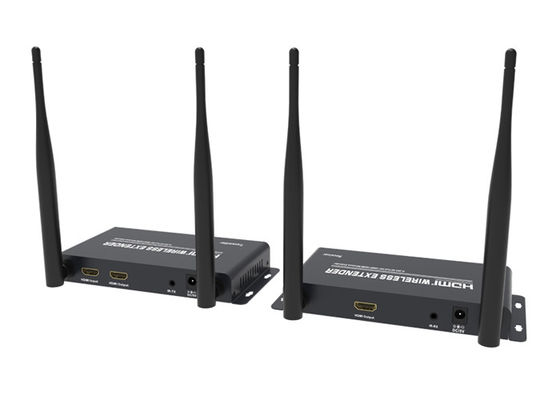

1.0 Introduction:
HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission
HD audio and video signal, at the same time, with infrared extensions to make remote control more
convenient.The equipment has excellent image processing and transmission capacity, makes signal
transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
2.0 Features:
1. HDMI video and audio transmission via wireless WIFI, up to 200 meters;
2. HDMI 1.3 compatible;
3. In accordance with standard HDCP1.2 ,high-bandwidth digital content
protection technology;
4. HD video signal resolution up to 1920x1080@60Hz;
5. Support transmitter with HDMI Loopout;
6. Special format is to compress and decompress video,effectively improve
the transfer efficiency,to ensure that the playback fluency;
7. Support external remote infrared extension, easy to operate the remote
Device;
8. Able to automatically identify and configure a variety of display mode;
9. Built-in automatic balance system, the picture is fluent, clear and stable;
10. The built-in ESD electrostatic protection circuit, comprehensive security
protection system;
11. Simple and convenient installation, plug and play, do not need to set up.
12.50 - 200 meters 3D Full HD 1080P IR WIFI HDMI H.264 Wireless Extender
3.0 Packaging accessories:
1. HDMI transmitter------------------------------------------------1 Pcs
2. HDMI receiver ---------------------------------------------------1 Pcs
3. 12V DC Power Adaptor----------------------------------------2 Pcs
4. IR RX Cable ------------------------------------------------------1 Pcs
5. IR TX Cable ------------------------------------------------------1 Pcs
6. User Manual------------------------------------------------------1 Pcs
4.0 Technical parameters:
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Compressed format | H.264 | |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | Max: 1920X1080p@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Recommend HDMI maximum input/output range | Less than 5 meters, when 1920 x1080p @ 60 Hz | |
| IR | Interface | 3.5mm Stereo audio socket |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 20-60kHz | |
| WIFI | Radio Frequency power | 13dbm |
| Wireless standards | 802.11ac | |
| signal direction | Unidirectional | |
| Radio frequency | 5.8GHz | |
| Transmission distance | 200M | |
| Other | Power | Adapter:DC 5V |
| Power dissipation | MAX 7W | |
| Temperature | Operating:-5℃ ~ +70℃ | |
| Humidity | Operating:5% ~ 90% | |
| Size | 170*82*22mm | |
| Warranty | 1 year free warranty | |
| Product name | 50 - 200 meters 3D Full HD 1080P IR WIFI HDMI H.264 Wireless Extender | |
5.0 Connection diagram:
1 TO 1
1 TO 4
