Product Details:
|
| Video Color Format: | 24bit/30bit/36bit | Support Audio Format: | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|---|---|---|---|
| Input/Output TMDS Signal: | 0.5-1.5Vp-p(TTL) | Connector: | 3.5mm Audio Jack |
| Protocol: | Supports USB Keyboard And Mouse | Resolution: | Up To 1080P@60Hz |
| Highlight: | 4KX2K HDMI UTP Extender,60Hz HDMI UTP Extender,CAT UTP HD Video Extender |
||

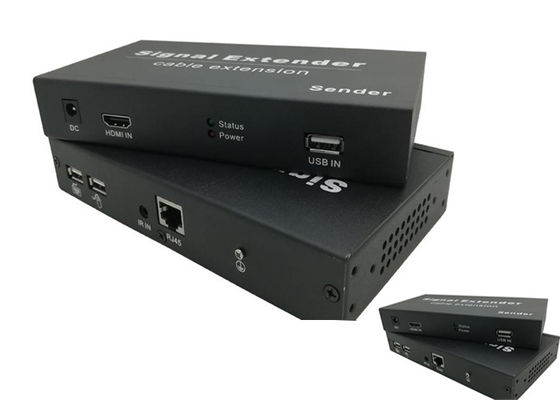

120 M - 200 M 1080P@60Hz 4KX2K HDMI HDCP IR & USB KVM CAT UTP Extender
1. PRODUCT FEATURE:
1. 120m HDMI KVM extendervia a singleCAT5e/6 cable;
2. Resolution up to 1080P@60Hz;
3. Datarate up to 2.25Gbps;
4. 8KVESDprotection;
5. Support adaptive equalization and signal enhancement processing;
6. Support keyboard and mouse pass-through and control the computers or other media displayequipment;
7. Via the router or switch enable one transmitter to multiple receivers;
8. 120 M - 200 M 1080P@60Hz 4KX2K HDMI HDCP IR & USB KVM CAT UTP Extender
2. Specifications :
| Function | DVI Input | Sender:One way(HDMI,USB,IR) |
| DVI Output | Receiver:One way(HDMI,2*USB,IR) | |
| Range | 200m | |
| Video & Parameters | Input | HDMI |
| Output | HDMI | |
| HDMI Version | HDMI1.3 | |
| HDCP Version | HDCP1.2 | |
| Resolution | 1920x1080@60Hz | |
| Video Color Format | 24bit/30bit/36bit | |
| Support audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | |
| Input/Output TMDS signal | 0.5-1.5Vp-p(TTL) | |
| Input/Output DDC signal | 5Vp-p(TTL) | |
| USB Features | Connector | USB Type A |
| Protocol | Supports USB keyboard and mouse | |
| IR Feature | Connector | 3.5mm audio jack |
| Signals | IR signals from remote control | |
| Size | Dim(LxWxH) | Sender: 170mm x 93mm x 30mm Receiver: 170mm x 93mm x 30mm |
| Net Weight | 1Kg | |
| Material | Steel | |
| Color | Black | |
| Power | Operating Voltage |
Input:AC110V-220V,50/60HZ Output:DC9V/2A |
| Sender Power | <5W | |
| Receiver Power | <4W | |
| Condition | Operating Temp | -15℃-55℃ |
| Storage Temp | -40-80℃ | |
| Humidity | 0-95% (No condense) | |
| Product name | 120 M - 200 M 1080P@60Hz 4KX2K HDMI HDCP IR & USB KVM CAT UTP Extender | |
3. Using Application diagram for 120 M - 200 M 1080P@60Hz 4KX2K HDMI HDCP
IR & USB KVM CAT UTP Extender:
①Power Indicator
②Signal Indicator
③Reset
④Network Cable
⑤Power Supply
⑥HDMI In
⑦HDMI Out
⑧USB In
⑨Keyboard and Mouse
