Product Details:
|
| Input: | Sender：One Way（HDMI、USB、IR） | Output: | Receiver：One Way（HDMI、2*USB、IR) |
|---|---|---|---|
| Range: | 200 M | HDMI Version: | HDMI1.3 |
| HDCP Version: | HDCP1.2 | Resolution: | 1920x1080@60Hz |
| Highlight: | RoHs USB Video Extender,1080P USB Video Extender,200m HD Video Extender |
||
200 m 1080P 4K HDMI KVM USB video Extender via a single cat5e/6 cable
1. Product Introduction

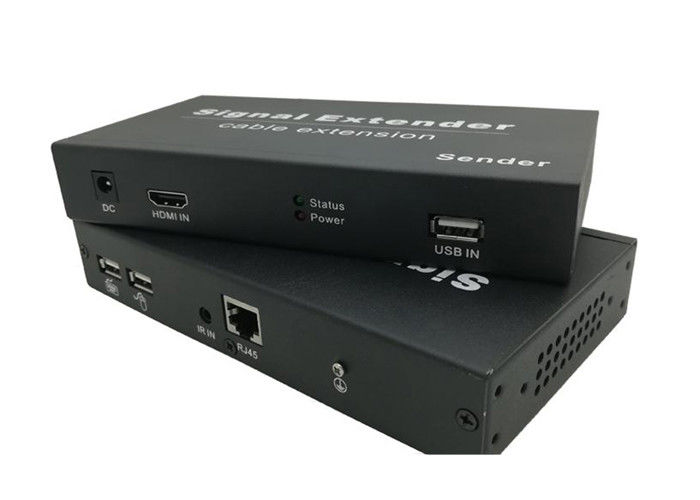

The device includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo),
which can transmit HDMI, IR (infra-red control signals), USB over a single cat5e/6/7 cable to remote monitor or TV.
The USB output supports wired keyboard and mouse, works with DVR/NVR, etc.
2. Features:
1. Supports HDMI1.3, HDCP1.2, all standard resolutions under 1920x1080@60Hz.
2. Up to 200m range for point to point connection, the distance can be extended.
via 100/1000M network switch, each switch can provide 100m extra distance.
3. Supports DVI-D with HDMI to DVI gender cable.
4. Supports IR signals transmission too (optional).
5. Plug & play, no software or driver.
6.200 m 1080P 4K HDMI KVM USB video Extender via a single cat5e/6 cable.
3. Specifications for 200 m 1080P 4K HDMI KVM USB video Extender via a single cat5e/6 cable :
| Function | DVI Input | Sender:One way(HDMI,USB,IR) |
| DVI Output | Receiver:One way(HDMI,2*USB,IR) | |
| Range | 200m | |
| Video & Parameters | Input | HDMI |
| Output | HDMI | |
| HDMI Version | HDMI1.3 | |
| HDCP Version | HDCP1.2 | |
| Resolution | 1920x1080@60Hz | |
| Video Color Format | 24bit/30bit/36bit | |
| Support audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | |
| Input/Output TMDS signal | 0.5-1.5Vp-p(TTL) | |
| Input/Output DDC signal | 5Vp-p(TTL) | |
| USB Features | Connector | USB Type A |
| Protocol | Supports USB keyboard and mouse | |
| IR Feature | Connector | 3.5mm audio jack |
| Signals | IR signals from remote control | |
| Size | Dim(LxWxH) | Sender: 170mm x 93mm x 30mm Receiver: 170mm x 93mm x 30mm |
| Net Weight | 1Kg | |
| Material | Steel | |
| Color | Black | |
| Power | Operating Voltage |
Input:AC110V-220V,50/60HZ Output:DC9V/2A |
| Sender Power | <5W | |
| Receiver Power | <4W | |
| Condition | Operating Temp | -15℃-55℃ |
| Storage Temp | -40-80℃ | |
| Humidity | 0-95% (No condense) | |
| Product name | 200 m 1080P 4K HDMI KVM USB video Extender via a single cat5e/6 cable | |
4.Using Application diagram:
