HDMI 1.4 Inputs with 9 HDMI Outputs HDMI video wall controller for TV Splicing,
Support 4x2,4x1,2x3,2x4,1x8 Display
Description:
The HDMI 1.4 Inputs with 9 HDMI Outputs HDMI video wall controller support
3840*2160@60Hz HDMI 2.0, 3840*2160@30Hz HDMI 1.4,
and 3840*2160@60Hz DP 1.2 inputs ,8 HDMI outputs support each display with resolution
1920*1080/60Hz,Multiple splicing mode 4x2,4x1,3x1,3x2,2x1, 2x2, 2x3,2x4,1x2, 1x3, 1x4, 1x5,
1x6,1x7,1x8 display, support 180 degree rotation;Support remote control and panel buttons;
Advanced Features: adopted advanced DSP image processing technology,built-in bezel correction,
image synchronization, multi-level cascading. Ultra-low power consumption and fanless design.
Pure hardware frame, no CPU, no memory, system stability, no system crashes.
Specification:
| Name |
Specification |
| input interface |
1-ch HDMI1.4 input,1-ch DP1.2 input |
| DP input resolution |
3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution |
Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |

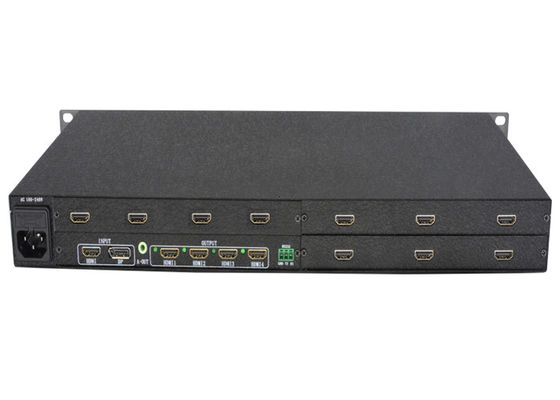

| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output;
1 3.5mm audio left and right channel stereo, used to connect to stereo;
|
| output resolution |
1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth |
24bit, 16.77 million colors |
| way to control |
Chassis buttons, remote control, RS232; |
| Input voltage |
Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode |
Any mode within 16 stitching |
| Chassis size, weight, power |
| small case |
Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| Package Size: |

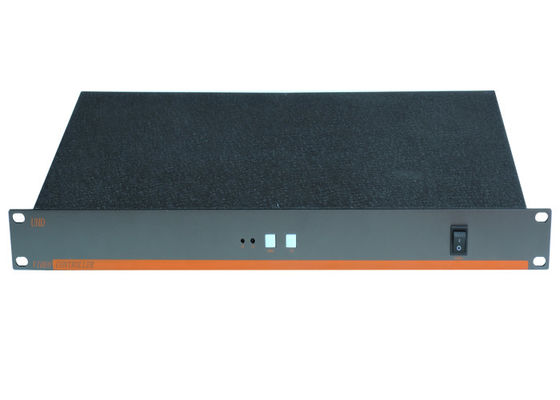

| 1U chassis |
Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |
| Product name |
HDMI 1.4 Inputs with 9 HDMI Outputs HDMI video wall controller for TV Splicing, Support 4x2,4x1,2x3,2x4,1x8 Display |
Advantage for HDMI 1.4 Inputs with 9 HDMI Outputs HDMI video wall controller for TV Splicing, Support 4x2,4x1,2x3,2x4,1x8 Display :
1.Input signal and resolution;
2.Stitching mode;
3.Output resolution;
4.Image 180 degree rotation function;
5.Edge masking function;
6.Infrared remote control, chassis buttons, serial port control;
7.Cascading to achieve super-resolution stitching;
Application Drawings for HDMI 1.4 Inputs with 9 HDMI Outputs HDMI video wall controller:
