Product Details:
|
| Product Name: | 2x2 HDMI 4K Video Wall Controller | Input Interface: | 1 Channel DP1.2 And 1 Channel HDMI1.4 Input |
|---|---|---|---|
| Input Resolution: | 5760x3240@30HZ, 5760x1080@60HZ ... | A Variety Of Output Resolution Options: | Supported |
| Wall Modes: | 1x2, 1x3, 2x1, 2x2 | 180-degree Flip And Edge Shielding Of Any Image: | Supported |
| Highlight: | FCC Video Wall Controller,5760x3240 Video Wall Controller,4K 60Hz HDMI Video Wall Controller |
||

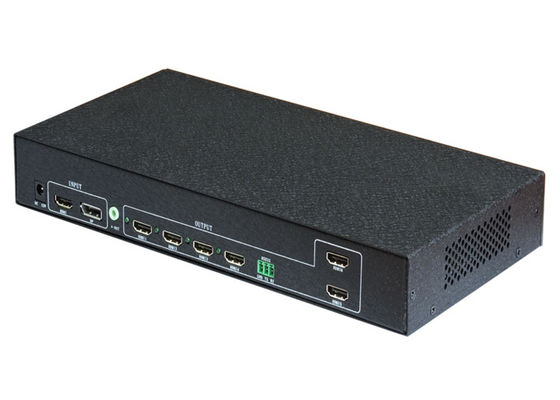

4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs 2x2 HDMI Video Wall Controller
Product Description:
2x2 HDMI 4K Video Wall Controller is also called super-resolution splicing processor, point-to-point splicing processor.
The main feature of the product is that it can support a resolution input of more than 4K, and realize
point-to-point lossless, equal-scale, non-distorted, and non-stretched display of images.
Specification:
| name | Specification |
| input interface | 1-ch HDMI1.4 input,1-ch DP1.2 input |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |
| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output; 1 3.5mm audio left and right channel stereo, used to connect to stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power | |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |
| Product name | 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs 2x2 HDMI Video Wall Controller |
Application for 2x2 HDMI 4K Video Wall Controller :
1,Game field
2.Exhibition display field
3.Big data field
Product Topology for HDMI 4K Video Wall Controller :
