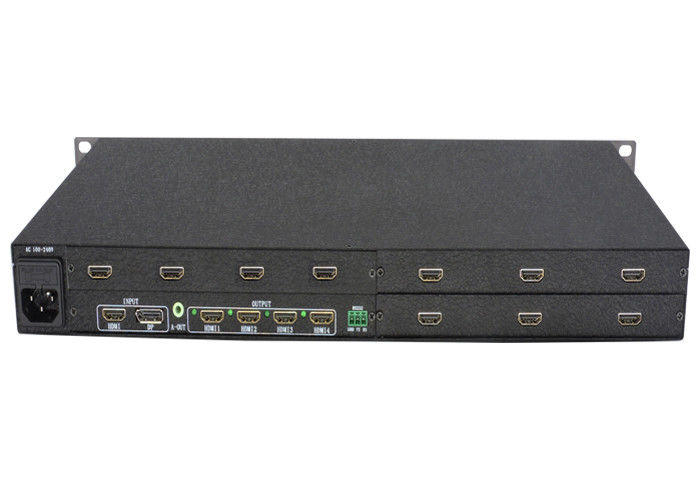

Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input

Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input
Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input
Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input

Large Image :  Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input

Product Details:
Place of Origin: Mainland China
Brand Name: VINCAN
Certification: CE,FCC and RoHs
Model Number: WL-TWK19
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box and standard export package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Contact Now

Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input

Description
1 U Machine Size: 440mm (length) X 243mm (width) X 45mm (height) 1 U Machine Weight: 3.4KG
Small Case Machine Size: 302mm (length) X 152mm (width) X 40mm (height) Small Case Weight: 1.3KG
Display Mode: Any Mode Within 16 Stitching Product Name: 3x3 HDMI 4K Video Wall Controller
Highlight:

1080p Outputs 3x3 Video Wall Controller

,

3x3 HDMI 4K Video Wall Controller

,

HDMI Video Wall Controller FCC

4K 60Hz HDMI 2.0 Video Input & Nine 1080p Outputs 3x3 HDMI Video Wall Controller

Description:

By cascading multiple multi-screen extender,3x3 HDMI Video Wall Controller can support

super-large-scale point-to-point stitching or more screen stitching with super-large resolution

without deformation or stretching. For example, two sets of TK-M9 can form 3x6 point-to-point stitching,

 and the total resolution reaches 11520x3240.



Specification:

Name Specification
input interface 1-ch HDMI1.4 input,1-ch DP1.2 input
DP input resolution 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution;
HDMI input resolution Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution;
Output Interface

2 to 16 HDMI ports output, support audio and video synchronous output;

1 3.5mm audio left and right channel stereo, used to connect to stereo;
output resolution

1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,

Resolution can be switched;
color depth 24bit, 16.77 million colors
way to control Chassis buttons, remote control, RS232;
Input voltage Small chassis DC12V; 1U and 2U chassis AC110-220V;
display mode Any mode within 16 stitching
Chassis size, weight, power
small case Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG
Package Size:
1U chassis Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG
Product name 4K 60Hz HDMI 2.0 Video Input & Nine 1080p Outputs 3x3 HDMI Video Wall Controller



Advantage for 3x3 HDMI Video Wall Controller :

Support 1 channel HDMI1.4 signal, 1 channel DP1.2 input, HDMI signal only supports up to 3840x2160@30HZ input. According to different splicing modes, DP input can choose a variety of different resolution inputs to realize point-to-point splicing, such as horizontal screen 1x3 mode 5760x1080@60HZ, vertical screen 1x3 mode 3240x1920@60HZ, horizontal screen 3x3 mode 5760x3240@30HZ. Some special stitching modes can also realize custom resolution to achieve equal-scale, non-distorted, and non-stretched display, as follows: Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input 0
The product uses a modular design, a single machine can achieve a maximum of 16 splices, and a single machine can be set within 16 splices such as 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1, etc. of any stitching mode. Customize different chassis according to different splicing scales, use a small chassis for 2 to 6 splicing, use a standard 1U chassis for 7 to 13 splicing, and use a standard 2U chassis for 14 to 16 splicing. none picture
Supports multiple output resolution options to achieve better compatibility with different display terminals, such as LCD screens, projectors with different resolutions, etc. The machine includes output resolutions of 1024x768, 1280x720, 1280x800, 1600x900, 1920x1080, and 1920x1200. none picture
Compared with ordinary splicing products, TK-UHD6P has a 180-degree mirror flip function for each single display unit. When users use ordinary LCD TVs to splicing, they can turn 180 degrees to the previous row of LCD TVs, thereby greatly reducing the LCD splicing gap and reducing the image distortion caused by excessive edge seams. Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input 1
All splicing display units have a certain physical frame gap. Without the edge shielding function, the image will be visually pulled apart, which feels very unnatural; the image after edge shielding is not deformed or stretched, and the vision is more natural. lifelike. As shown below, compare the pictures before and after edge masking: Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input 2
The product can control the machine through remote control settings, chassis, serial port connection to the host computer software, etc. none picture
Through the use of multiple Themulti-screen extender and multi-computer multi-head graphics cards, a set of splicing walls with ultra-high resolution is formed. Nine 1080p Outputs 3x3 Video Wall Controller 4K 60Hz HDMI 2.0 Input 3
