Seamless HDMI Matrix Switcher

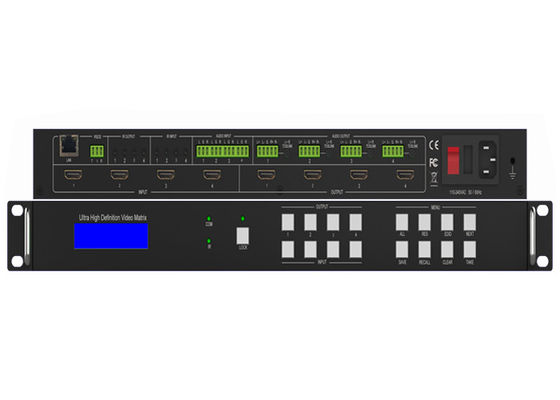

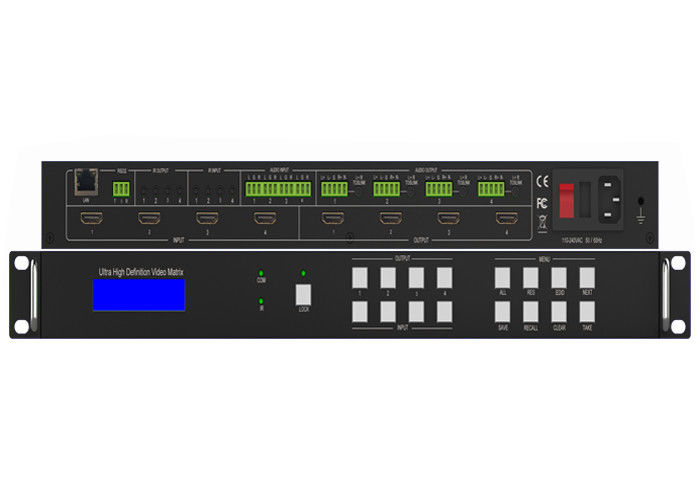

Large Image : Seamless HDMI Matrix Switcher

Product Details:

Place of Origin:	Mainland China
Brand Name:	VINCAN
Certification:	CE,FCC and RoHs
Model Number:	WLVM4K44

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton box and standard export package for 18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix with wall function
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Seamless HDMI Matrix Switcher

Description

HDMI Compliance:	HDMI 2.0	HDCP Compliance:	HDCP 2.2
Video Bandwidth:	18Gbps	Video Resolution:	Up To 4K60 4:4:4
Weight:	5 Kg	Power Supply:	AC 110 - 240V
Power Consumption:	60W (Max)	Product Name:	18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix With Wall Function
Highlight:	Seamless HDMI Matrix Switcher , HDMI Matrix Switcher 18Gbps , 60Hz HDMI Matrix Switcher

18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix with wall function

1. Introduction

The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays.

Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio

matrix. IR matrix routing follows the video routing. Audio extract and insert are supported.

The product supports CEC management and strong video wall processing.

2. Features

1. HDMI 2.0 and HDCP 2.2 compliant;

2. Support 18 Gbps video bandwidth;

3. Support video resolution up to 4K60 4:4:4;

4. Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2;

5. Support seamless switching, video wall function;

6. Support CEC management;

7. Support audio matrix and IR matrix function;

8. Support external L/R audio insert on HDMI stream;

9. Support EDID management;

10. Support front panel, RS232, TCP/IP (LAN 10M/100M) control;

3. Package Contents

①1 x 4x4 seamless UHD Matrix

②1 x AC Power Cord

③1 x Matrix IR Remote

④4 x IR Receiver cable (1.5 meters)

⑤ 4 x IR Blaster cable (1.5 meters)

⑥1 x 3-pin Phoenix Connector

⑦1×CAT6 Cable

⑧1× USB to RS232 Cable

⑨1× User Manual

4. Specifications

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K60 4:4:4
Color Space	RGB, YCbCr 4:4:4/4:2:2
HDMI Amplitude	T.M.D.S +/- 0.4Vpp
Differential Impedance	100±15ohm
ESD Protection	Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
RS232/Ethernet Control
Baud rate and Protocol	Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking
Ethernet	IE10.0+,HTML5
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	430mm (W)×220mm (D)×44mm (H)
Weight	5 kg
Power Supply	AC 110 - 240V
Power Consumption	60W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	"-20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity	10%~50% RH (non-condensing)
Product name	18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix with wall function

5. RS232/LAN Control Connection of the 18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz

4:4:4 Matrix with wall function:

5.1 RS232 Control Connection :

5.2 Network Control Connection :

The product also supports Network control. Connect the LAN port of the product to a PC via an UTP

cable, as shown in the following figure:

The product supports RS232 control. Connect the RS232 port of the product to a PC via a RS-232 to

USB cable, as shown in the following figure:

5.3 Network Control Connection :

The product also supports Network control. Connect the LAN port of the product to a PC via an UTP

cable, as shown in the following figure:

6. Control via Web

The built-in Web GUI interface provides only basic control of the matrix switcher and access

to the network settings. The following will be displayed when the web interface is access

each time:

The default User Name is: *****

The default Password is: *****

After entering the User Name and Password, an interface similar to the following will be

displayed:

IP Config

The IP Config tab is used to change the IP settings of the matrix switcher. Enter any necessary

changes and click “Save” to program the switcher to the new settings, or click “Cancel” to

reject the changes.
