Product Details:
|
| Power Supply: | Redundant Power Supply 110-220VAC, 50/60Hz | Consumption: | 12 W Every Channel |
|---|---|---|---|
| Serial Control Interface: | RS-232,9-pin Female, Type-D | Baud Rate: | 115200 |
| Pin Configuration: | 2=TX,3=RX,5=GND | Product Name: | 8 In 8 Out Deface 4k HDMI Video Lcd Wall Controller 3x3 1x2 1x3 2x1 3x1 Video Wall Controller 2x2 |
| Highlight: | RS232 Interface LCD Video Wall Controller,2x2 LCD Video Wall Controller,1x2 HDMI Video Wall Controller |
||

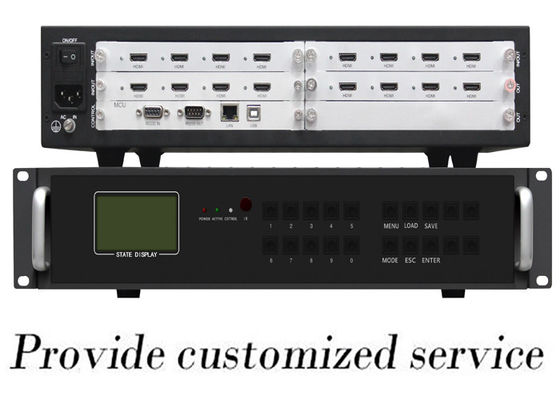

8 In 8 Out Deface 4k HDMI Video Lcd Wall Controller 3x3 1x2 1x3 2x1 3x1 Video Wall Controller 2x2
Description:
Our range of video wall display processors provide unsurpassed reliability, versatile capabilities, and user-friendly features:
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | 8 In 8 Out Deface 4k HDMI Video Lcd Wall Controller 3x3 1x2 1x3 2x1 3x1 Video Wall Controller 2x2 |
Using application show:

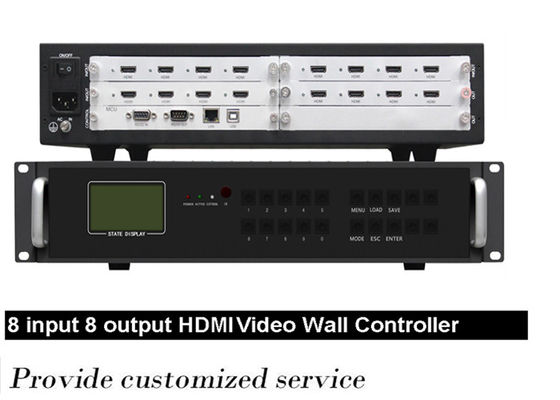

8 In 8 Out Deface 4k HDMI Video Lcd Wall Controller 3x3 1x2 1x3 2x1 3x1 Video Wall Controller 2x2
