Product Details:
|
| Composite VIDEO Input: | BNC Female | VGA Input Output: | 15 Pin HD D-Sub Female |
|---|---|---|---|
| DVI Output: | 24+5 Or 24+1 Standard Female | AUX RS-232: | 9-pin D-Sub Female |
| Main RS-232: | 9-pin D-Sub Female | Product Name: | Multi Format Lcd Video Wall Controller 2x2 , 1x2 , 3x3 Video Wall Control Systems |
| Highlight: | LCD Video Wall Controller 1x2,LCD Video Wall Controller 3x3,BNC Female HDMI Video Wall Controller |
||

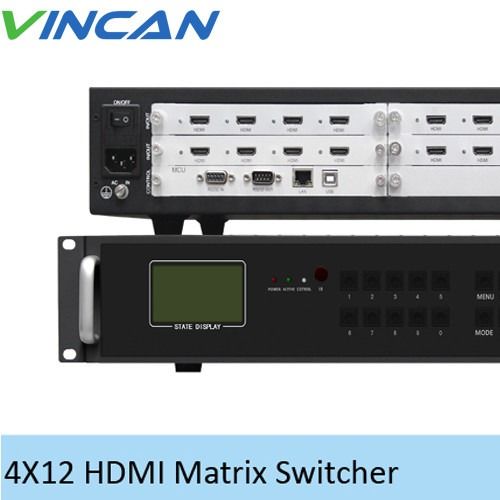

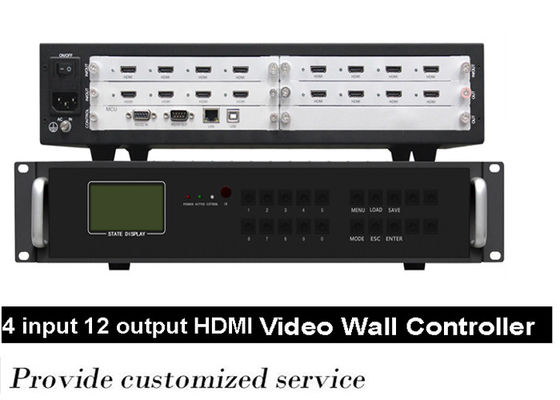

Multi Format Lcd Video Wall Controller 2x2 , 1x2 , 3x3 Video Wall Control Systems
Description:
Seamless switching for distribution of any of the 4 input sources on any of the 4 output displays simultaneously,
4 Inputs & 4 Outputs. Perfect Professional Distribution Product, ideal for 4K Blu Ray Players, Game Consoles,
Media Players, Satellite Receivers, Computers, Laptops, and Other Sources.
MULTIPLE SPLICING MODES: Multiple Display Modes - 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 and 1x4 Splitter Mode
(Display the same source on all 4 TVs)
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | Multi Format Lcd Video Wall Controller 2x2 , 1x2 , 3x3 Video Wall Control Systems |
Using application show:
Multi Format Lcd Video Wall Controller 2x2 , 1x2 , 3x3 Video Wall Control Systems
