Product Details:
|
| Chassis: | 1 U ,2U,3.5 U,7U,12.5U | 2U In/out Card Slots: | 4 |
|---|---|---|---|
| 2U Weight: | 11KG | Dimension (L)*(W)* (H)cm (2 U): | 60*54*20 |
| Control Communication Method: | Support TCP Network Control And Serial Port Control; Support RS232 And RS485 Loop Out | Product Name: | 4 In 8 Out HDMI Video Wall Controller 4x4 , 2x4 Hdmi Video Wall Processor |
| Highlight: | TCP HDMI Video Wall Controller,HDMI Video Wall Controller 4x4,2x4 HDMI Video Wall Processor |
||

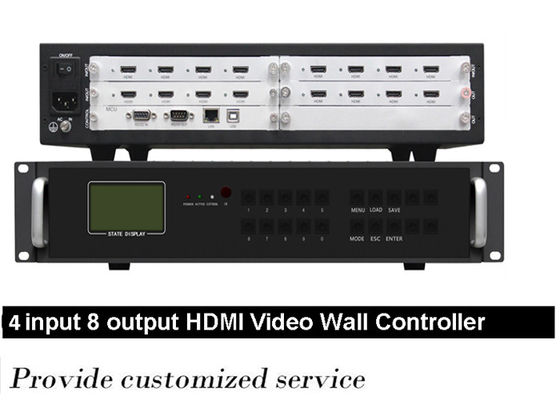

4 In 8 Out HDMI Video Wall Controller 4x4 , 2x4 Hdmi Video Wall Processor
Description:
This device easily lets you take one HDMI source (Blu Ray Player, Computer, Laptop, Media Player,
Gaming Console) and divide on to 4 or 8 TV Display Screens simultaneously.
PLUG & PLAY - No extra software needed or Internet Required, Input with resolutions up to 4K/60Hz YUV
4:4:4,18GBPS, YUV 4:4:4, CEC, HDCP2.2.
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | 4 In 8 Out HDMI Video Wall Controller 4x4 , 2x4 Hdmi Video Wall Processor |
Using application show:
4 In 8 Out HDMI Video Wall Controller 4x4 , 2x4 Hdmi Video Wall Processor
