Product Details:
|
| Ethernet Control Speed: | Self-adaptive 10M Or 100M,Full Duplex Or Half Duplex | Working Hours: | 7 Days X 24 Hours |
|---|---|---|---|
| Ethernet Control Port: | RJ-45 Female Ports, TCP/IP Protocol | Serial Port Architecture: | 2=TX,3=RX,5=GND |
| Baud Rate: | 115200 | Product Name: | 4 In 4 Out HDMI 4K Video Wall Controller With 2x2 Video Wall Using For 9 Screens |
| Highlight: | 2x2 4K Video Wall Controller,RJ45 4K Video Wall Controller,1920x1200 HDMI Video Wall Controller |
||

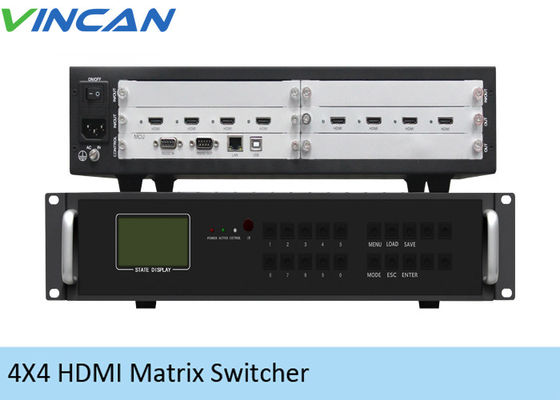

4 In 4 Out HDMI 4K Video Wall Controller With 2x2 Video Wall Using For 9 Screens
Description:
The main function of this 4K Video Wall Controller is to display a 3840*2160 Ultra HD 4K image spread across 4 Displays
in the default configuration of 2x2 to create a gigantic eye catching Video Wall that is sure to catch the attention of anyone
who sees it.
The 4K Video Wall Controller uses the DSP+FPGE advanced image processing technology and along with the Max HDMI
input signal of HDMI 2.0 (HDCP2.2) 3840x2160@60HZ, you are able to view fast motion dynamic pictures with no delay or
frame lost giving you a crisp clear image that is sure to impress.
This 4K Video Wall Controller is ideal for environments where superior performance and crisp clear high resolutions are required
to display your video content / digital signage over many displays in large format.
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | 4 In 4 Out HDMI 4K Video Wall Controller With 2x2 Video Wall Using For 9 Screens |
Using application show:

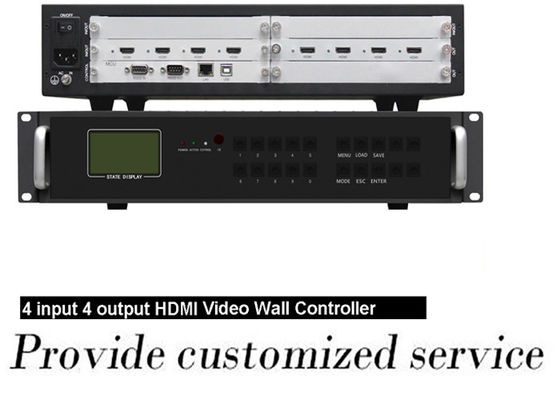

4 In 4 Out HDMI 4K Video Wall Controller With 2x2 Video Wall Using For 9 Screens
