Product Details:
|
| Inputs (optional): | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video | Input Resolution: | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, Compatible With Custom Ultra-high Resolution |
|---|---|---|---|
| Output Signal: | DVI/VGA Output | Output Resolution: | 1920*1200/60HZ (compatible With Standard Resolution ) |
| Power Supply: | Dual Power Supplies 100AC~240VAC,50/60Hz, More Trustable Hot-swappable Power Supply Working Mode, Internationally Self-adaptive Power | Product Name: | Movie 2x2 3x3 4K Hdmi Video Wall Controller And Processor 1x3 4x4 |
| Highlight: | 1x3 HDMI Video Wall Controller,4x4 HDMI Video Wall Controller,DVI Output HDMI Video Wall Processor |
||

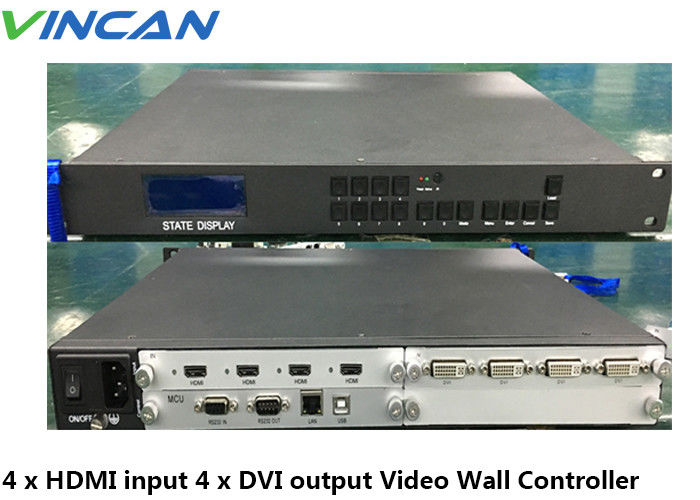

Movie 2x2 3x3 4K Hdmi Video Wall Controller And Processor 1x3 4x4
Description:
Movie 2x2 3x3 4K Hdmi Video Wall Controller And Processor is a high performance video processing workstation
with pure hardware architecture for spectacular video wall displaying which can be employed in fields including
education and research, government announcement, information publishing, exhibition and show, controlling and
commanding center, security monitoring, etc.
Technical Parameters:
| HD digital video wall processor | |
| Description | Up to sixteen video windows per display channel (Optional) |
| Inputs (Optional) | DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video |
| Input resolution | XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution |
| Output Signal | DVI/VGA output |
| Output resolution | 1920*1200/60HZ (compatible with standard resolution ) |
| system control software | ApplicationPro dedicated control software |
| Power | Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power |
| consumption | 12w per channel |
| working temperature | -20℃——60℃ |
| working humidity | 5-95% |
| Chassis size | 4U/6U/10U/15U standard rackmount chassis |
| Serial port | RS-232, 9 pin, D-type connector |
| Baud rate | 115200 |
| Serial port architecture | 2=TX,3=RX,5=GND |
| Ethernet control port | RJ-45 female ports, TCP/IP protocol |
| Ethernet control speed |
Self-adaptive 10M or 100M, full duplex or half duplex |
| Working hours | 7 days x 24 hours |
| Product name | Movie 2x2 3x3 4K Hdmi Video Wall Controller And Processor 1x3 4x4 |
Using application show:
Movie 2x2 3x3 4K Hdmi Video Wall Controller And Processor 1x3 4x4
